Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Categories CNC Glass Cutting Machine
Brand Name: LIJIANG
MOQ: Negotiation
Price: Negotiable
Certification: CE
Place of Origin: China
Name: Automatic glass cutting machine
cutting precision: ≤±0.30mm
max.cutting size: 3660×2750mm
min.cutting size: 100×100mm
glass thickness : 3~19mm
cutting speed: max100m/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

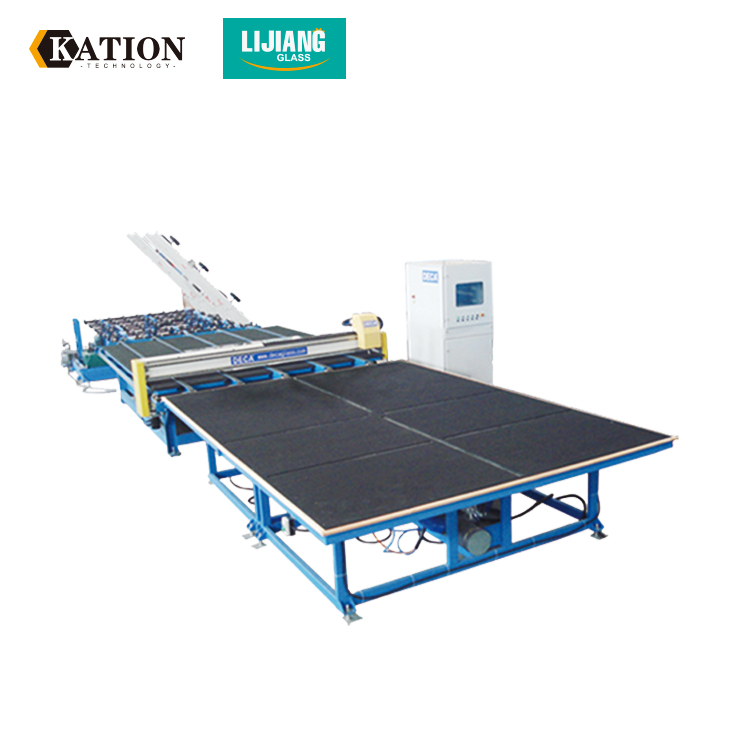

Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Automatic Glass cutting machine used in hollow glass production line


Automatic Cutting table


Automatic glass cutting machine consists of chassis mechanism, beam mechanism, worktable mechanism, cutting knife mechanism, conveying mechanism, photoelectric scanning positioning mechanism and electrical control system.


Automatic glass cutting machine working principle


Automatic glass cutting machineis to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control, cut the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.


technical parameter

cutting precision≤±0.30mm
max.cutting size3660×2750mm
min.cutting size100×100mm
glass thickness3~19mm
cutting speedmax100m/min
working table height930±25mm
cutting table height4710×3250×930mm
cutting table dimension1500kg
loading table transport speed40m/min
loading table tilting speed7m/min
loading table forward distance1000mm
loading table max.absorb size3660×2750mm
loading table min.absorb size1800×1800mm
loading table dimension (odd station)6000×3900×930mm
max. thickness of glass packing800mm
min.glass nog height240mm
breaking table dimension4200×3000×930mm
