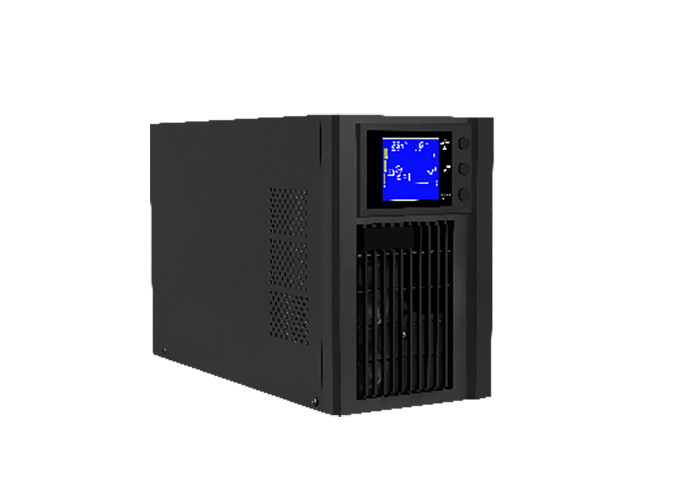

Small Computer Backup Power Supply HT11 1K Online High Frequency 1KVA 800W

Categories	Backup Power Supply
Brand Name:	J-ENERGIZE
Model Number:	JET-HT11 1K (R)
Place of Origin:	XIAN, CHINA
MOQ:	1 Unit
Payment Terms:	L/C, T/T, Negotiable
Delivery Time:	Negotiable
Packaging Details:	Carton
Installation type:	Tower
Nominal capacity:	1KVA / 800W
Battery pack:	24V built-in battery
Max. Battery Input Inrush Current:	< Around 150% of Nominal Current
Battery backup time:	Half Load ≥ 10mins, Full Load ≥ 5mins (Standard)
Application:	Telecommunications,Networking,Computer
Protection:	Overvoltage,Unbalanced Loads,Short Circuit,Overcurrent,overload/overshort/discharge/charge/short circuit
Wave form:	Pure Sine wave
Product name:	Uninterrupted Power Supply
Power factor:	0.8
Weight:	8.5 kgs
Transfer time:	0 ms

Contact Now

Add to Cart

Company Info.

Xian Junbiao Electronics Technology Co.,Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

HT11 1K Online High-Frequency Uninterruptible Power Supply 1KVA 800W Computer Small UPS

JET-HT11 1K (R) Online High-Frequency UPS

Model HT11 1K (R) Online High-Frequency Uninterruptible Power Supply, is 1KVA 800W tower type UPS, no break, built-in battery.

Application

Small data center

Server room

Internetwork laboratory

Communication devices

Office terminals

Workstation

Key Features

It is high-frequency online dual conversion.
DSP (digital signal processors) ensures the better quality and high performance.
It is pure sinewave, stable and reliable, no matter in utility mode or battery mode, it is sinewave power output with low distortion.
Microprocessor control ensures high reliability
Input power factor correction (PFC), input power factor up to 0.98
AC Output power factor is 0.8
Wide input voltage range and frequency range fit to harsh power grid condition.
It can fit to generator.
Zero delay time ensures the safety and reliability of load. when the grid power is cut off or recovers, there is absolutely no transfer time.
2U rack mount Installation.

Specifications

Model Specifications		1K (R)
Nominal Capacity		1000VA/800W
AC Input	Voltage Range	115~300VAC±5V
	Frequency Range	45~55Hz ±0.5Hz
	Bypass Voltage	80VAC × (1±5%) ~ 285VAC × (1±5%)
Battery Input	Battery Pack	24V
	Built-in or Outside	Built-in
	Backup Time	Half Load ≥ 10mins, Full Load ≥ 5mins (Standard)
	Max. Battery Input Inrush Current	< Around 150% of Nominal Current
	Battery Charging Time	5Hours up to 90%(standard); Depends on the Battery Qty (long-term)
AC Output	Voltage	220VAC ±1% (Invert Output)
	Frequency	50±5Hz (Normal AC Output) 50Hz±1% (Abnormal AC Output)
	Waveform	Pure Sinewave
	THD	THD <3% (Linear Load), THD <8% (Non-Linear Load)
	Power Factor	0.8
	Overload	130% of Continuous Load More Than 30sec, Recovery as 90% of Load
	Current Peak Factor	3:1
	Grid/Batteries Conversion Time	0 ms
Tower Type	Communication and Monitoring Functions	RS232 (Can Change as RS 485), Stem Node
	Weight (kgs)	8.5
	Dimension (W x D x H) (mm)	355×145×225
Rack Type	Weight (kgs)	10.8
	Dimension (W x D x H) (mm)	460×440×90
	Installation	Rack and wall mounting
