NFC Card Reader Industrial Panel Pc Touch Screen For Self Service Kiosk

Categories Touch Panel PC
Brand Name: ITD/OEM
Model Number: ITD**PPCT5X**-NFC/RFID
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1PCS
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 unit per month
Delivery Time: 12-15 work days
Packaging Details: Foam,gift box,master carton,wooden case,pallet
CPU: Intel J1900 i3 i5 i7 Android
Aspect ratio: 16:9
Type: Panel PC,embedded industrial panel PC
Resolution: 1366x768/1920x1080
Brightness: 300 nits
Mounting method: VESA mount,panel mount,Embedded mount
Price: TBA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NFC Card Reader Industrial Panel Pc Touch Screen For Self Service Kiosk

NFC card reader scanner printer touch screen for self service kiosk with bulit-in Windows Android panel PC


FEATURES


▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

▪ Eliminates dust and debris build-up at the edge and corners of the display

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ CE, FCC, RoHS Compliance


OPTIONALS

•DC 24V, DC9-36V, AC100-240V

•High brightness, sunlight readable

•Resistive touch screen, tempered glass

•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc


Specs:


SPECIFICATION

PanelCell Type/Glass SurfaceTFT
Size15.6”
Aspect Ratio16:9
Active Area344.23(H)x 193.53(V) (H)mm
Pixel Pitch0.252 × 0.252mm
Native Resolution1366 x 768 (1920 x 1080 optional)
Colors16.2M
Brightness300cd/㎡
Contrast500:1
Response Time6ms
Viewing Angle(Typical)170/160
Light SourceLED Backlight with 50000Hours’Lifetime

SPECIFICATION

SystemCPUIntel® Celeron J1900 2.0GHz Processor
BIOSAMI
ChipsetTBA
Memory1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic ChipsetCPU integrated graphics HD and support 1080p
Storage64GB SSD
LAN1 x 10/100/1000Mbps Ethernet
Input / OutputSerial Ports1 x COM
USB Ports4 X USB
VGA Port1 x VGA
HDMI Port1x HDMI Port
Audio Card

with Realtek ALC662

Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

PowerInput VoltageDC 12V
Operation/Power Saving30W
Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ Optional)
Storage Temperature-20~70℃
Relative Humidity10%~90%
Order Information15.6”Flat Bezel Panel PC with PCAP Touch J1900/ITD156PPCT5XJ1
15.6”Flat Bezel Panel PC with Resistive Touch J1900/ITD156PPCT1XJ1
15.6” Flat Bezel Panel PC with Tempered GlassJ1900/ITD156PPCG1XJ1

Image:

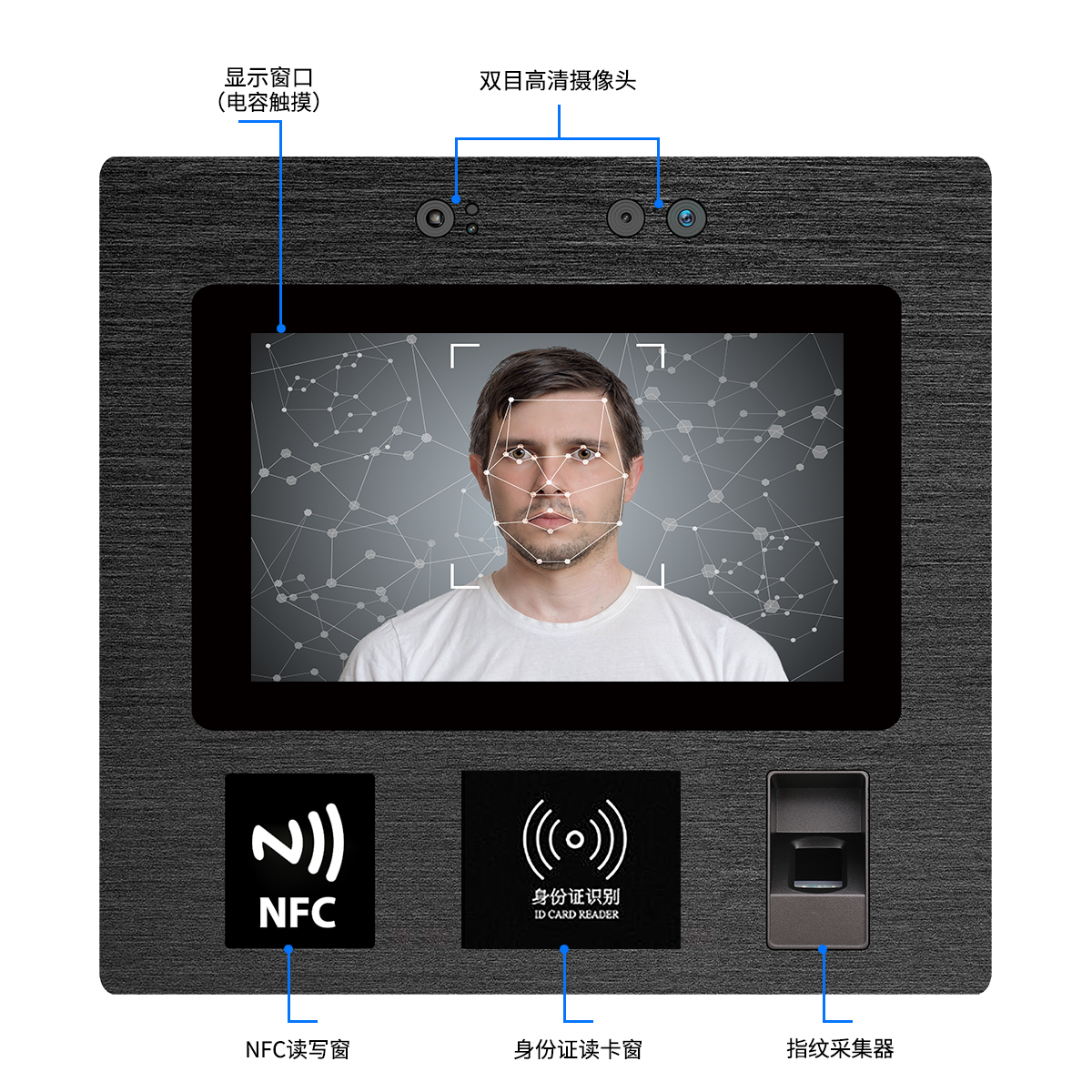

Nfc reader for self service kiosk
