IP65 Waterproof Multi Touch Screen Linux Android Operation Systems For Interactive

Categories Touch Screen LCD Monitor
Brand Name: ZXTLCD
Model Number: ZXT-T720-10A
Certification: CE/Rohs/FCC/ERP Energy Label
Place of Origin: China
MOQ: 1 Piece
Price: Negotiate
Payment Terms: T/T,Western Union, Alibaba trade assurance
Supply Ability: 5,000 pcs per month
Delivery Time: 3-5 days

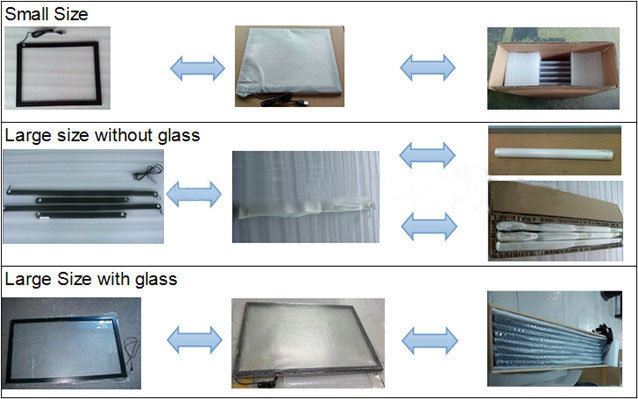

Packaging Details: wooden case, carton, flight case are option
Touch Points: 10 Points
Size: 72''
Operation Systems: windows 7, 8, 10,XP, Linux, Android
Altitude: Up to 3,000m
Controller: Integration inside touch panel
Operation Voltage: Typical +DC 5V, +4.75V to +5.25V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP65 Waterproof Multi Touch Screen Linux Android Operation Systems For Interactive

72'' 10 Multitouch Points Infrared Touch Frame Overlay


Product Description:

ZXT are specilized in large size Infrared(IR) touch screen frame panel from 15inch till 320 inch,it could work with projector and also viedowall,big size of monitor,kiosks etc. With good quality and performance in surper markets,bank,school,subway,airport,exhibition halls,conference room,meseums,clubes,bars etc .

ZXT ir multi touch products are being more and more popular in the market all over the world because we bring users a stunning interactive experience and offer reliable quality products based on good price.


We are looking for the representative,distributor,agent,wholesaler in your country and region.


Hope to do business with you based on Mutual advantage !


True multi-point touch screen Main Feature:

1. Multi Touch,2,6,10,16,32 Points touch version is optional .

2. High stability without drift, free from the affects to time and environment change

3. High suitability free from the interfere of currency, voltage, and static due to the complicated environment

4. High light transmittance reach as high as 100%, No film overlay, preserves optical clarity

5. Long service life, vandal- and abrasion-resistant, Scratch Resistant, Water/Dust Resistant screens, ideal for rugged applications

6. Easy activation, no touch pressure is required; no special material is required for touch activation; any material, whether soft or hard, whether conductor or nonconductor can be used as an activating stylus.

7. IP65 Waterproof, Full sealed design.

8. Large size of touch frame is available from 90 inch till 320 inch .

Application:

1. Point-of-information kiosks
2. Electronic catalogs
3. Gaming, POS, ATM, lottery, and amusement
4. Industrial control rooms
5. Computer-based training

6. Add on Video wall or monitor


Specification:


Touch technologyTrue multi-point touch screen
Touch pressureZero pressure
Light transmittanceTransmittance of 100% to 100% (no glass)
Touch physical resolution1000×1000
The report resolution32767×32767
Maximum recognition point size8mm×8mm
Minimum contact detection3mm
Surface durability7H
Resistance to bad environmentRedundancy is extremely high, 20% sensor damage, still can keep the multi-point touch
Touch point recognitionTouch point: 2 points, 4 points, 8 points, 12 points, 16 points, 32 points
Working voltage5.0 V (internal voltage of 3.3 V)
Average current<200MA
Power consumption1W
Maximum current<350MA
Dormancy current<10mA
Response speed12ms
interfaceUSB2.0 HID mode
Scanning speed50 frames per second
Interference byNo electrostatic interference, drift phenomenon
lifeA single sensor continuous work: 5000 hours
Time-sharing work, the continuous life: 5000 hours by 200 In energy saving mode, can also improve the 10 times of working life (long time no touch cases, low speed running)
Touch numberNo mechanical structure, the equivalent capacitance screen 200 million times
Object shape recognitionsupport
Touch modeFingers, pen (not capacitance, electromagnetic pen)
Support platformwindows xpwindows78linuxandroid
Software interface agreementTUIO protocol (UDP mode), TUIO Adobe Flash mode (TCP model) Windows7multitouchHID agreement
Apply liquid crystal size17-150 inches
Humidity rangeWork, storage temperature: 90% RHd 40 ℃ without dewing
Temperature rangeWorking temperature: 0 ℃ to 50 ℃
Storage temperature—40℃-85℃

FAQ:

Q: What operation system it support ?

A: compatible with Win7/8, Android, Linux and ELO


Q: What is your MOQ?

A: 1pcs


Q: How proceed the order?

A: online or offline

Payment terms: TT, Western Union, PAYPAL, Trade Assurance.

1) For sample order : 100% T/T, Western Union, Paypal.

2) For bulk order more than ten thousand dorllors : 50% Deposit T/T Blance before goods ship out


Q: What is your guarantee period?

A: All touch screen 1 years warranty.


Q: What is your delievey time ?

A: Sample order : within 1-3 days, 5-12 working days for bulk production after confirmed.


If you have any other questions, please contact our salesman as soon as possible.
