Long Distance 2D Barcode Scanner Fast Response With 12 Months Warranty

Name: Long-distance Two-dimensional Code Scanning Platform

Model: BT-980

Introduction:

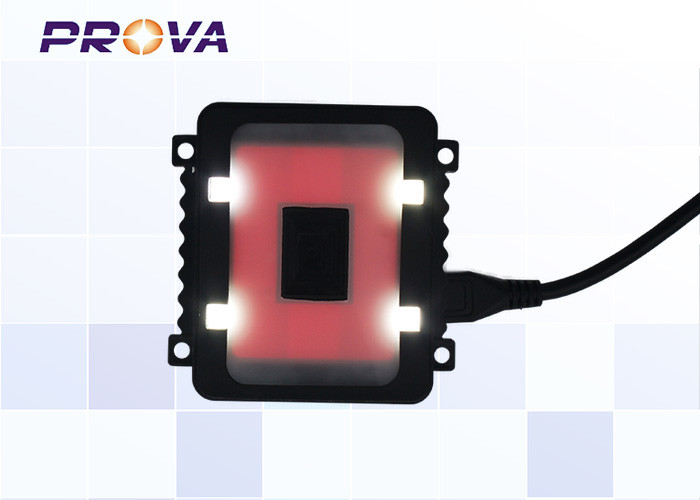

BT980 barcode scanning platform is a long-distance, strong light immunity, high integration, fast response, high stability barcode and two-dimensional code reading product, can read all kinds of mainstream one-dimensional barcodes and mainstream two-dimensional codes.

The BT980 has a long-distance scanning depth of field. Take the mobile QR payment code as an example, it can identify the depth of field: 10-120cm. The clever structure design and superb algorithm make the product still have a good scanning experience in the strong sunlight of 100,000 Lux, whether it is facing the sun direction or the backlight direction. In parking lots and high-speed toll applications, it is possible to support direct scanning without shaking the car window under raining weather.

The BT980 scans paper barcodes when there is plenty of light. Ultra-thin and compact product structure, the total thickness of the product does not exceed 29mm, which can greatly adapt to the extreme requirements of the user.

This product can be used in parking management, payment, industrial, logistics management and other fields.

Features and advantages :

	Light environment: excellent scanning code experience under strong light and low light conditions, strong light intensity 100000 lux, low light intensity 0 lux.
	Scanning code distance and speed: the payment code scan code distance is up to 10-120cm in normal light illumination and angle, and the scanning code speed response is fast, and the single reading code is within 50ms.
	Environment adaptation: The recognition angle is wide, and the user's hand-held mobile phone has a wide angle of deflection. The rainy day and the window film can still scan the code without shaking the window.
	Two-dimensional code carrier: support one-dimensional code, two-dimensional code of mobile phone screen in complex environment, support paper barcode and two-dimensional code. Bar code carrier: screen, paper, plastic, etc.(paper, plastic need extra light)

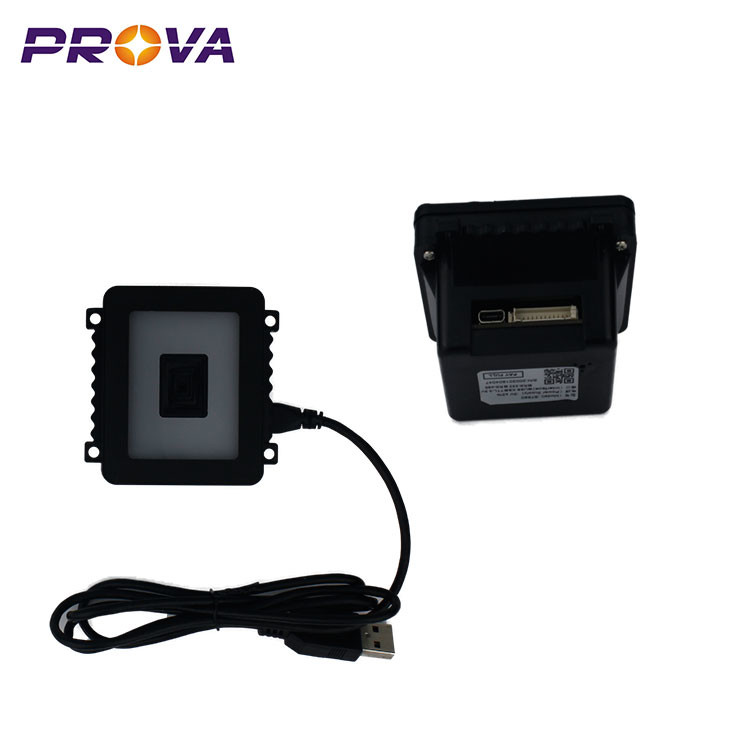

	Hardware structure: ultra-thin and compact product structure, product thickness within 29mm range, with eye-catching three-color light scanning code status reminder.

Dimensional drawing:

Physical parameter:

Scan head volume (length x width x height): 64 mm × 65 mm × 28.9 mm

Weight: 41.4 g

Scanning performance:

Image sensor: 100W pixel CMOS

Scan recognition distance: 10-120 cm

Reading mode: hardware trigger / induction / continuous three modes

Reminder light: three-color status reminder light

Scan type: image type

Field of view angle: 36° horizontals, 23° vertical, 55° diagonal

Reading accuracy: 1D code ≥ 6mil QR code ≥ 15mil

(High-density barcode recognition has a short depth of field)

Decoding ability: Interpret standard one-dimensional, two-dimensional barcode

Electrical parameters:

Input voltage: 3.0- 3.6 VDC, 3.8- 1 6 VDC

Working current: 232 mA (peak)

Standby power: 25mA

Host system interface: USB, TTL-232, RS232, RS485

Environmental parameters:

Working temperature: -20 ° C ~ 70 ° C

Storage temperature: -40 ° C ~ 80 ° C

Humidity: 5%~95%, no condensation

Ambient illumination: 0~100,000
