Multi Functional I Card Reader MICR Check Reader With High Recognition Efficiency

Product Name: Magnetic Ink Check Reader / MICR Check Reader with MSR module MICR1250-M

Product Description:

The MICR1250 multi-functional MICR (Magnetic Ink Character Recognition) reader integrates check reading and magnetic card reading, which is a new generation of financial industry application product developed by our company under the platform of ARM Cortex M1. It has the characteristics of fast recognition, high recognition efficiency and easy to use. This product can be used with computer or terminal equipment, mainly used for the front or back office business of Banks or other financial institutions, to provide the signal reading of magnetic notes and magnetic cards.

Functions and Features:

1. Magnetic check E13B or CMC7 can be read automatically.

2. Can read magnetic cards or pass book wth ISO7811 standard.

3. Communication: Support USB / RS232 / PS2.

RS232: 8 Data bit / 1 Stop bit / No Parity.

USB: Support HID keyboard / HID compliant / USB Virtual Serial Port.

4. Three Power Methods in option:

DC12V±10% ,1000mA；

DC5V±10% ,1000mA；

USB BUS power 5V,400mA

5. Life Time

Magnetic Head: 500,000 times;

Electric Motor: 6000 Hours;

Model Definition:

MICR1250- U U05 0

(1) (2) (3) (4)

(1) Product series

(2) Communication:

(3) Power Supply:

(4) Magnetic Stripe Reader module

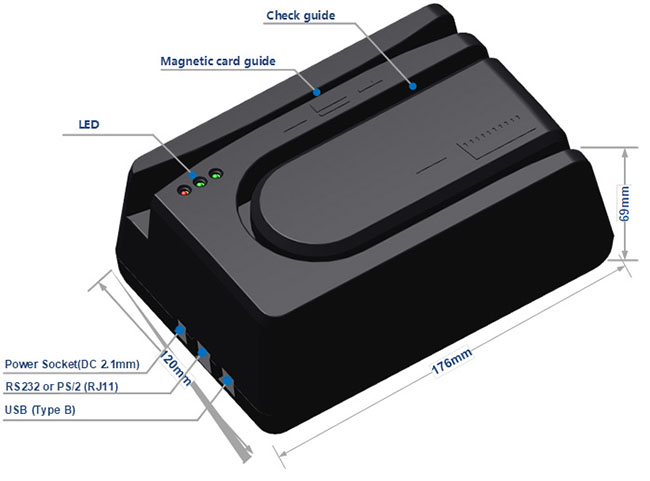

Structure schematic:

Support MICR Characters CMC7 and E13B by self adapt:

E-13B sample codes:

HEX 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D

CMC7 sample codes:

HEX 31 32 33 34 35 36 37 38 39 30 3A 3B 3C 3D 3E

Technical Specifications:

Can read the ISO1004 standard E13B or CMC7 font magnetic ink check.

Can read magnetic stripe card or pass book. All 3 tracks.

Compatible with IBM, ISO, ANSI, DIN standards.

Can set ABA1 code, ISO code through the command.

The speed of electromotion is: 46.5cm/s@12V , 23.56cm/s@5V.

Communication interface can be set to RS232, USB or PS / 2 keyboard mode.

There are three indicators indicating the working status: power supply (P), work (R) and error (E).

Environmental Conditions:

Temperature: 0-40 C°

Humidity: 15%----85%

Physical size (Length x Width x Height):

175mm x 120mm x 70 mm

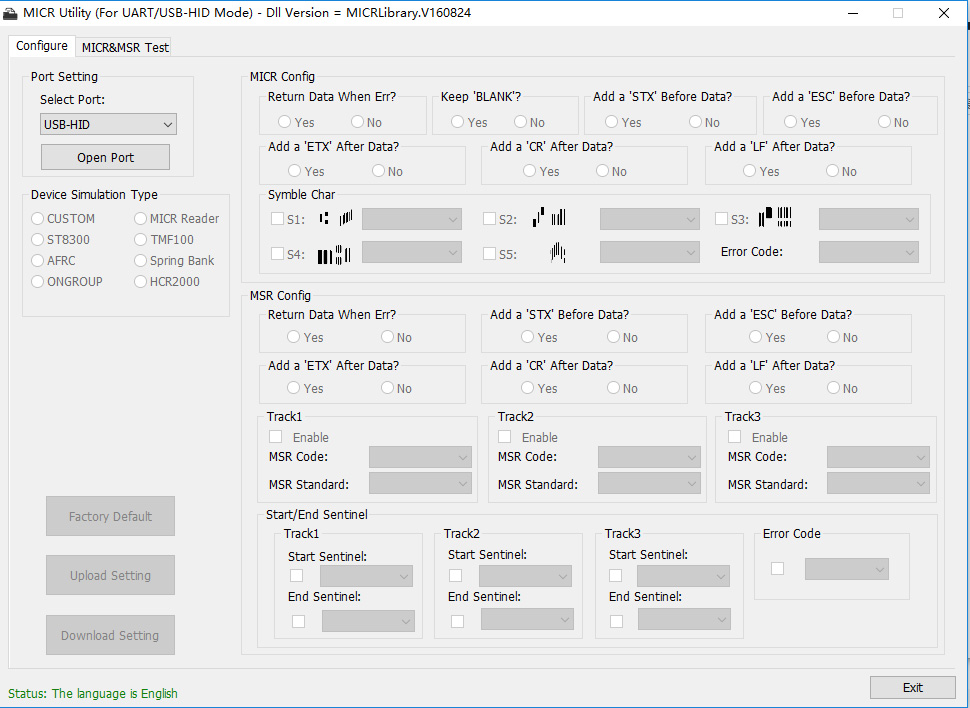

Screen of setting utility:

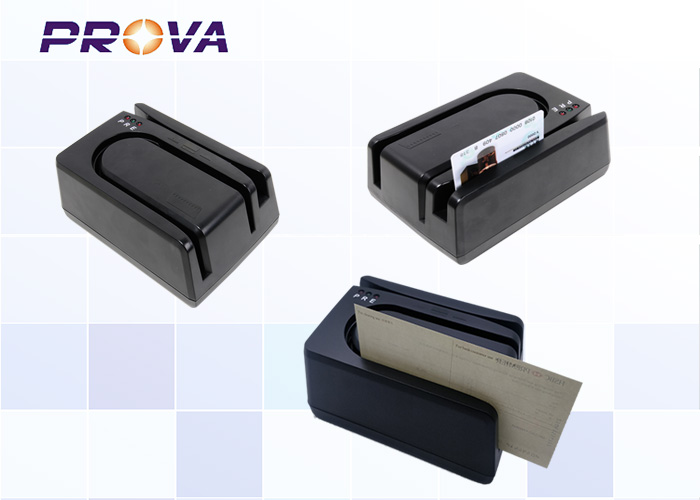

Product Pictures:
