| Categories | FTTH ONU |
|---|---|
| Brand Name: | JiZhong |
| Model Number: | JZOG-6404 |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 5 work days |

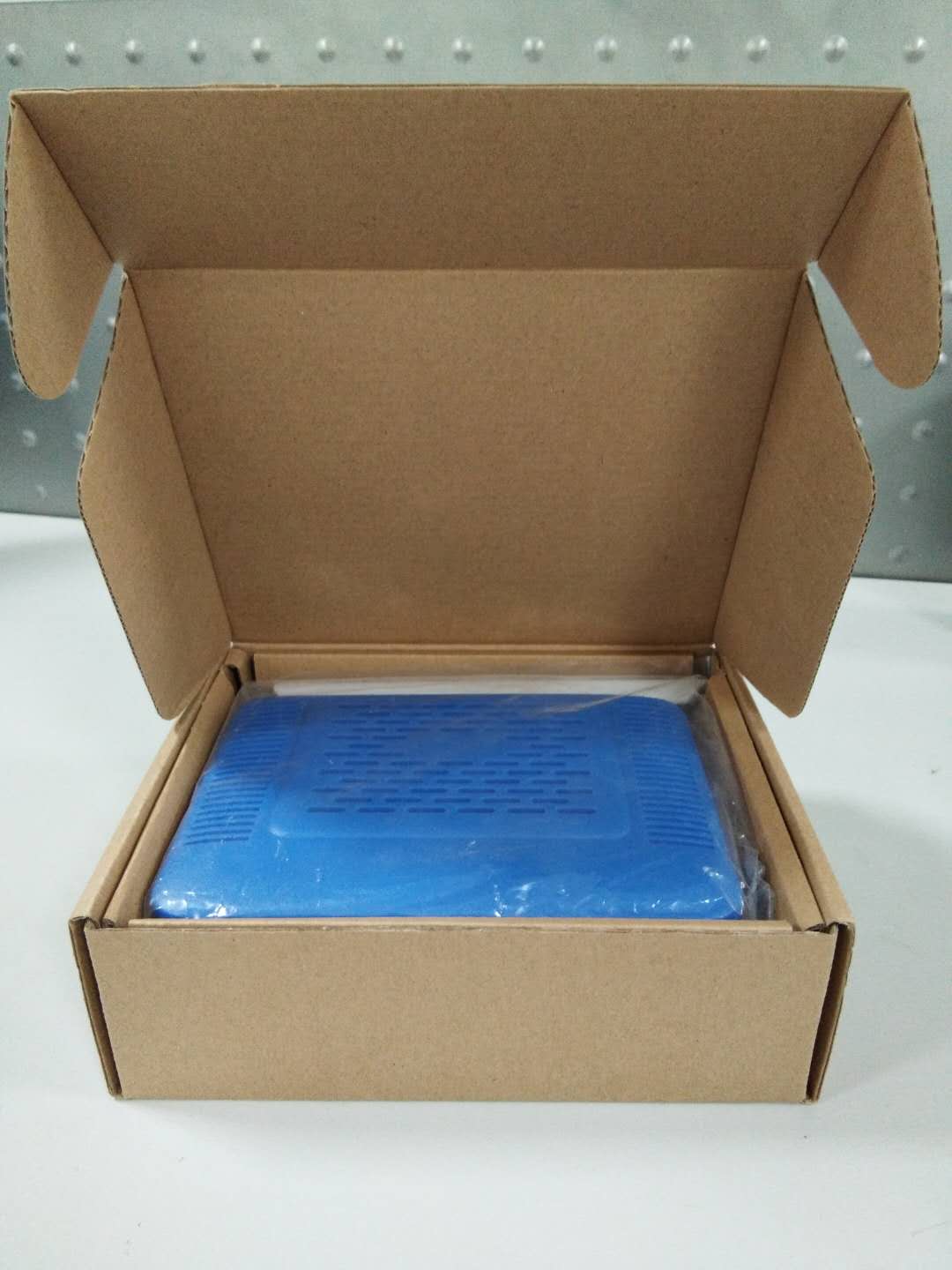

| Packaging Details: | Standard export package |
| Wavelength: | Tx 1310nm, Rx1490nm |
| Tx Optical Power: | -1~4dBm |
| Rx Sensitivity: | -27dBm |
| Saturation Optical Power: | -3dBm |
| Connector Type: | SC |
| Optical Fiber: | 9/125um single-mode fiber |
| Power supply: | DC 12V |
| Size: | 175x120x32mm |
1GE CATV WiFi Ports GPON ONU FTTH ONU With RF Output Port ompatible ZTE HuaWei OLT
Product Description:
JZOG-6404 is a kind of GPON ONT terminal device ,which designed for fulfilling FTTx and triple play service demand of fixed network operator .
It is based on the stable and mature Gigabit GPON technology, which has high ratio of
performance to price, and the technology of Layer 2/3,WDM and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment.
Main Features:
Wavelength:1310/1490/1550 +/- 10nm
Optical return loss:>45dB
Receive optical power:-20dBm~+2dBm
Optical AGC:-15~-5dBm
RF frequency:87MHz~1000MHz
RF output level:70-80dBuV
Optical connector:SC/APC
ONU Specification:
| Item | Parameter | |
| Interface | PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.244Gbps upstream/downstream 2.488gGbit/s, SC single-mode fiber,split ratio: 1:64 Transmission distance 20KM |

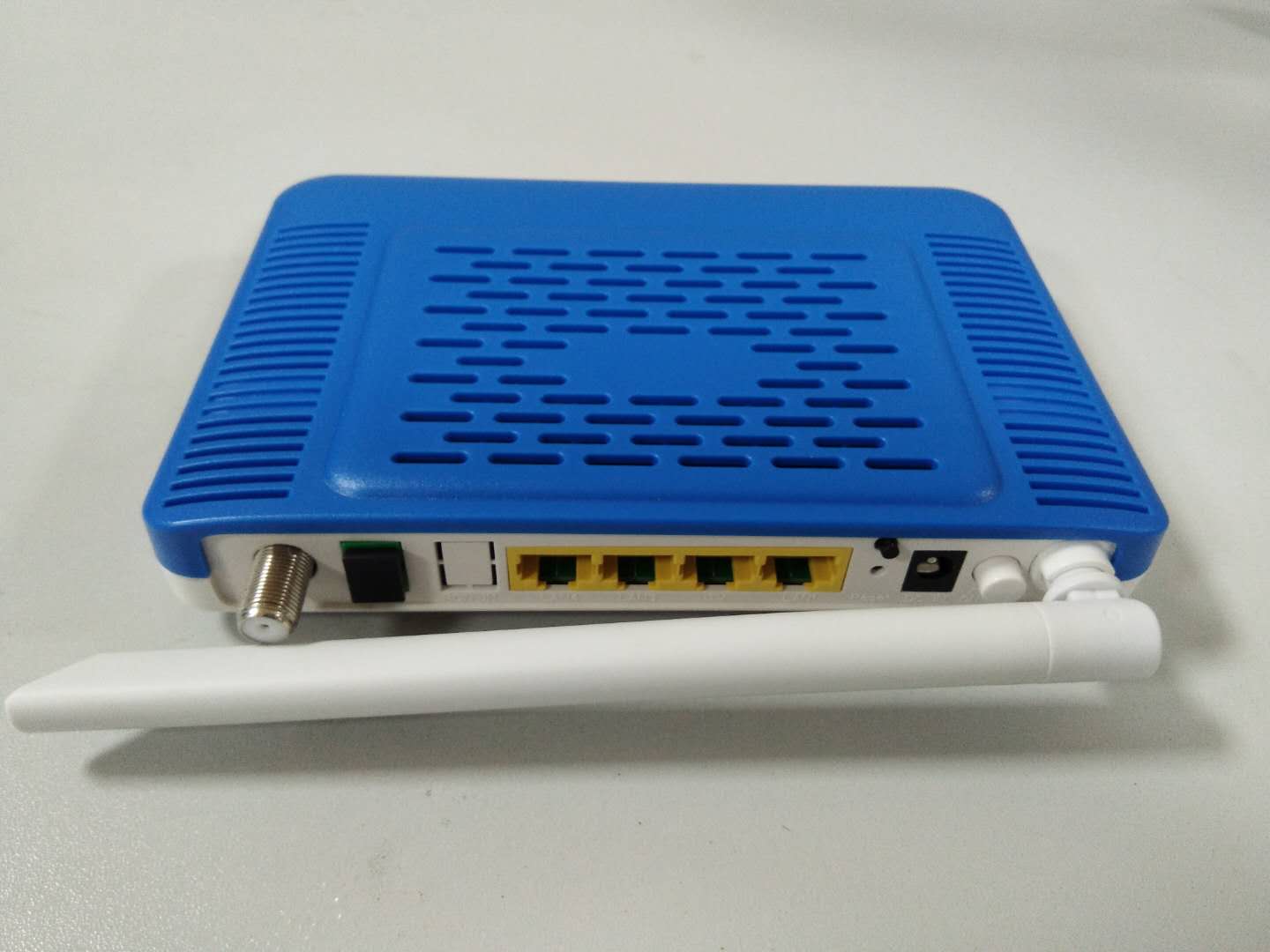

| User Interface | 3*10/100Mauto-negotiation;1*10/100/1000 Full/half duplex mode,RJ45 connector Auto MDI/MDI-X,100m distance | |
| 1 RF output,Female F-Type Connector | ||
| Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -2~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC/APC Optical Fiber: 9/125um single-mode fiber |
| Data Transmission Parameter | PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | |
| Business Capability | Layer 3 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast | |
| Network Management | Management Mode | Support IEEE802.3 QAM, ONU can be remotely managed by TR069,OMCI,SSHL/TELNET,HTTP |
| Management Function | Status monitor, Configuration management, Alarm management, Log management | |

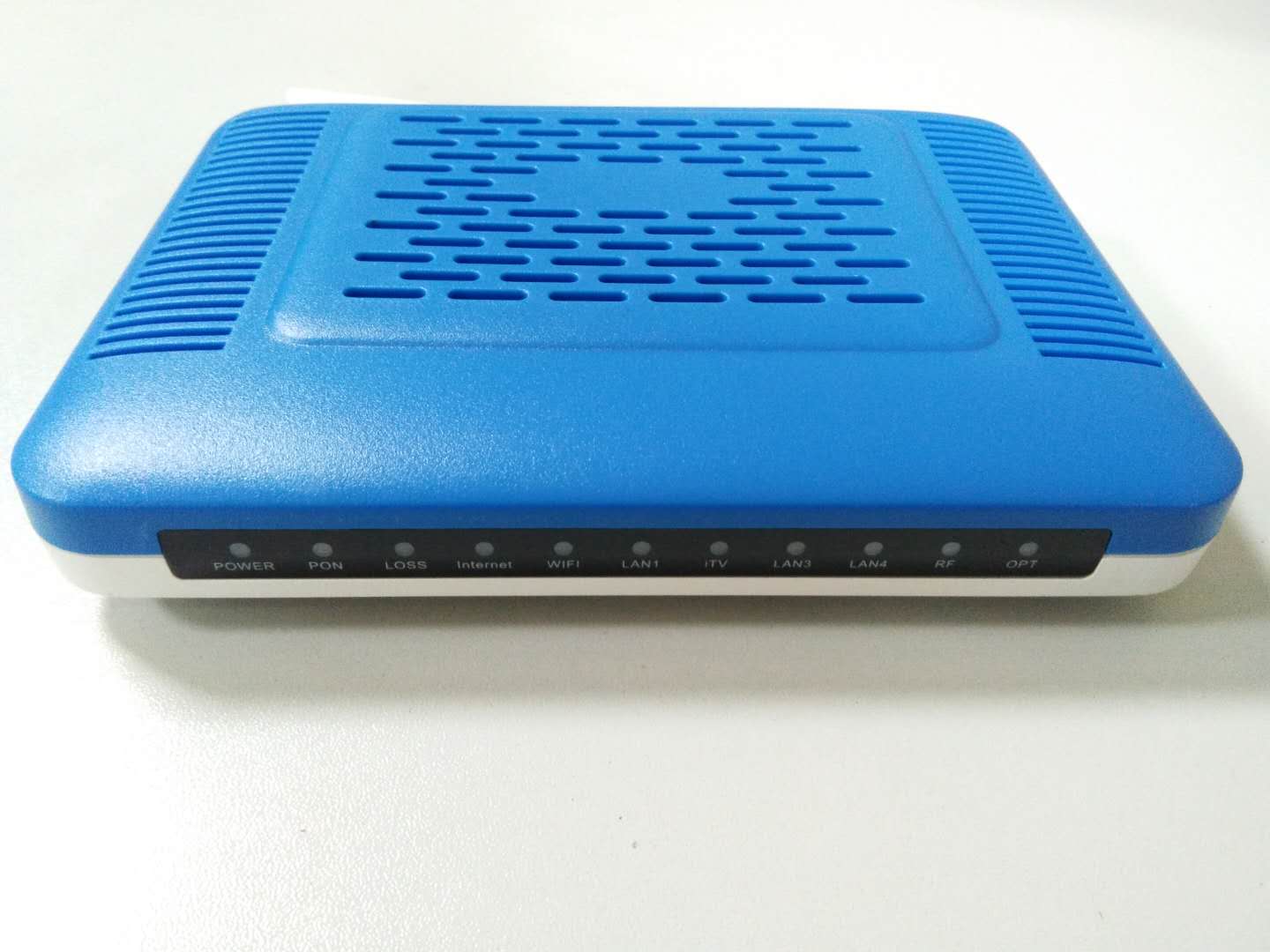

| Indicator | LED Indicator | PWR, SYS,PON, LAN1~LAN4, CATV,WIFI |
| Physical Features | Shell | Plastic casing |
| Power | External 12V 1A AC/D C power supply adapter,Power consumption: <5.5W | |
| Dimension and Weight | box Dimension:209mm(L) x 165mm(W) x 69mm (H)Item weight:0.4kg | |
| Environmental Specifications | Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) | |
|
