Mobile Compute 3G 4G Module Global Networks EM7455 Wireless Sierra Lte Module

2016 New Sierra Wireless Mobile Compute 3G 4G Module Global Networks EM7455 Lte Module

High-speed connectivity in a future-proof form factor

Sierra Wireless® AirPrime® EM Series supports the latest 4G and 3G networks
in North America, Europe, and Asia. The PCI Express M.2 form factor allows easy
integration into smaller and thinner devices. Optimized for low power consumption,
the EM Series is ideal for today’s mobile compute ing, networking, and industrial IoT
applications.

DEPLOY ON THE WORLD’S FASTEST LTE NETWORKS
The EM Series supports 4G global networks, including LTE Advanced, with
automatic fallback to 3G and 2G networks depending on the module variant.

ENABLE LOCATION BASED SERVICES
GNSS tracking lets you locate, monitor, and deploy location-based applications
and services with module variants supporting GPS, GLONASS, Beidou, and Galileo
satellite systems.

INCORPORATE CLOUD CONNECTED SOLUTIONS
Update firmware, manage applications, and utilize product data over-the-air on
EM74xx module variants with AirVantage® cloud connectivity.

Feature

AIR INTERFACE
LTE-FDD, LTE-TDD HSPA+

DATA SPEED
Peak Download Rate

300 Mbps
Peak Upload Rate
50 Mbps

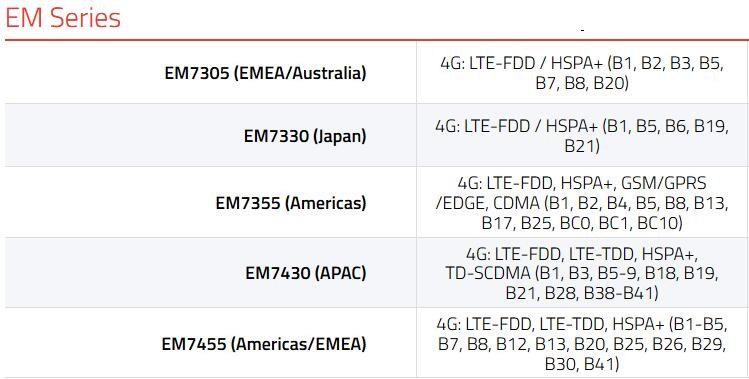

FREQUENCY BANDS
LTE
B1-B5, B7, B12, B13, B20, B25, B26, B29,
B30, B41

UMTS/HSPA+
B1, B2, B3, B4, B5, B8

APPROVALS
Regulatory
FCC, IC, CE, NCC, GCF, PTCRB

Carrier
AT&T, Verizon, Sprint, Vodafone

CPU PERFORMANCES: IO VOLTAGE
1.8V

INTERFACES
USB 3.0, USB 2.0 High Speed

Active Antenna Control
4 pin

Dynamic Power Control
1 pin

Main Radio Disable

GNSS Disable

Flash LED Output

Wake on Wan

On/Off

Reset

Audio
PCM/I2S**

SIM Interface
2x 1.8V or 3V

ANTENNA
Connectors
Main, Aux/GNSS, GNSS

Diversity

MIMO

GNSS Bias

LOCATION SOLUTION
Satellite Systems
GPS, Glonass, Beidou, Galileo

Modes***
Standalone, SUPL 2.0, XTRA 3.0

CONTROL OPTIONS
APIs, AT Commands

DRIVERS
Windows® 7, 8.1 and 10

Android

Linux

DEVICE DIMENSIONS
42 x 30 x 2.3 mm

OPERATIONAL TEMPERATURE
-40°C to +85°C
