Home > Fruit & Vegetable Processing Machines >

Energy Saving Fruit And Vegetable Drying Equipment 380V 20-100 Kg / Batch

Categories Industrial Fruit Dryer
Brand Name: Gofun
Model Number: GFM-IFD-001
Certification: CE/ISO9001
Place of Origin: Shanghai, China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, L/C, Visa
Supply Ability: 20 sets per year
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas
Voltage: 220/380/440V, according to customers
Type: Turnkey processing line
Material: Food standard SUS 304, 316, accourding to customer
Capacity: 20T/day ~ 1500T/day, according to customers
Application: Apple, pear
Product name: Apple/pear juice processing line
End products: Dried fruit and vegetable
Special process: Fruit blanching, Vibration type dewatering machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Energy Saving Fruit And Vegetable Drying Equipment 380V 20-100 Kg / Batch

Energy saving fruit and vegetable drying equipment fruit dehydrator machine


Application


Industrial Fruit and Vegetable Processing Food Drying Machine Fruit Dehydrator machine For Carrot Mango is suitable for drying a very large variety of food.

  • fruits and vegetables
  • cereals and nuts
  • tea, flowers and herbs
  • pasta and noodle
  • meat, seafood and sausages
  • spice


Your product is not listed above? We are ready to meet any new challenge!

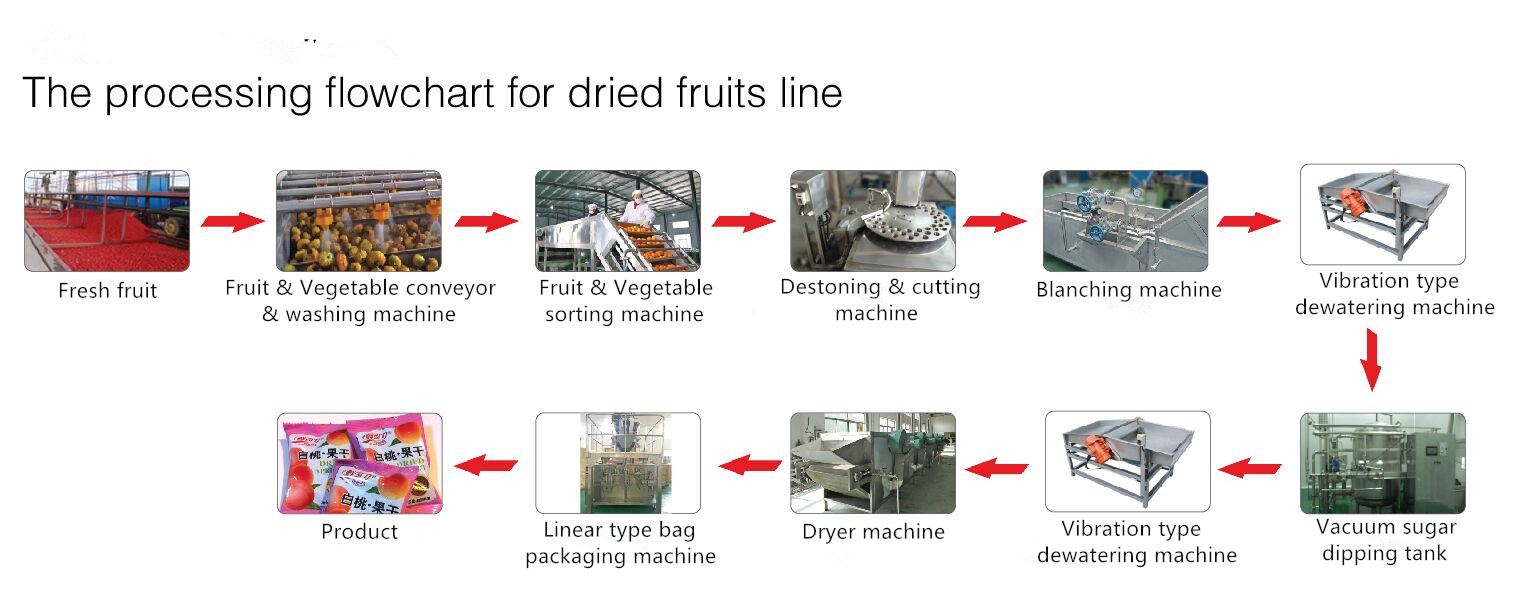

Flowchart


Dried Fruit Processing Line


CLEAR JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

CLOUDY JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Specification

SPECIFICATIONS FOR WRH-100B
Main performance parametersMaterialStainless Steel 304 or 316 optional
Power Supply220v / 50Hz / 60Hz
Power Input1.0KW
Running Current5.0A
Fast heating-up1.0KW
Maximum Power2.2Kw
Dehydration Amount3.5Kg/h ( @ 50℃,80%)
Working Temperature50~65℃
Capacity20-100kg / batch
Noise Level≤60dB(A)
Wind Volume1100m³/h
Machine Dimension(L*W*H)1180*680*1800mm
Tray Number15 pcs (optional)
Tray Size(L*W*H)780*540*30mm
Net Weight160Kg
Gross Weight180Kg
MOQ1 Set
Warranty12 months
Lead Time10~30 working days
Payment terms

1. We can offer different pricing of FOB, CIF and C&F.

2. For established customers, we will offer more favorable payment terms.

Shipping1. We offer FOB Shanghai to our customers.
2. We can also offer CIF to those in need.
3. We can also help in container consolidation.

Features


Industrial Fruit and Vegetable Processing Food Drying Machine Fruit Dehydrator machine For Carrot Mango is our innovative product.

  • It can dry any food to the desired dry matter content in a gentle, fast and reliable way.
  • Several of its advantages are unmatched by conventional heat pump dryers.

1. Gentle drying at middle and low temperature - Aroma, appearance and bio-activity are largely retained.
2. High efficiency through the use of a heat pump system for removing air humidity.
3. Drying in a closed sealed room, no foreign material pollution and no dependence from the climate.
4. All in one design, the operation directly after power switched on.
5. Graphical touch control system, automatic intelligent control and demands no human duty after setting.
6. Condensate available for further use


Advantages


The dried fruit and vegetable processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.


Related Machine



Company Information


Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing and packaging lines for apple, pear, peach, mango, and apricot and other fruits & vegetables, and has received wide spread praises from customers in both the domestic and overseas markets. The machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European and American countries. Gofun Company aim to create the outstanding food machinery and contribute to the world's agricultural industry. We sincerely committed ourselves to a brilliant prospect and mutual benefit relationship with all of the people and friends from Worldwide!


Our Services


1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

5. Oversea technical support

6. Oversea equipment maintenance

7. English speaking engineers available to provide technique support
