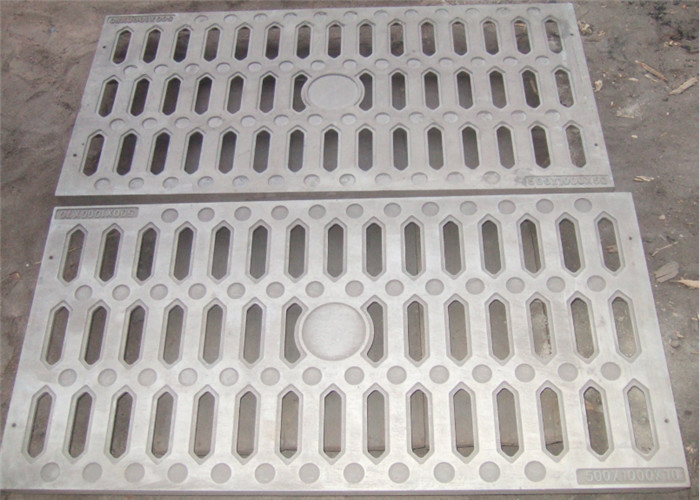

Light Duty Cast Iron Gully Grate Shock Absorption EN1433 400mm X 600mm

Categories Cast Iron Gully Grid
Brand Name: SHUANGXING
Model Number: 400*600
Certification: ISO
Place of Origin: HEBEI CHINA
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000MT /MONTH
Delivery Time: 15DAYS
Packaging Details: WOOD PALLET
Application: drain away water,sidewalk/highway
Material: Iron
Product name: Ductile Iron Manhole Cover,EN124 Standard Heavy Duty Cast Iron Gully Grating
Standard: EN124 Standard
Feature: shock absorption/security
Size: customization
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Light Duty Cast Iron Gully Grate Shock Absorption EN1433 400mm X 600mm

Light Duty Cast Iron Gully Grate Shock Absorption EN1433 400mm X 600mm


MaterialDuctile Iron GGG500-7 & 400-12 , Grey Iron GG20.
DesignsEN124 A15, B125, C250, D400, E600 and F900 , As per customers' drawings or samples.
CoatingCold applied black bitumen ; Without coating ; Coating as per customers'requirement.
PackingSteel or wood pallet, or as per customers' requirements.
Application

Expressway, sidewalk, park, garden, municipal pipeline,

telecommunication, water and electrical power projects.


Our advantage


1) The manhole cover can be made in different standards of iron, with grey and ductile casting iron, HT200/QT450-10/SC35.
2) We can guarantee the quality use for long time.
3) Our technical engineer design the product for high accuracy.
4) Your supplied drawing is welcomed.
5) Round, square, triangular and other shapes are ok for us.
6) EN 124 standard, B125, C250, D400, E600, F900.


Application


1. Electric power pipeline well; Post, telecommunication, communication pipeline well;
2. Street lamp well, fire control well, all kinds of valve well;
3. City water, drainage pipeline well; Heat supplied, gas well;
4. Anti-corrosion project, open ditch; It can be made according to customers requirements.

Features

All the grates have a smooth and firm surface, also with a better strength to corrosion of chemical.
Reinforcement in the bottom are designed specially, guarantee the strong loading.
All the steel grating are inspected according to EN1433 & AS3996.


Item
Description
Frame size (mm)
Clear opening (mm)
Height (mm)
Unit weight (kg/pc)
Square type grating
1
C250 Square type grating
300*300
170*170
45
9
2
C250 Square type grating
400*400
270*270
45
15
3
C250 Square type grating
500*500
370*370

50
23
4
C250 Square type grating
550*550
420*420
50
27
5
C250 Square type grating
600*600
470*470
55
31
6
C250 Square type grating
700*700
570*570
60
48
7
D400 Square type grating
500*500
370*370
80
32
8
D400 Square type grating
550*550
420*420
80
38
9
D400 Square type grating
600*600
500*500
80
43
10
D400 Square type grating
700*700
570*570
80
58
11
D400 Square type grating
700*700
600*600
100
95
