Missle Heads Aluminum Forging Parts High Strength 7075 T6 Forged Cone

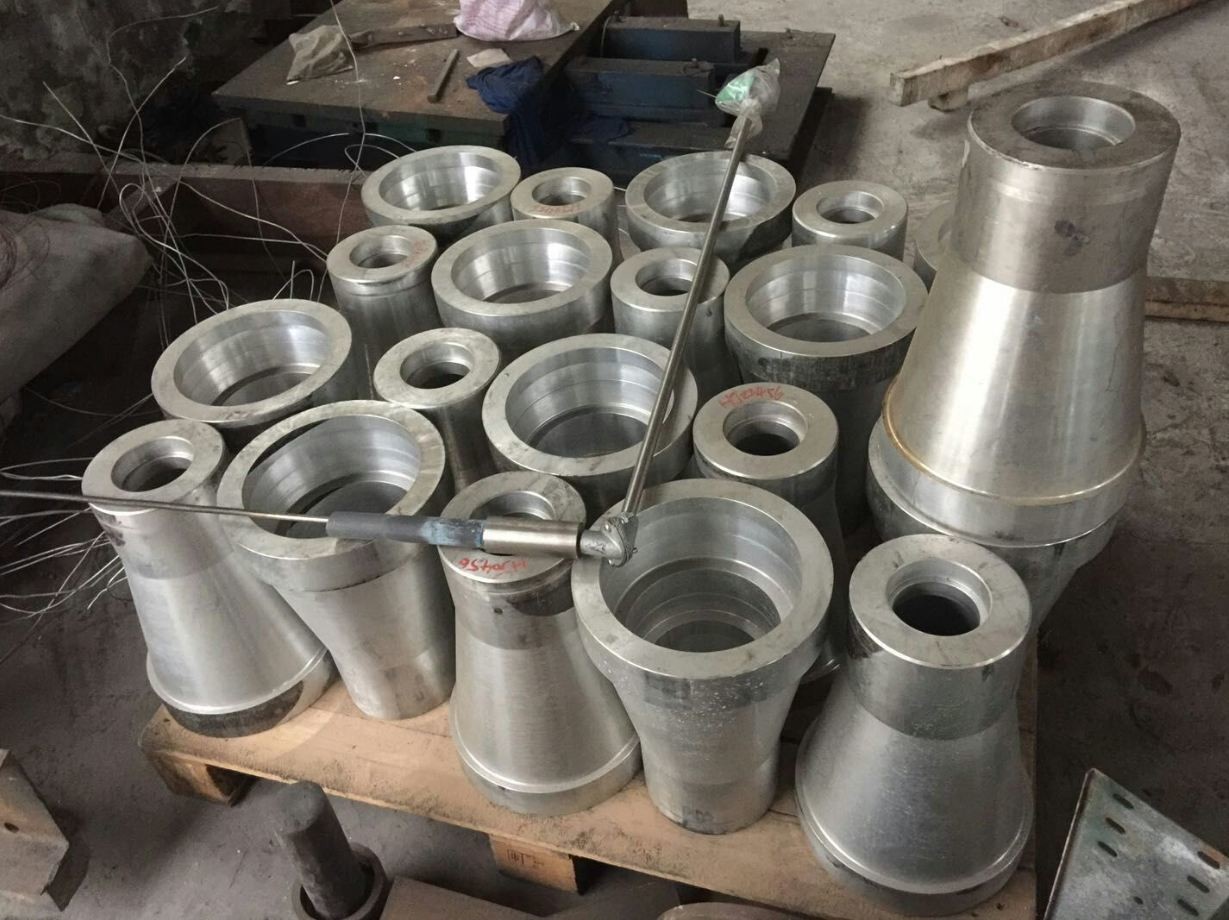

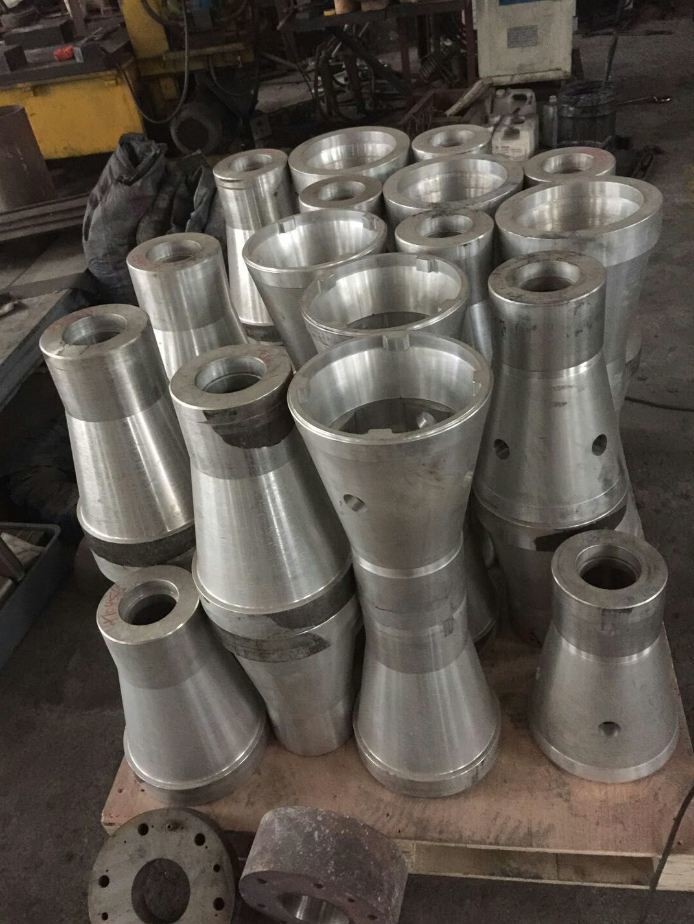

7075 aluminum forged cone parts
is a zinc alloyed aluminum product heavily used in the aircraft / aerospace industry due to its superior strength. The T6 temper offers fair machinability, resistance welding and corrosion resistance. The T73 temper offers superior stress corrosion resistance.
Because of its strength, 7075 aluminum forged forged aluminum is ideal for applications where performance and safety are of high priority as it can endure intense conditions for a wide variety of industries. Industries that commonly use aluminum forgings include Aerospace and Defense, Marine, Commercial and Military Aviation, Transportation.
7075 aluminum forged cone parts
Diameter Range: 15mm Through 229mm
Wall Thickness Range: 15mm Through 229mm
Application: Missle Heads
Shape: Cone
| 7075 Aluminum Alloy Chemical Composition Limits | |||||||||||
| Weight% | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Others Total |
| 7075 min | Rem | - | - | 1.2 | - | 2.1 | 0.18 | 5.1 | - | - | - |
| 7075 max | Rem | 0.40 | 0.50 | 2.0 | 0.30 | 2.9 | 0.28 | 6.1 | 0.20 | 0.05 | 0.15 |
| Characteristic | English | Metric |
| Nominal Density (68° F / 20°C) | 0.101 lbs./ in ³ | 2.80 Mg/m³ |
| Melting Range | 990° F - 1175° F | 532°C - 635 °C |
| Specific Heat (212 °F / 100°C | 0.23 BTU/lb - °F | 960 J/kg-°K |
|
