| Categories | Wavelength Division Multiplexer |
|---|---|
| Brand Name: | UNIFIBER |
| Certification: | ROHS |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 5~8 business days |
| Packaging Details: | Blister case |
| ITU: | 100G 200G |
| Fiber type: | 250um bare fiber 900um loose tube |
| Fiber Length: | 1M or customized |
| In/Out Connector: | FC SC LC ST |
| Company Info. |
| Shenzhen Unifiber Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

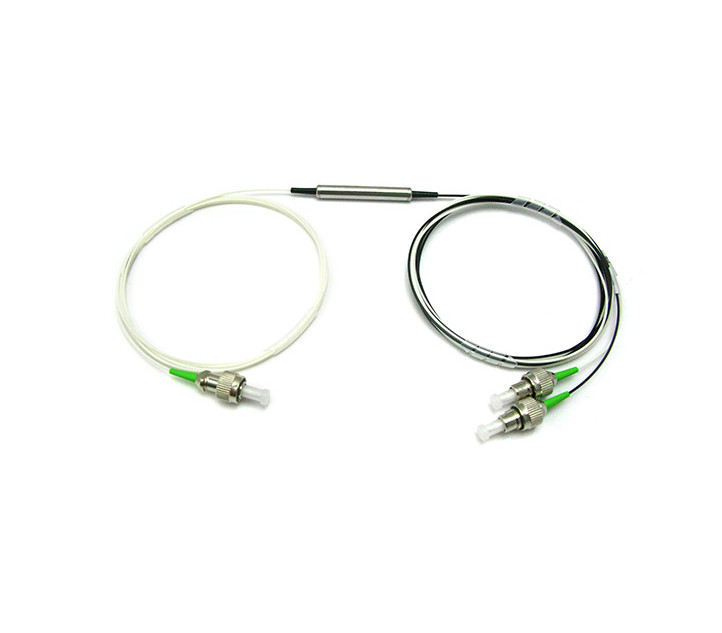

3 ports DWDM device,100GHz/200GHz 1x2 wavelength multiplexer
100GHz/200GHz 1x2 wavelength multiplexer utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavlength Routing |
| Epoxy-free on Optical Path | Fiber Optical Amplifier |
| High stability and reliability | CATV fiberoptic System |
| parameter | Mux/Demux | ||||||
| Channel Wavelength(nm) | ITU Grid | ||||||
| Channel Spacing(GHz) | 100 | 200 | |||||
| Channel Passband (@-0.5dB bandwidth)(nm) | >0.3 | >0.5 | |||||
| Pass Channel Insertion Loss (dB) | ≤1.0 | ≤0.9 | |||||
| Reflection Channel Insertion Loss(dB) | ≤0.6 | ≤0.6 | |||||
| Channel Ripple(dB) | <0.3 | ||||||
| Isolation(dB) | Adjacent | >30 | |||||
| Non-adjacent | >40 | ||||||
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||||
| Directivity(dB) | >50 | ||||||
| Return Loss(dB) | >45 | ||||||
| Maximum Power Handling(mW) | 300 | ||||||
| Opterating Temperature(℃) | -10~+75 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Package dimension(mm) | Φ5.5xL38 | ||||||
1,Above specifications are for devices without connector.
2,Specifications may change without notice.
|
