| Categories | UPS Lead Acid Battery |
|---|---|
| Brand Name: | HRESYS |
| Model Number: | VHR 12DT65 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10 Pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1800000 PCS/YEAR |
| Delivery Time: | 30 DAYS |
| Packaging Details: | Box/carton(standard package) |
| Product Name: | 12 V Lead-acid Batteries |
| Application: | Telecom |
| Capacity: | 65 Ah |
| Nominal Voltage (V): | 12 |
| Float Charge Voltage: | 13.6V/block @25℃ |
| Internal Resistance: | Approx. 0.0062 Ohm (fully charged@20℃) |
| Weight: | 20.1 kg (44.3 lbs.) |
| Dimension: | L351mm x W167mm x H180mm |

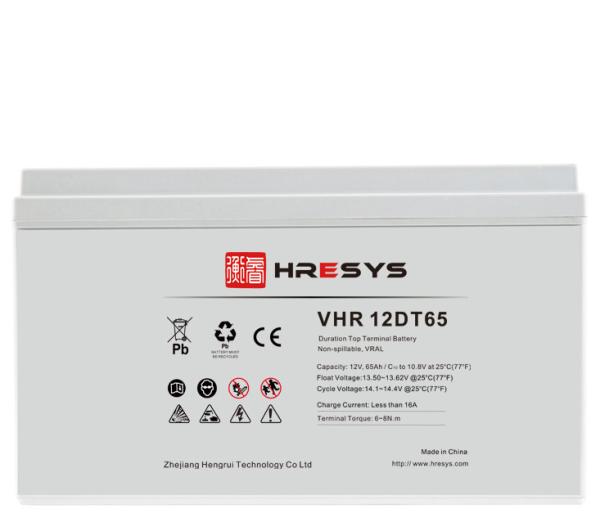

12V 65AH Duration Top Terminal Lead-acid Batteries for Telecom , L351mm x W167mm x H180mm
HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for Telecom.
Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.
With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 65 Ah@C10 (to 1.80Vpc) |
| Dimension (mm) | L351mm x W167mm x H180mm |
| Approx. Weight | 20.1 kg (44.3 lbs.) |
| Terminal Type | Female Copper Insert M6 |
| Internal Resistance | Approx. 0.0062 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 16 A |
| Self-Discharge | Approx. 3% per month @ 25°C |
| Ambient Temperature | Discharge: -20~55°C Charge: -20~50 °C Storage: -20~45°C |

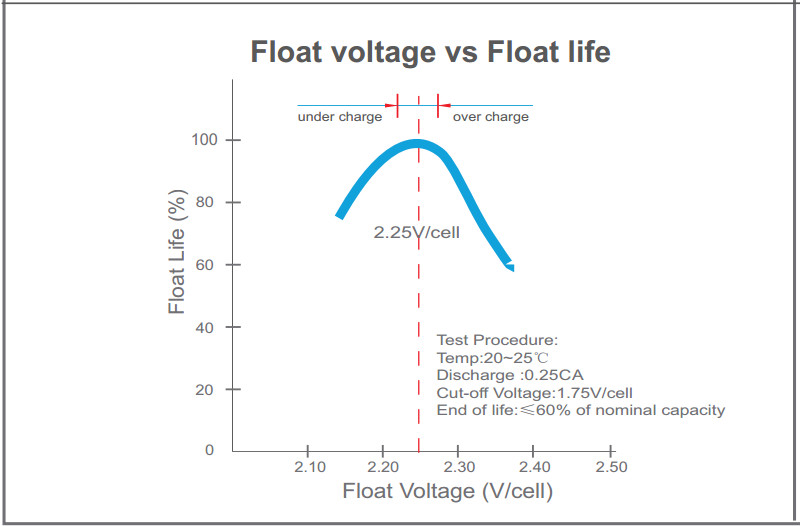

| Float Charge Voltage | 13.6V/block @25℃ |
| Equalize Charge Voltage | 14.4V/block @25℃ |
| Container Material | ABS (UL94-V0 optional) |
o Outdoor telecom
o UPS
o IDC
o Security and alarm system
o Utilities
o Emergency light systems
o CATV

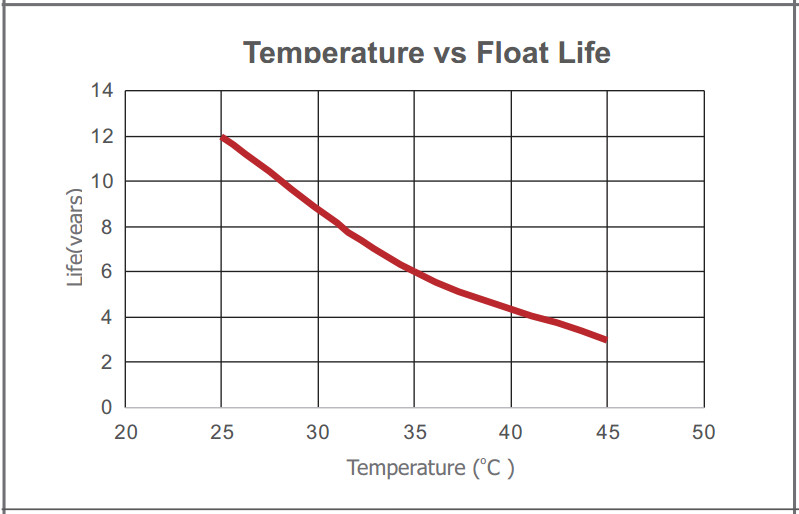

- Long Cycle Life: 15 years long life design @ 25℃
- Multi-purpose Application: The battery can be floating application as well as cyclic application
- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge
- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate

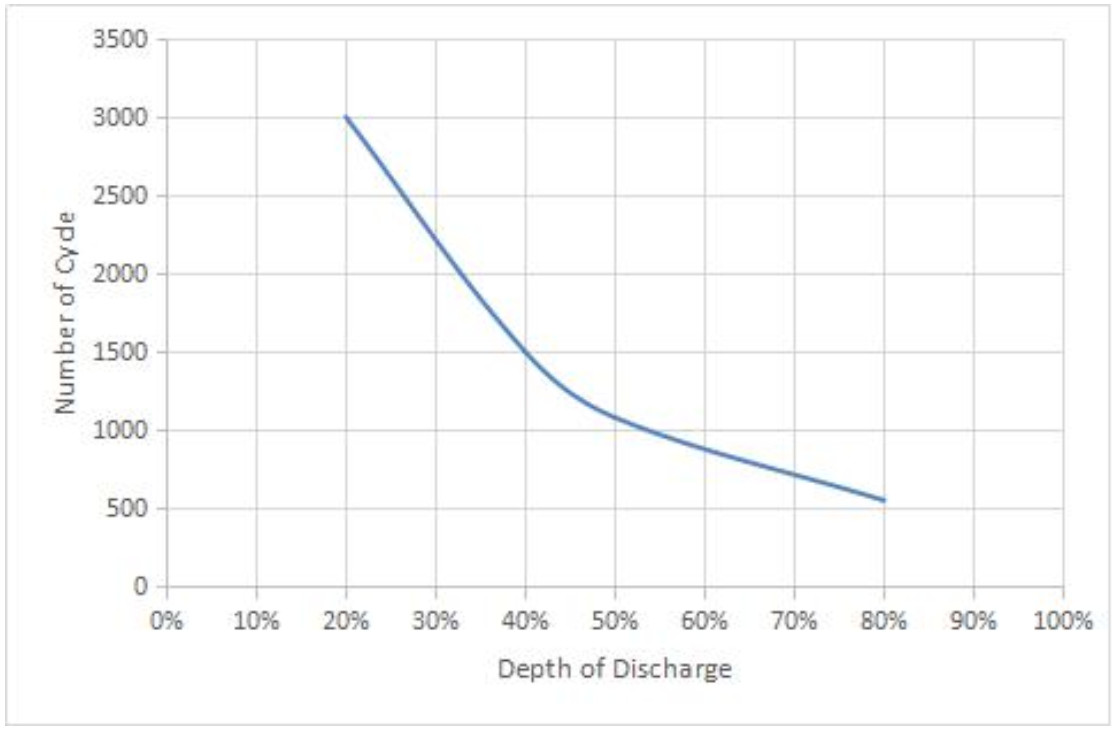

Cyclic Characteristics
High cycle performance: up to 550 cycle at 80%DOD
|
