| Categories | Sealed Lead Acid Battery |
|---|---|
| Brand Name: | HRESYS |
| Model Number: | VHR 12GT150 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10 Pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1800000 PCS/YEAR |
| Delivery Time: | 30 DAYS |
| Packaging Details: | Box/carton(standard package) |
| Product Name: | 12 V Lead-acid Batteries |
| Application: | Utilities |
| Capacity: | 150 Ah |
| Nominal Voltage (V): | 12 |
| Float Charge Voltage: | 13.6V/block @25℃ |
| Internal Resistance: | Approx. 0.0035 Ohm (fully charged@20℃) |
| Weight: | 40.8 kg (89.9 lbs.) |
| Dimension: | L483mm x W170mm x H241mm |
12V 150AH Lead-acid Batteries for utilities , L483mm x W170mm x H241mm
HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for utilities.
Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications
With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 150 Ah@C10 (to 1.80Vpc) |

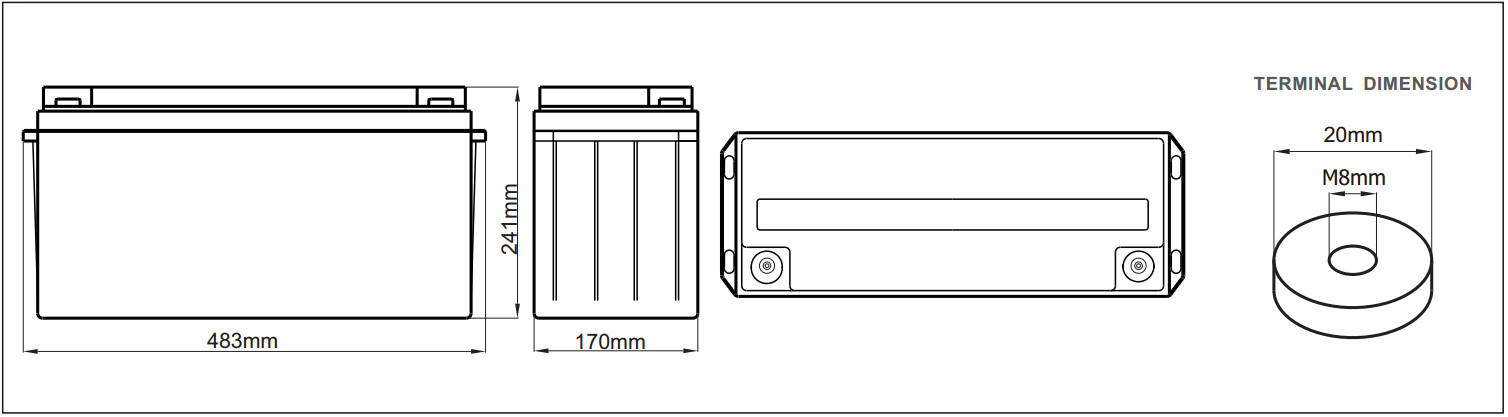

| Dimension (mm) | L483mm x W170mm x H241mm |
| Approx. Weight | 40.8 kg (89.9 lbs.) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0035 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 37.5 A |
| Self-Discharge | Approx. 3% per month @ 20°C |
| Ambient Temperature | Discharge: -40~55°C Charge: -20~50 °C Storage: -20~45°C |
| Float Charge Voltage | 13.6V/cell @25℃ |
| Equalize Charge Voltage | 14.4V/cell @25℃ |
| Container Material | ABS (UL94-V0 optional) |
o Renewable energy
o Outdoor telecom
o Mini Solar Power System
o UPS
o emergency light systems
o Solar street light
- Long Cycle Life: 12 years design float life @ 25℃
- Multi-purpose Application: The battery can be floating application as well as cyclic application
- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge
- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
Cyclic Characteristics
High cycle performance: up to 450 cycle at 80%DOD
|
