| Brand Name: | Sussman |
| Model Number: | SM-CC |
| Certification: | CE,SGS,ISO9001 |
| Place of Origin: | Wuxi Jiangsu China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 sets per months |
| Delivery Time: | 60 days after deposit |
| Packaging Details: | 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases. |
| Material Thickness: | 0.18-0.7mm |
| Forming Speed: | 30 m/min |
| Main Motor Power: | 7.5Kw |
| Forming Stations: | 22 stations |
| Material: | color coated steel sheet |
| Shaft material: | #45 steel with heat treatment |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
0.18mm-0.7mm Mini corrugated panel Roll Forming Machine With Servo following cutting
Brief introduction
This corrugated forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
Technical Parameter
Material: GI, PPGI
Material thickness: 0.18-0.7mm
Material width: depend on profile
Decoiler: manual passive decoiler ( customer can choose hydraulic
decoiler )
Weight capacity of decoiler: 5 Ton
Forming Station of Color Steel Tile Roll Forming Machine: 16
stations ( depend on profile )
Drive: 1.inch chain transmission
Main forming power: 7.5KW
Hydraulic power: 4KW
Roller material: 45# forge steel , polished and coated with 0.05mm
hard chrome
Principal axis diameter: 75mm ( depend on profile )
PLC: Panasonic
Cutting blade material of color steel tile roll forming machine:
Cr12
Table: simple non-power table
Glazed Tile Main Components
| S.N | Equipment name | Quantity |
| 1. | 5T hydraulic un-coiler(optional) | 1 set |
| 2. | Main roll forming machine | 1 set |
| 3. | Servo following cutting | 1 set |
| 4. | Control system (including control box) | 1 set |
| 5. | 6 meters auto stacker | 1 set |
Working Flow
Decoiler----Feeding---Roll forming---Cutting---Run out tables

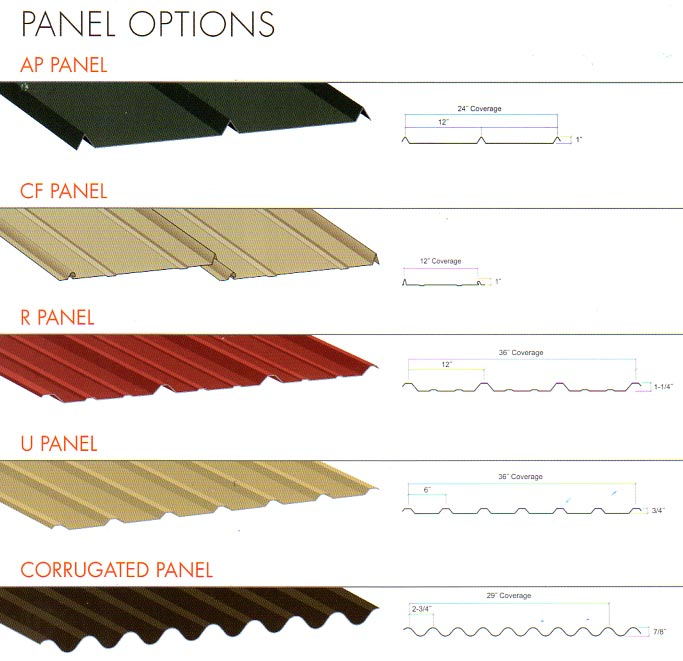

Profiles
Corrugated machine

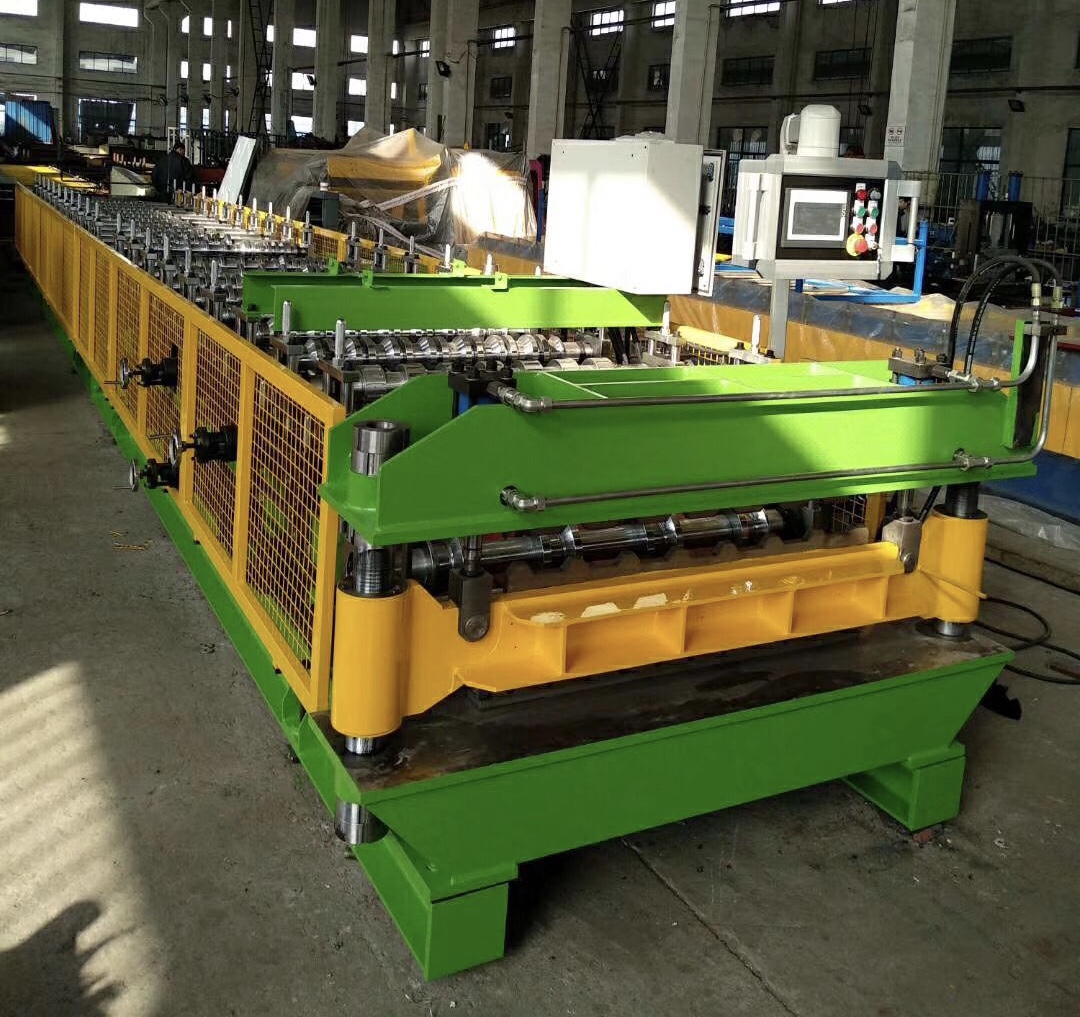

Our finished machine

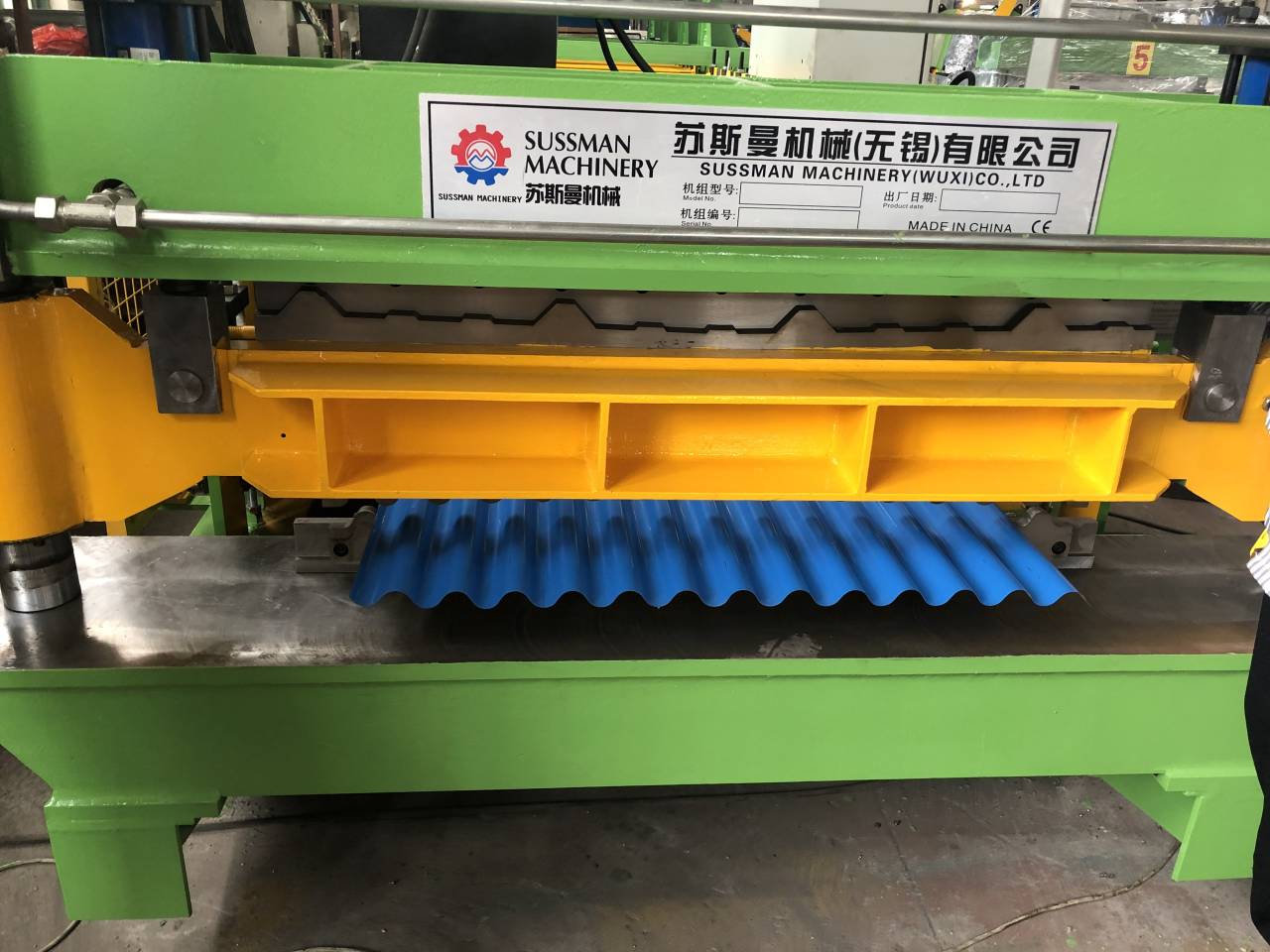

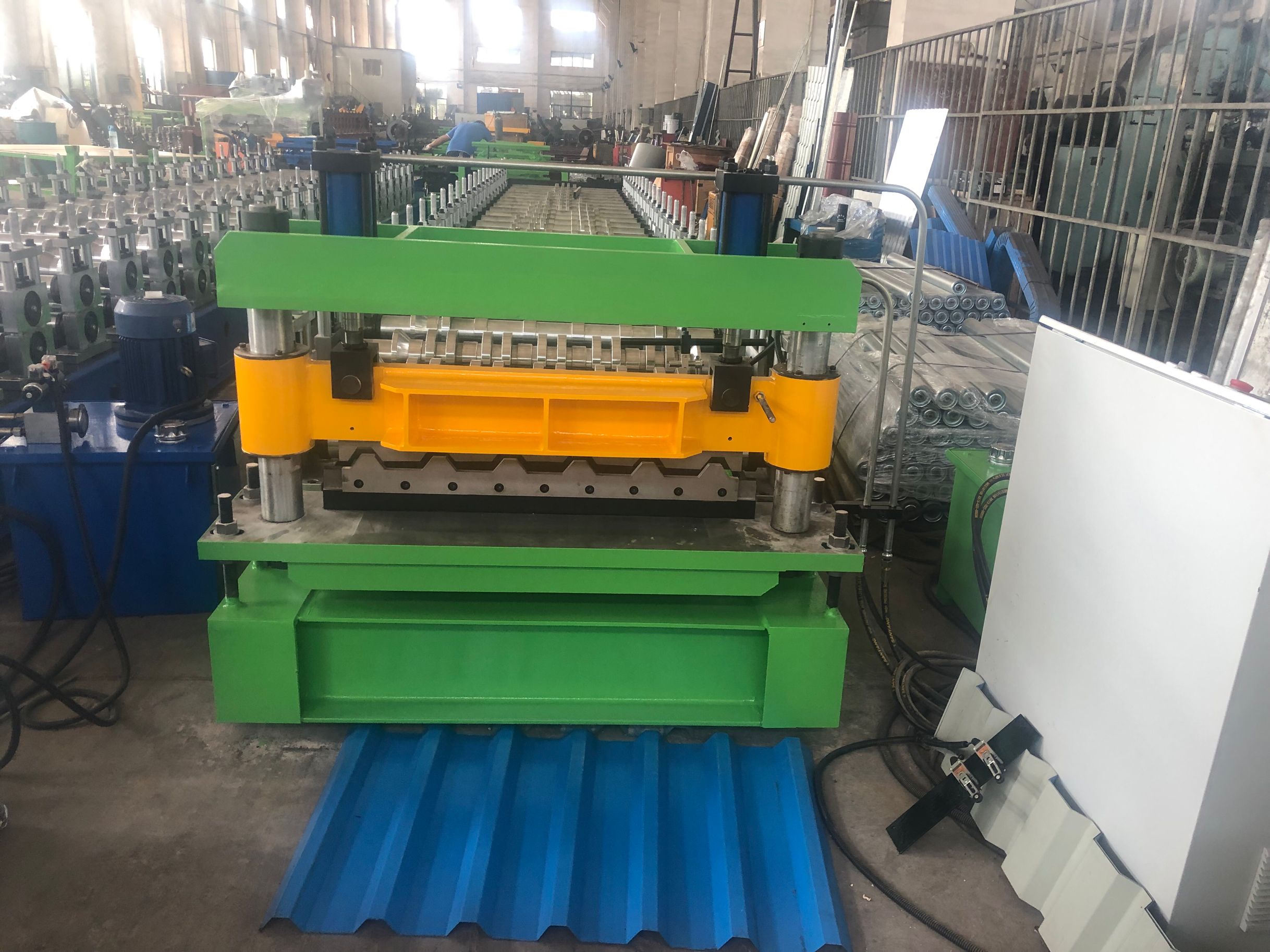

Our finished machine amd pictures

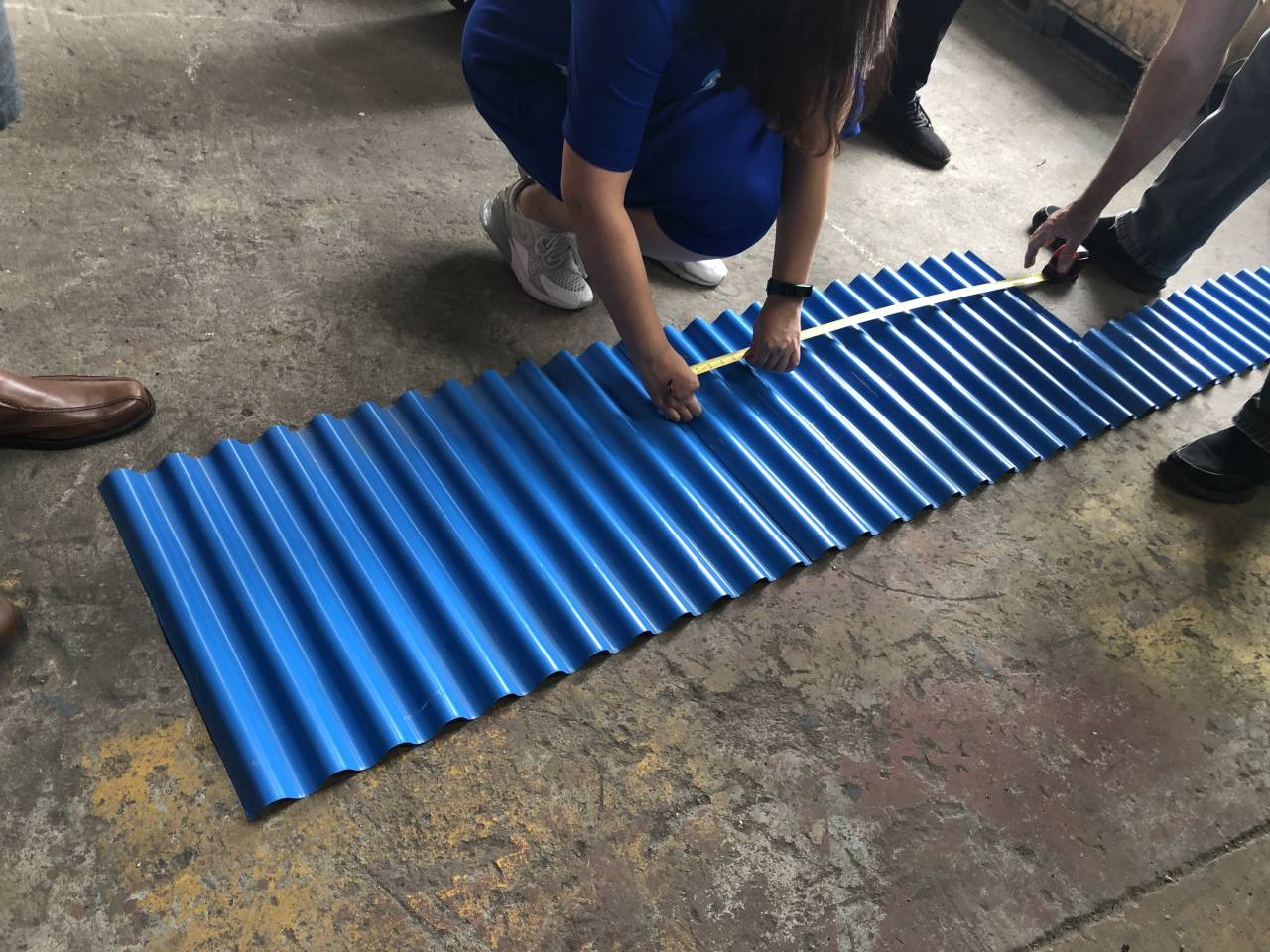

American client come to inspect the machine

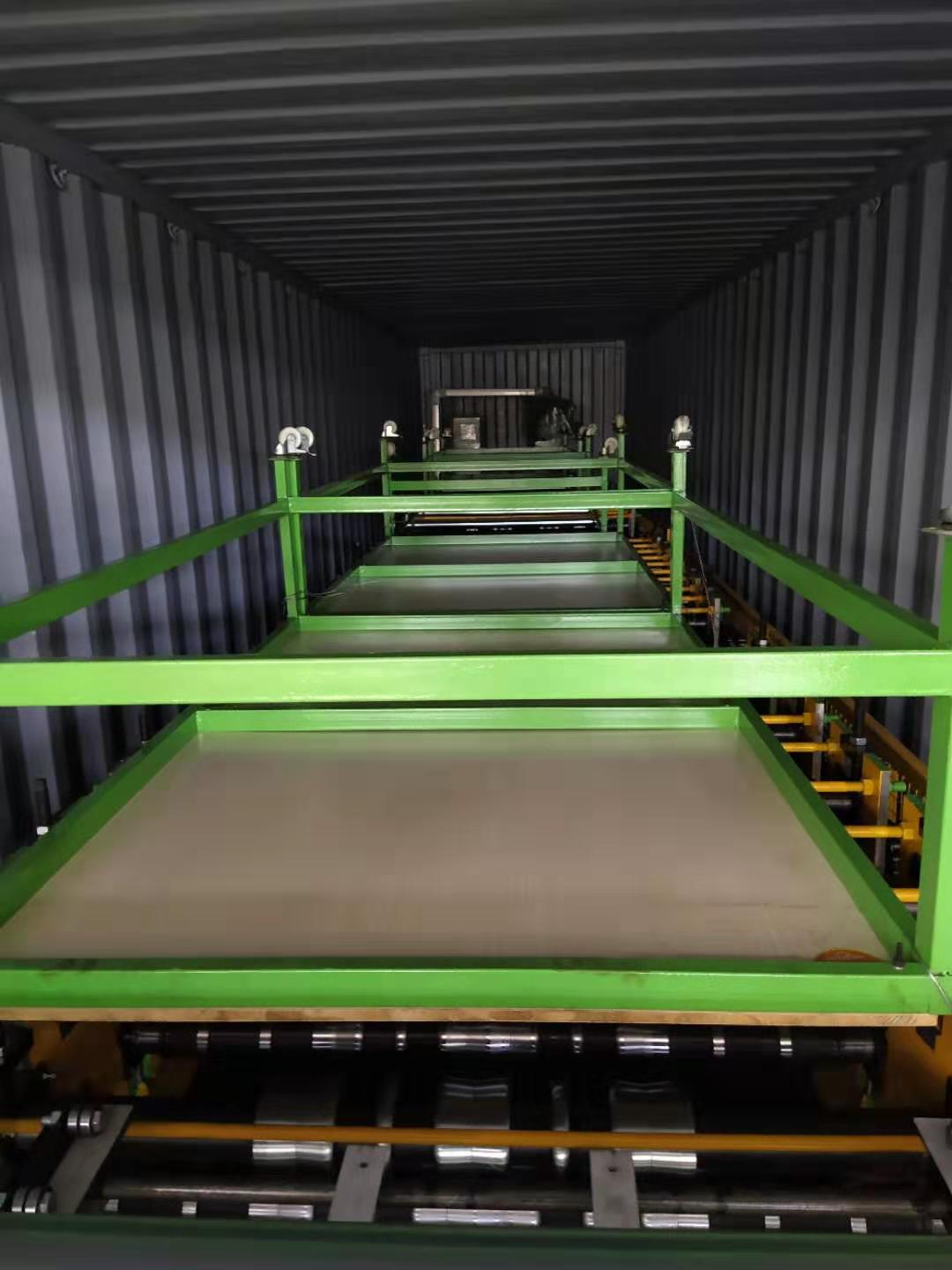

The loading pictures
|
