Small Size Electric Encapsulated Power Transformer 2VA Power 50Hz / 60Hz

Low frequency transformer encapsulated 7.5v pcb transformer,Epoxy encapsulated transformers

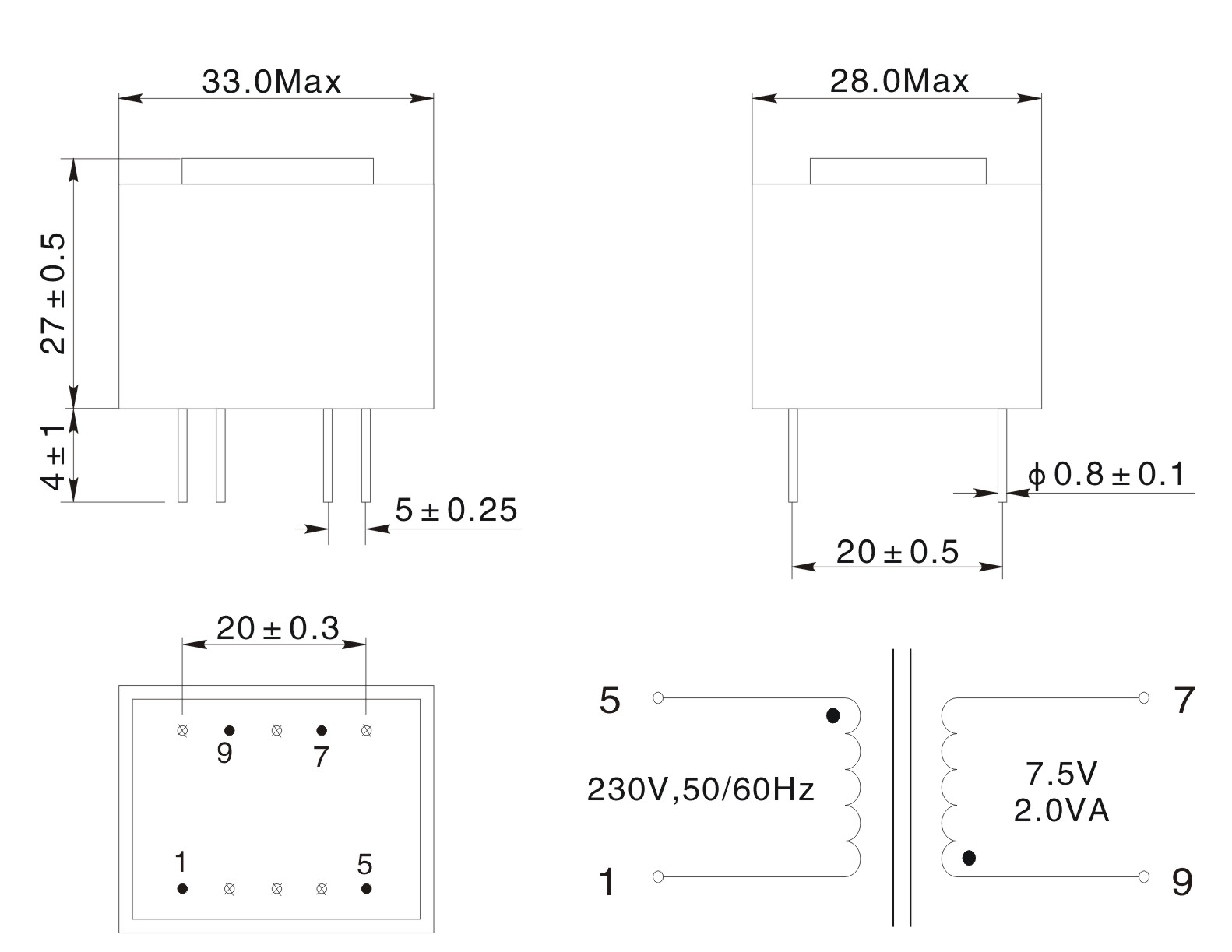

Electrical specification:

1. Pri Voltage: 230V,50/60Hz
2. Load sec voltage: 7.5VAC
3. Load sec current: 266mA
4. Electric strength: 3600V/AC,10mA,2sec

Characteristics:

1. acuum epoxy resin encapsulated,100℃/6hours High temperature aging,long woking life 20 years, and with high delectric strength.
2. Adopt superior quality Silicon steel sheet, with low temperature riseand high efficiency.
3. PBT Engineering plastics,environmental protection,inflaming retarding Non-defrmation of 120 degrees.
4. Reasonable structure,convenient installation,low noise,strong earthquake,airtight waterproof,moistureproof.
5. Work temperature:-30℃~+70℃
6. Insulation grade:B grade(130℃)
7. UL94-V0
8. Dielectric strength:4000V AC/min 5mA

Note: Product specifications can be customized.

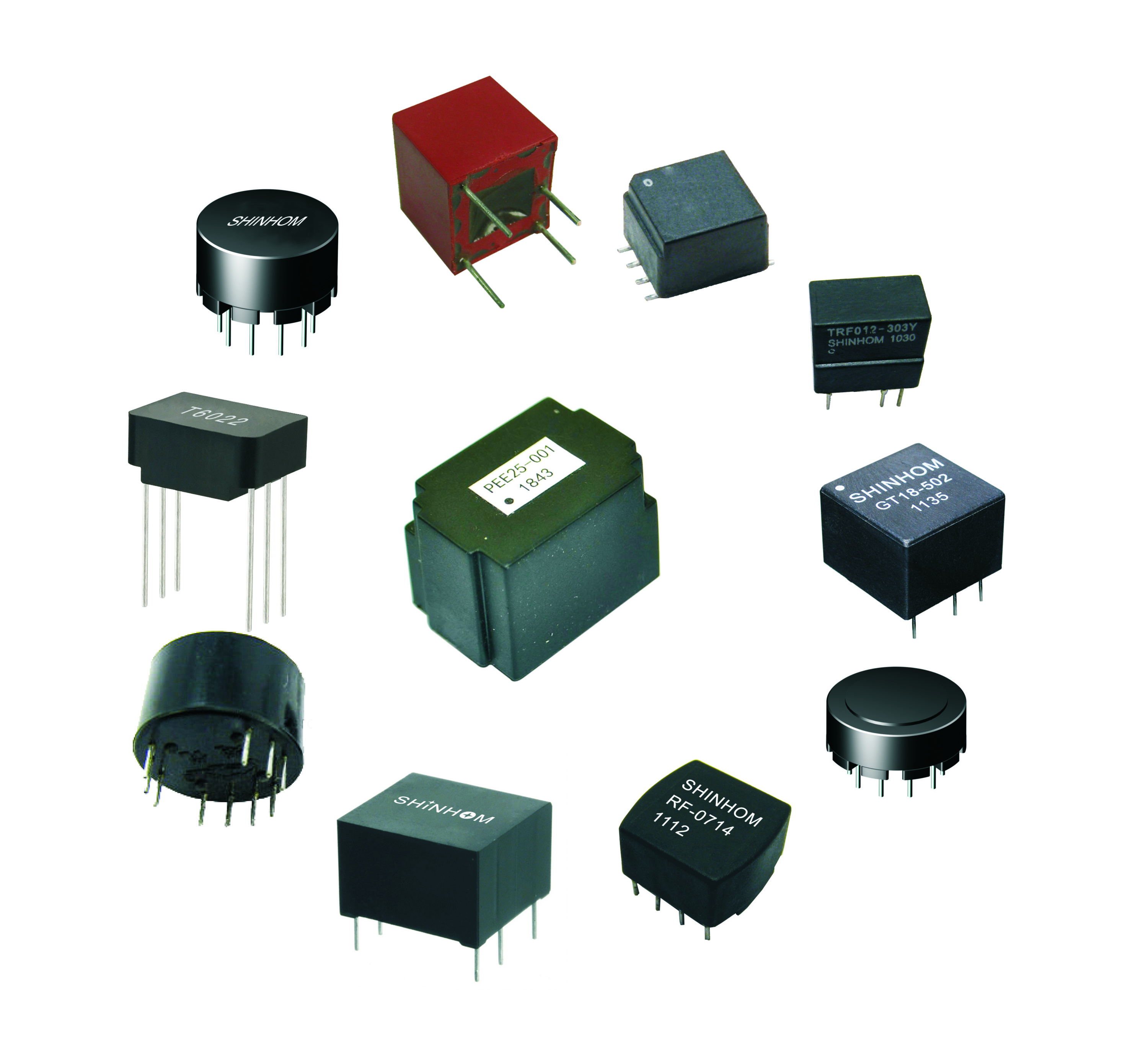

    Shaanxi Shinhom Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 20 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, shinhom has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
