| Categories | Interactive whiteboard |
|---|---|
| Brand Name: | MJK |
| Model Number: | MJK-FR08 |
| Certification: | CE,Rohs |
| Place of Origin: | china |
| MOQ: | 1pcs |
| Price: | US$398 |
| Delivery Time: | 3-25days |
| Packaging Details: | wooden case |
| Size: | 8", full viewing angle, 170° IPS LCD |
| Product name: | Face Recognition Time Attendance System Biometric Access Control Solutions Entrance Door Facial Recognition |
| Dynamic Recognition: | Support 20000 faces, 1:N, 1 million records |
| Os: | Android |
| Technology: | Face tracking, verification, face anti-spoofing, silent live detection |
| Dimension: | 260 x 160 x 26mm |
| verification time: | <0.7s |
| Recognition way: | face, card, face&card |
| Detection distance:: | 0.35m-1.2m |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/Month |
Face Recognition Terminal Features
- Dynamic detection to solve the deception of various photos on
various carriers.
- Nighttime infrared, RGB fill light.
- Support external QR code scanner and ID card reader.
- Support RS232 serial port, Wiegand 26 output, output content
support configuration.

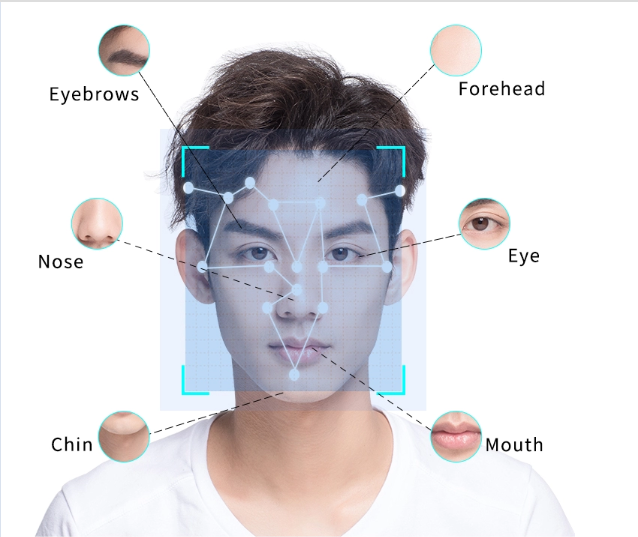

- Adopt dynamic video face detection and tracking recognition
algorithm based on video stream.
- Support the device to store 10,000 database locally.
- Fast recognition
(a) Face tracking and detection takes about 20ms.
(b) Face feature extraction takes about 200ms.
(c) In vivo detection of face comparison time 0.6ms (1000 people
library, multiple recognition average), 0.8ms (10000 people
library, multiple recognition average).
- Support public network and LAN deployment mode.
- Support HTTP interface interface docking.
- Support screen display content configuration.
Face Recognition Terminal Product Parameters:
| Screen | Size | 8", full viewing angle, 170° IPS LCD | |
| Resolution | 800*1280 | ||
| Camera | Type | RGB | TOF |
| Resolution (horizontal × vertical) | Support 1080P/960P/720P/VGA | 640× 480 Pixel | |
| Field of view (horizontal × vertical) | 74° × 56° @960P (Default) | 80° × 60° | |
| 63° × 37° @1080P | |||
| 74° × 42° @720P | |||
| 74° × 56° @VGA | |||
| Frame rate (FPS) | Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P | MAX 30FPS | |
| Detection distance (unit: meter) | 0.35-1.2 | ||
| light source | 850nm VCSEL | ||
| Working temperature (degree Celsius °C) | 0℃-50℃ | ||
| Core parameter | CPU | 6 cores, clocked at 2.0GHz | |
| RAM | 2G | ||
| ROM | 16G | ||
| OS | Android 7.1.2 | ||
| Parts | Fill light | Infrared, LED fill light | |
| Network module | Support wired, wireless (2.4GWi-Fi), wireless (USB external) | ||
| Bluetooth Module | 4.0 | ||
| 4G communication module | Optional (built-in or external) | ||
| ID card reader | Optional (built-in or external) | ||
| GPS | Optional (built-in or external) | ||
| Port | USB | USB2.0 1 | |
| RD232 | RS232 serial port, 2.5mm terminal block 2P | ||
| Relay output | 2.5mm terminal block 3P | ||
| Wiegand interface | 2.5mm terminal block 3P, support Wiegand 26 | ||
| Wired network interface | RJ45 Gigabit network | ||
| General parameters | IP Protection | IP54 | |
| Power | DC12V (±10%) /3A | ||
| Operating temperature | -20℃ ~70℃ | ||
| Working humidity | 10%~90 % | ||
| Power consumption | 22W MAX | ||

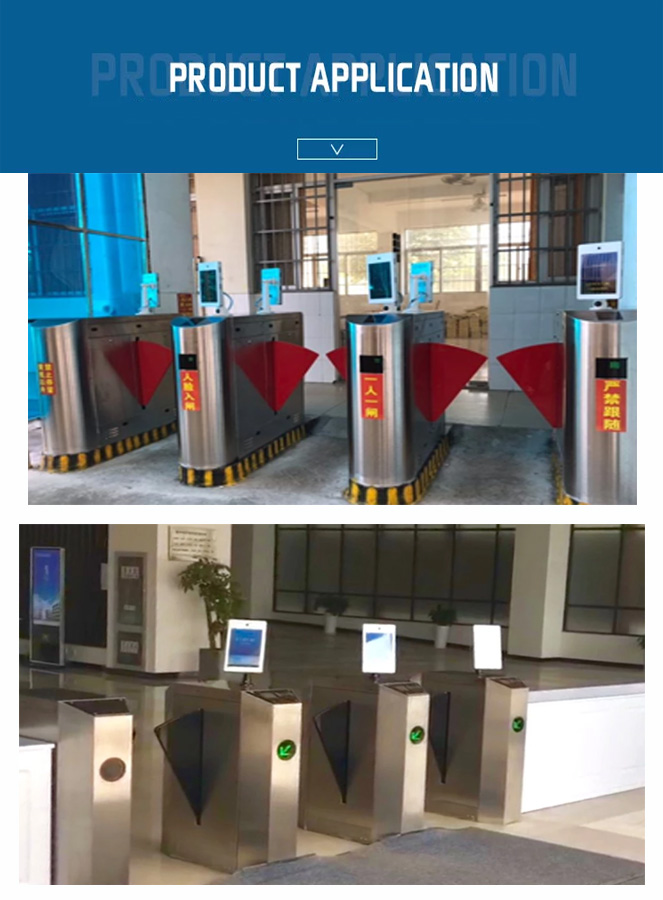

| Installation method | Wall bracket installation, gate bracket installation | ||
| Equipment size | 239.2mm*123.2mm*26.4mm | ||
| Weight | ≈1050g | ||

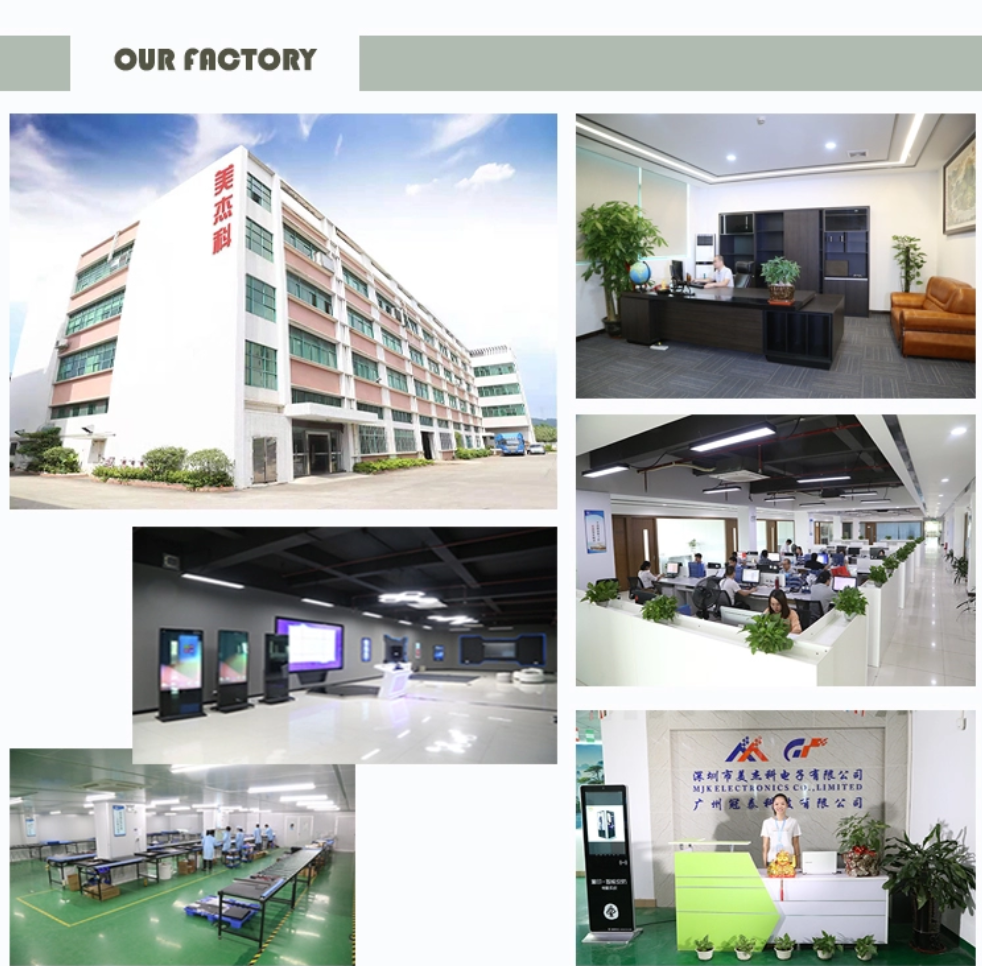

MJK ELECTRONICS CO.,
was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.
We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.
MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.
Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete after-sale service. We have and will always try our best to meet every possible demand of our customers.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D
team,manufacture,quality control team,sale and after-sale service.
Q2: How many engineers you have?
A: We have 15+ hardware engineers and 20+ software engineers.
Q3: What is your MOQ?
A:Any quantity is acceptable for your order, and the price is
negotiable for large quantity.
Q4:what brand of screen are you using?
A:we always use LG,AUO ,BOE, Samsung, and CHIMEI screens etc.
Q5: Do you have your own enclosure factory?
A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.
Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after
delivery.
Q7: What will you do if the product be nature damage within
warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite
simple questions to help us confirm the questions and give you a
report and the free replacement will be send.
Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome
in our company.
|
