| Categories | Inductive Proximity Switch |
|---|---|
| Model Number: | PL-08Y2 |
| MOQ: | 100 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000only 8day |
| Place of Origin: | China |
| Brand Name: | Zhongde |
| Certification: | CE |
| Name: | Inductive Proximity Sensor |
| Feature: | Multifunctional |
| Material: | ABS |
| Voltage: | AC |
| Output Method: | NPN/PNP |
| Induction Method: | Normally Closed |

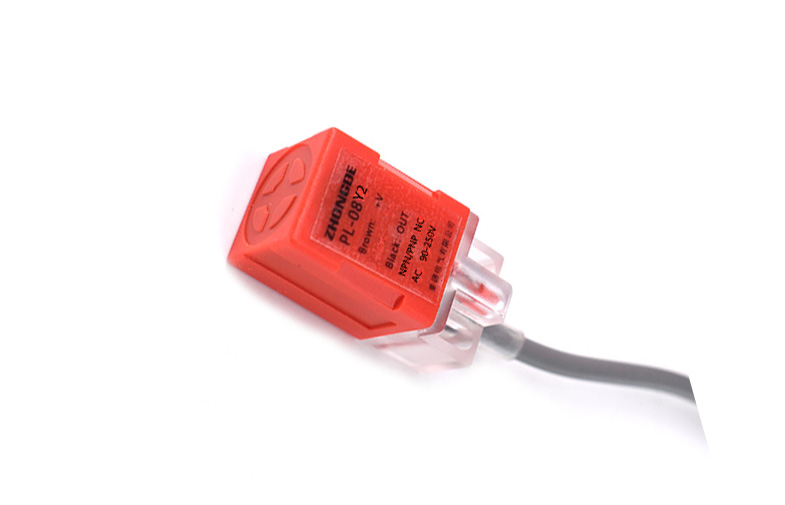

Multifunctional AC Inductive Proximity Sensor Strong Environmental Resistance
Features
Details
Two-wire
NPN/PNP
Normally closed
AC
Parameter
| Lag distance | Less than 10% of the detection distance |
| Detecting objects | Magnetic metal (detection distance is reduced when non-magnetic metal) |
| voltage | DC : DC 12~24 (6~36V) pulse (p-p) below 10% |
| AC : AC 110~220V (36~250V) 50/60Hz | |
| Current consumption | N.P : ≤13mA |
| D : ≤0.8mA | |
| A : ≤1.7mA | |
| Control output | N.P : ≤300mA |
| D : ≤200mA | |
| A : ≤400mA | |
| Loop protection | N.P.D : reverse connection protection, surge absorption, load short circuit protection |
| A : surge absorption | |
| Ambient temperature | -30~+65°C (no icing, no condensation) |
| Ambient humidity | -35~95%RH |
| Insulation resistance | 50MΩ or more (DC500 megohmmeter) (between charging part and housing) |
| Withstand voltage | AC 1000V 50/60HZ 1min (between charging part and Housing) |
| Temperature effect | -30~+65°C: detection distance error ±15% at +23°C |
| -25~+60°C: detection distance error ±10% at +23°C | |
| Voltage effect | 6-36V (90-250V) : ±15% of detection distance error |
| 10-30V (220V) : ±10% of detection distance error | |
| Protection level | IP67 (IEC) |
| Material | Housing: ABS |
| Detection surface: ABS |
Note:Please read the "Precautions" of the product manual before use.
Application
The inductive proximity switch can be used to detect metallic objects that interact with a magnetic field. Non-metallic substances such as liquids or some kinds of dirt do not interact with the magnetic field, so an inductive sensor can operate in wet or dirty conditions.
|
