Obd2 Bluetooth ELM327 Automotive Code Readers Scan Tools Konnwei KW903

Categories	Automotive Code Readers Scan Tools
Brand Name:	KONNWEI
Model Number:	KW903 bluetooth
Certification:	CE Rohs FCC
Place of Origin:	China
MOQ:	100 Pieces
Price:	Negotiable
Payment Terms:	MoneyGram, Western Union, T/T
Supply Ability:	30000 pieces per week
Delivery Time:	1000pieces in 7 days
Packaging Details:	Package Size:127.54cm 100pcs/ Ctn, 3925.536cm 8.9KG/carton
Type:	elm327 bluetooth scanner
Name:	bluetooth scanner
Connection:	bluetooth version 3.0
Protocols:	J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN
Description:	OBD2 bluetooth
Support System:	android mobile phone
Function:	fault code reader
Model name:	Konnwei KW903 BT

Contact Now

Add to Cart

Company Info.

Shenzhen Jiawei Hengxin ( Konnwei ) Technology Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Obd2 Bluetooth ELM327 Automotive Code Readers Scan Tools Konnwei KW903

Obd2 Bluetooth ELM327 Automotive Code Readers Scan Tools Konnwei KW903

Application	Can detect 12V gasoline and diesel cars
IC Chip	25K80 Chip
Color	6 Colors: Black White/ White Red/Black / Black Orange/Black Red/ Red
Languages	English is default language, please select the language you need on phone settings interface

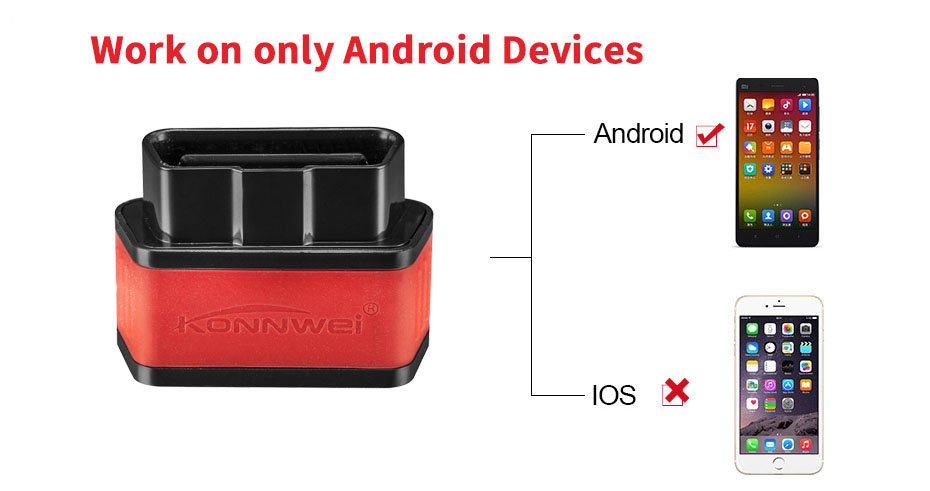

Support systems	android mobile phone, free software torque; Don't support upgrade system and print IOS system unavailable
Battery Function	N/A
Support protocols	ISO 9141 KWP2000 SAE J1850 CAN J1850 VPW J1850 PWM
Packing list	KW903 Bluetooth Scanner & Software CD & English User Manual
Packing details	Package Size :127.54cm Net Weight :0.03kg Gross Weight:0.084kg Qty/Ctn: 100pcs/ Ctn Carton Size: 3925.536cm Carton Weight: 8.9KG/carton
Main features	Display real-time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature. Mini size

The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for android smart phone or Windows PC. With associated diagnostic procedures, Free obd software provided in the package ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.

Protocols :

0. Automatic T 1.SAE J1850 PWM(41.6Kbaud)

2. SAE J1850 VPW(10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP(fast init,10.4 Kbaud)

6. ISO15765-4 CAN(11bit ID,500 Kbaud)

7. ISO15765-4 CAN(29bit ID,500 Kbaud)

8. ISO15765-4 CAN(11bit ID,250 Kbaud)

9. ISO15765-4 CAN(29bit ID,250 Kbaud)

A. SAE J1939 CAN(29bit ID,250*Kbaud)

B. USER1 CAN(11*bit ID,125*Kbaud)

C. USER2 CAN(11*bit ID,50*kbaud)

Default settings(user adjustable)

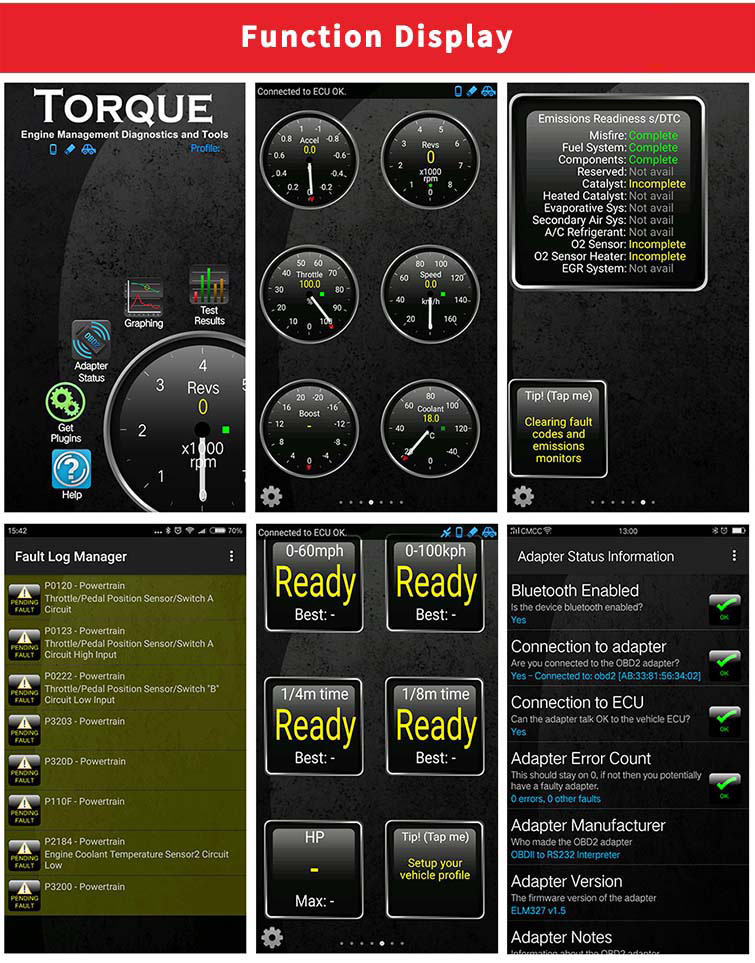

OBD-II Software for ELM327 bluetooth is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

The program lets you perform the following operations

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status

- Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.
- If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN
- Small size and compact structure, plug and play.

Packing list
1 * KW901
1 * User's manual
1 * CD
