Android System Stretched Bar LCD Display For Shopping Mall

Categories Stretched Bar LCD Display
Brand Name: YODA
Model Number: Y480SLD-A01
Certification: CE,ROHS,FC
Place of Origin: Guangdong
MOQ: 1 piece
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS/per month
Delivery Time: Within 7~15 days after order upon payment receiving
Packaging Details: Plywood Case / Honeycomb Box / Flight Case
Size: 48inch
Pixel Pitch: 103.65(H) x 310.95(V)um
Color Deepth: 8 bit, 16.7M
Brightness: 1000cd/m2
Resolution: 3840*720
Input Voltage: AC100~240V 50 /60 HZ
Panel Brand: BOE/SAM/LG
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Android System Stretched Bar LCD Display For Shopping Mall

Android System Stretched Bar LCD Display For Shopping Mall


Details of product :
1. Waterproof screen, extend the service life of the product.
2. Good quality LCD panel, BOE,SAM and LG Brans are available for you to choose.
3. UHD 4K High resolution, display content clearly visible.
4. The working time can be as long as 50,000 hours, so the product life need not worry.
5. Support USB playback, support hot plug, content update convenient and fast.
6. Firm and durable case, made of Metal or Aluminium plate.
7. Display large amount of information,Easy to color.
8. 4mm tempered glass protection screen.






LCD Panel

Panel Size48inch
Active Area1194.048(H) x 223.884(V)mm
Dimension1248.5*278.4*45.2mm
LCD Typea-Si TFT active matrix
Color Deepth8 bit, 16.7M
Resolution3840*720
Pixel Pitch103.65(H) x 310.95(V)um
Pixel ArrangementPixel RGB Vertical stripe
Display ModeNormally Black
Viewing Angle178(H)/178(V)
Power≤50W
Brightness1000cd/m 2





Motherboard

CPURockchip RK3288,Quad core Cortex A7 1.8 GHz
RAMDDR3 2G
StorageEMMC 8GB/16G/32G Optional(Standard 8GB)
LCD InterfaceLVDS
Voltage3.3V/5V/12V optional



Network

RJ45
wifi,Wi-Fi 802.11b/g/n
Blueteeth 4.0

3G/4G(optional),WCDMA,EVDO,CDMA,
GSM850/900/1800/1900MHz/2100MHz


Interface

1*HDMI 1.4 output 1080P
2*USB
TF up to 64GB
10W*2 8Ω Speaker
Power SupplyDC12V





Software

Operating SystemGoogle Android 5.1 System
LanguageMulti-Language Supported




Video

Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263 including sorenson spark ,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps

AudioMP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
ImageJPG,BMP,PNG,GIF


system management

File Management
Android System,open root access
Time switch
OTA remote upgrade(customized)

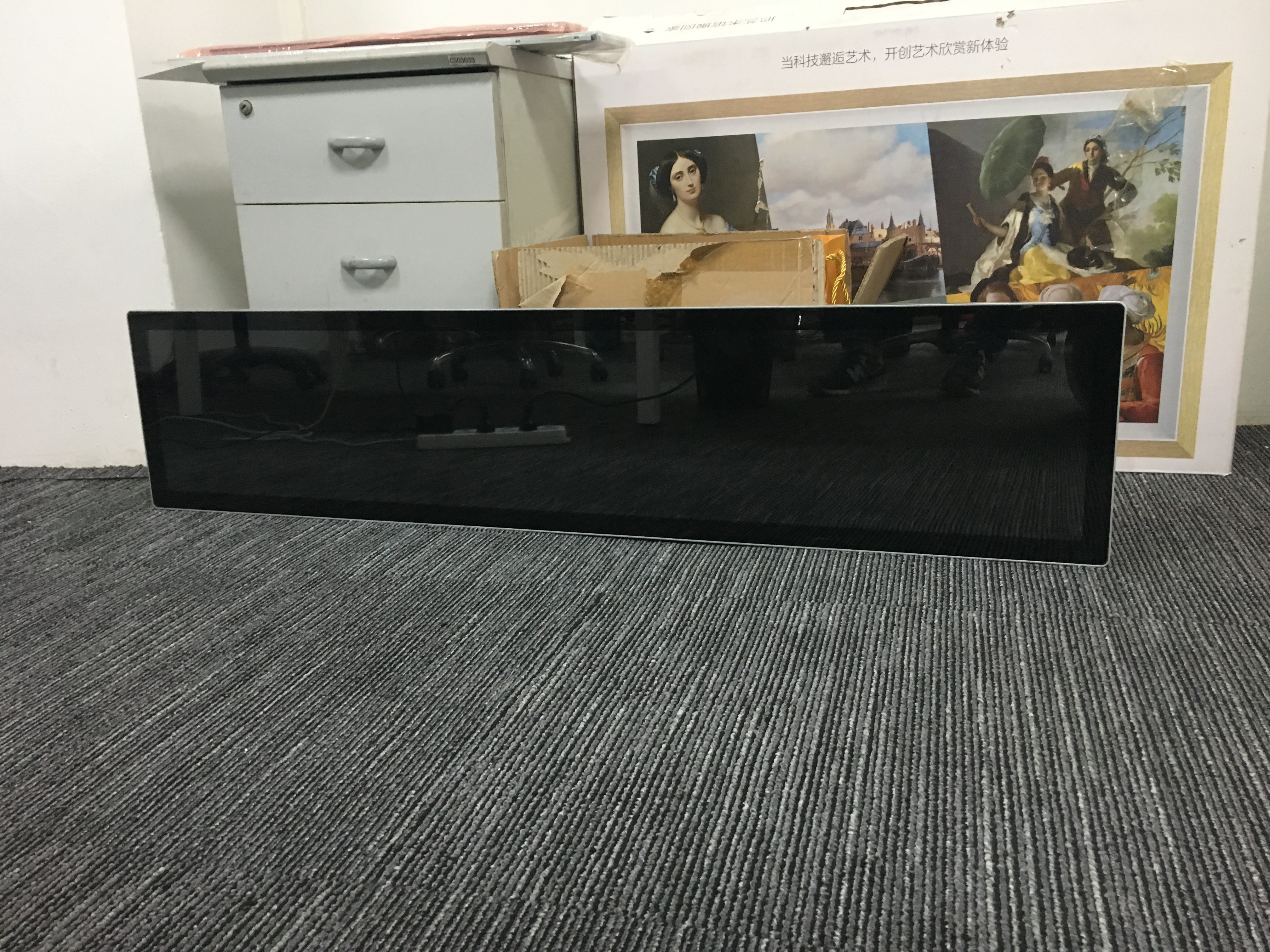

Real-picture



Product's details

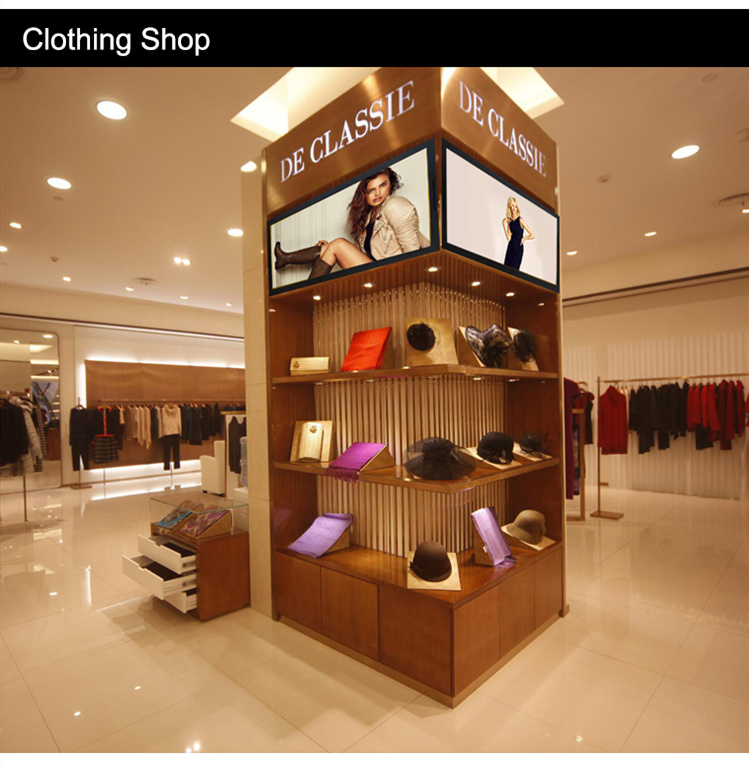

Application

FAQ


Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.


Q:What brand of screen is used?
A:All our screen adopt A+BOE panel,Durable Aluminum Frame Design with Tempered Glass Surface.


Q:Does your company support customization?

A:Yes,we support customization.Customizable festures include,appearance,camera,brightness,logo,NFC,scanner,printer,discrete graphics,wheels,color,etc.


Q:How to ensure product quality?

A:Triple detection:

1) Raw material testing.

2) Detection after assembly is completed.

3) Detection after 48 hours of running.


Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.


Q: May i have my logo on my products?
A: Yes. We offer logo customized service.

Q:How long is the warranty time for your products?
A:1-year warranty,lifttime maintenance.


Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.
