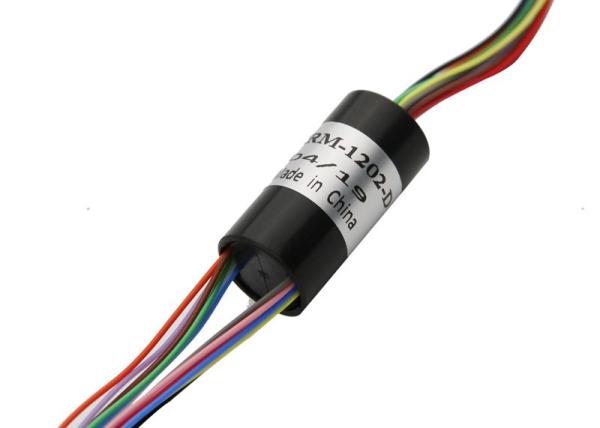

IP54 Rotary Workbench Capsule Slip Ring 12 Circuit 2A Gold Contact 240VAC
Description
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part. The series of these compact sling ring capsules permit enormous versatility in dealing with the requirements of system size when there are no bigger models available.
The LPM-12U super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
It allows tremendous flexibility in dealing with system size restrictions.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Circuits | 12 |
| Voltage | 240 VAC/DC |
| RatedCurrent | 2 amp per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
| Housing | Engineering plastic or metal |
Product drawings

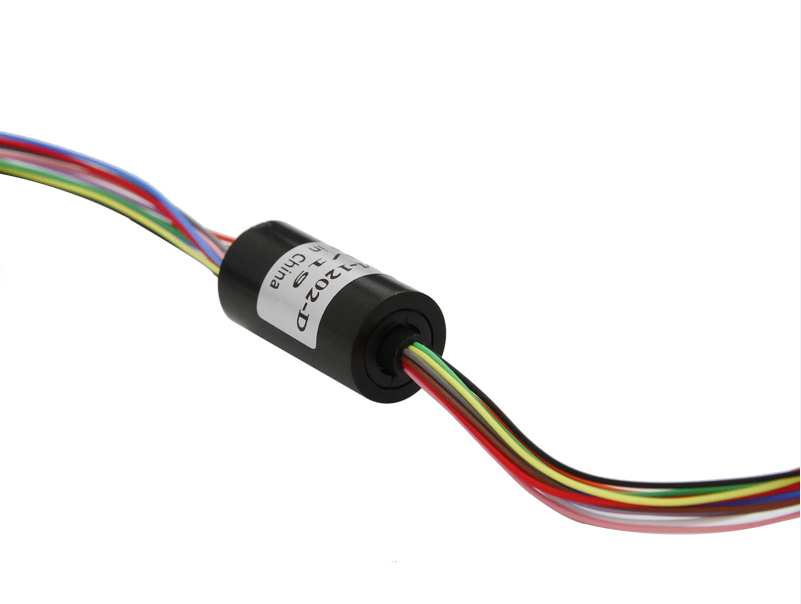

Product display
|
