Transmitted Polarized Light Microscopy Asbestos Training Professional Grade

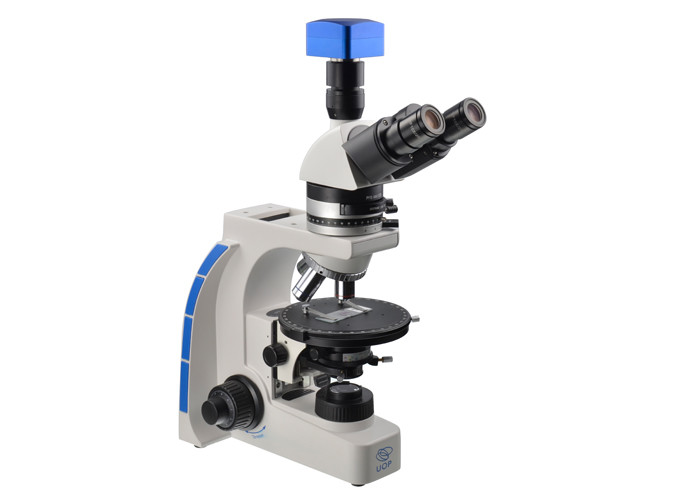

Professional Trinocular Head Transmitted Light Polarized Light Microscope

Polarized light microscopy can mean any of a number of optical microscopy techniques involving polarized light. Simple techniques include illumination of the sample with polarized light. Directly transmitted light can, optionally, be blocked with a polariser orientated at 90 degrees to the illumination. More complex microscopy techniques which take advantage of polarized light include differential interference contrast microscopy and interference reflection microscopy. Scientists will often use a device called a polarizing plate to convert natural light into polarized light.[1]

These illumination techniques are most commonly used on birefringent samples where the polarized light interacts strongly with the sample and so generating contrast with the background. Polarized light microscopy is used extensively in optical mineralogy.

TECHNICALSPECIFICATIONS

EYEPECE(S)

• Extended EWF 10x/20 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)

NOSEPIECE

• Revolving and reversed nosepiece for 5 objectives

OBJECTIVES

• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

• Infinity polarizing achromatic objectives 4x/0.13 10x/0.30 20x/0.45 S40x/0.70 S60x/0.80 ( optional)

• Infinity LWD metallurgical objectives 5x/0.10 10x/0.25 20x/0.40 S50x/0.70 ( S80x/ 0.80 S100X /1.25 dry optional)

STAGE

• Round Stage Dia 120mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable

CONDENSER

• Abbe NA 1.25, with Dia 2-30mm Iris Diaphragm, with Fillter.

FOCUSING

• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 20 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION

• 6V 20W for Transmitted light with internal 100-240 V power supply

PACKAGING

• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.

CONFIGURATION LIST

Chongqing UOP Photoelectric Technology Co., Ltd prides itself in offering superior customer service. Choosing a microscope can be a daunting task, especially when you are not sure exactly what you need. Sometimes just trying to figure out how much magnification you need can be tricky. At UOP we are here to help you and we hope you will find it easy to both learn about microscopes and make educated decisions based on your needs. If you have any questions about microscopes, or are not sure exactly which microscope you need, please contact us.
