RTD/TC Input Digital Signal Isolator Analog Output 0-5V 4-20mA Converter 24V DC

Input

Input signal: PT100, Cu50, Ni1000 and other thermal resistance; B, E, J, K, N, R, S, T and other thermocouples; voltage (maximum range 0-10V); millivolts (maximum range 0-100mV); Current source (4- 20mA); transmitter (distribution), current 4-20mA; resistor, potentiometer (maximum range 0-2K)

Distribution voltage: ≥16V

Measuring range: depending on the type of sensor used

Output

Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V

Output load resistance: RL ≤ 500Ω (when the output is a current signal); RL ≥ 10KΩ (when the output is a voltage signal)

Basic parameters

Power supply: DC24V, ±10%

Current consumption: ≤50mA (one input and one output 24V power supply, 20mA output); ≤70mA (one input and two output, 24V power supply, 20mA output)

Basic accuracy: 0.1% F.S.

Response time: 0.5S

Insulation strength: 1500V AC / 1min (between input, output, and power)

Insulation resistance: ≥100MΩ (between input, output, and power)

Operating temperature range: -20~+55 degrees

Electromagnetic compatibility: in accordance with GB/T 18268 (IEC61326-1)

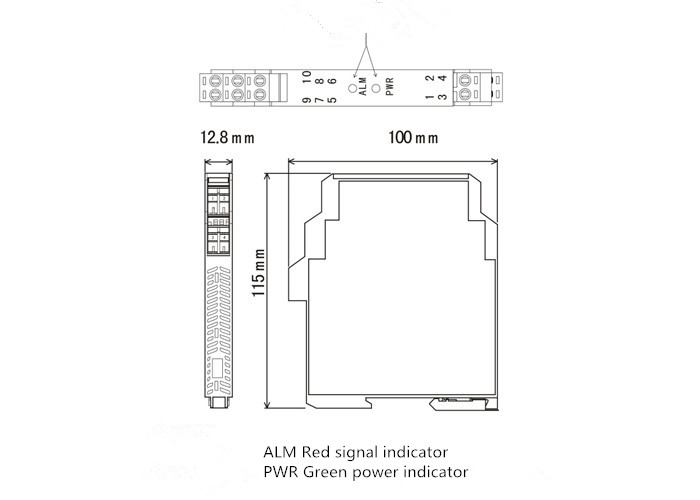

Dimension

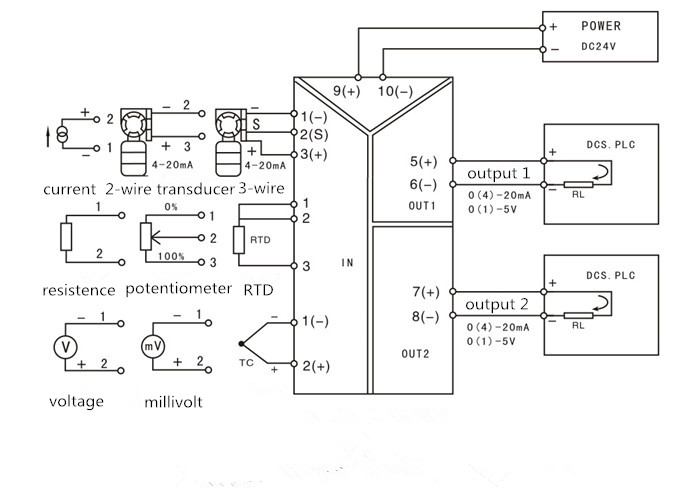

How to wire
