Multi Language Tire Pressure Temperature Monitoring System Bluetooth 4 Sensors

Categories Tyre Pressure Monitoring System
Brand Name: Yoelbaer or OEM
Model Number: YBC68
Certification: CE ROHS
Place of Origin: China
MOQ: MOQ : 30PCS
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/week
Delivery Time: 3-5 working days for mass order , samples have in stocks,
Packaging Details: Neutal color box, box size : 18.6X13.2X5 cm 0.3kg/set/ external sensors, 0.4kg/set/internal sensors
Warranty: 1 Years
Pressure range: 0-99psi/ 0-116psi
Support: IOS and Android System
Working temperature: -30°C-85°C
BLE Version: V4.0
Battery: CR1632-3V Lithium
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multi Language Tire Pressure Temperature Monitoring System Bluetooth 4 Sensors

Multi Language Tire Pressure Temperature Monitoring System Bluetooth 4 Sensors


Our TPMS with USA imported chip Freescale and Germany imported chip Infineon ,please DO NOT compare our quality with those use chip made in China,ours with CE ROHS certification . Please kindly noted


Attention : All products have in stocks, can ship out within 48hours with factory full inspection , best supply chain for Amazon, Ebay, Aliexpress ect.

External Battery lifespan : Apbout 1-3 years(Depending on driving time ) Easy DIY installation done in 10 minutes.
Internal Battery lifespan: About 3-5 years(Depending on driving time ) Need to install at Car Service Shop(4S Store)




Multi Language Tire Pressure Monitoring System Bluetooth 4 Sensors for Android and IOS Mobile Phone TPMS APP
External Sensor Specification
1. NameBLE APP
2. Battery Life> 3 years/ 30,000 km
3. Operating Voltage3v
4. Optional pressure unitsPsi , kPa, Bar
5. Storage Temperature-30℃-85℃
6. Working Temperature-30℃-80℃
5. Alarm Pressure>46.5Psi or <26.0Psi
6. Pressure Accuracy
±1.5PSI
7. Operating Frequency
2.4GHZ
8. Processor
8 bits MOU/S08
9. Core
ARMMO
10. Working Humidity
95% Max
11. Waterproof GradeIP67
12.Transmitted Frequency433.92MHZ
13.Operating Current540uA
14. Lithium BatteryCR1632
15. Battery Capacity345mAh
16. SupportAbove Android4.3/IOS7/Bluetooth4.0


What Is BLE TPMS

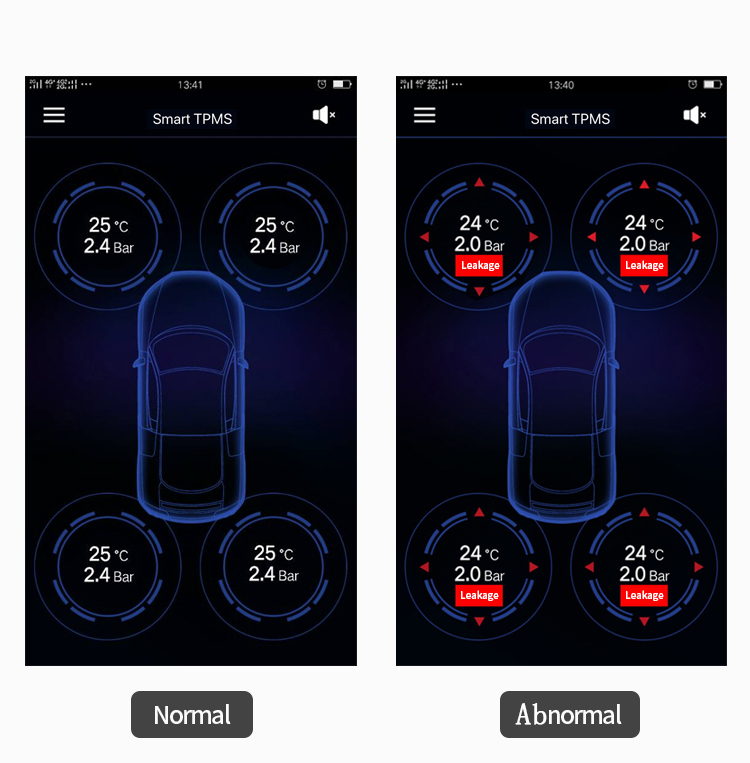

Bluetooth Tire Pressure Monitoring System, also called BLE TPMS,using pressure monitoring sensors within each tire to monitor tire pressure levels. Combined with the users' smart phone, it lets driver get the real-time tire pressure data, temperature data and status, warning messages without the need for extra cables or an extra display device.
Main Features:
Intelligent Alarm
1. Fast Leakage Alert
It will start when the tire pressure leakage over 5Kpa in 5s
2. Low Leakage Alert
It will start to warn when the tire pressure is under the presupposed lower limit
3. High Pressure Alert
It will start to warn when the tire pressure is over the upper limit
4. Low Pressure Alert
It will start to warn when the tire pressure is under the lower limit
5. High Temperature Alert
It will start to warn when the inner tire temperature is over the upper limit
6. No Signal Alert
It will start to warn when the tire condition can not be detected over time
7. Lower Power Alert
It will start to warn when the battery voltage is under the presupposed limit
