| Categories | Outdoor Voltage Transformer |
|---|---|
| Brand Name: | GFUVE |
| Model Number: | JDZW-10RG |
| Certification: | CNAS, ICE61869-1,3 |
| Place of Origin: | BEIJING CHINA |
| MOQ: | 1PC |
| Price: | 1000USD/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000PCS/MONTH |
| Delivery Time: | 7DAYS |
| Packaging Details: | STANDARD EXPORT WOODEN BOX |
| Using: | 10kv outdoor voltage transformer |
| Application: | 220V, 120V power supply |
| Accuracy: | 0.2%, 0.5%,1%, 3% |
| Burden: | 600VA max |
| Voltage level: | 3kv, 6kv, 8.4kv, 10kv |
| Material: | EPOXY RESIN & SILICON RUBBER |
| Color: | red |
| Ratio: | 10KV/220V, 10KV/100V, 10KV/120V, 8.4KV/120V |
| Weight: | 38KG |

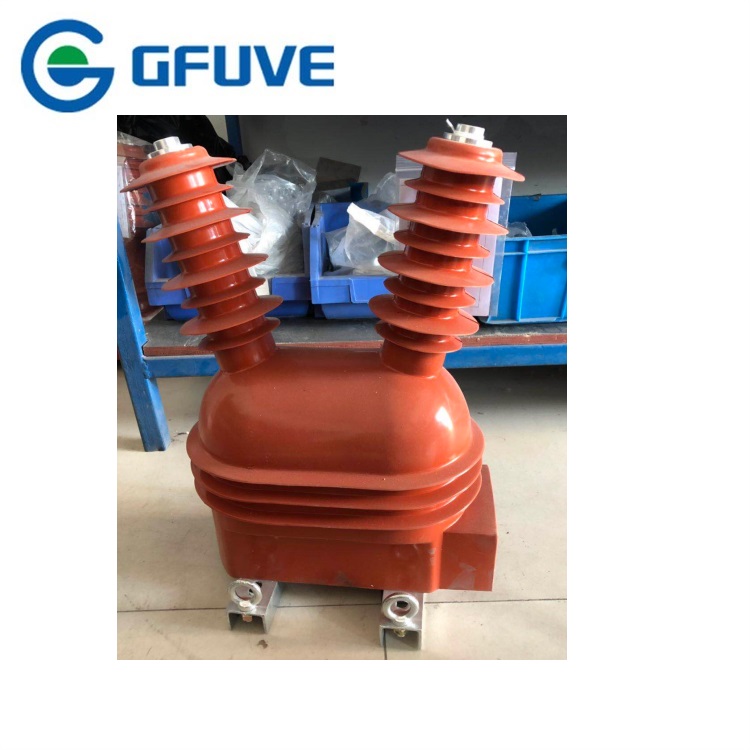

JDZW-10RG EPOXY RESIN SILICON RUBBER OUTDOOR VOLTAGE TRANSFORMER FOR POWER SUPPLY
Outdoor voltage transformer of the type JDZW-10 is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage less than 12kV electric system. It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~70℃), high altitude, high humidity, high pollution or salt). This model JDZW-10 outdoor voltage transformer is also as voltage source to supply 220V voltage.
10kv Voltage Transformer , Find Complete Details about 10kv Voltage Transformer,Voltage Transformer,Outdoor Type Voltage Transformer,Three Phase Voltage Transformer from Transformers Supplier or Manufacturer-Beijing GFUVE Instrument Transformer Manufacturer Co., Ltd.
| Technical parameters | |
|---|---|
| Standards | IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13 |
| Rated Voltage | 10KV, 6KV, 3KV |
| Rated load | ≤1000VA |
| Rated frequency | 50Hz or 60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Single phase |
| Rated insulation level | 12/42/75KV, 7.2/32/60KV |
| With fuse | Yes,0.5A |
| Using type | Outdoor |
| Class of pollution | IV |
| Mechanical parameters | |
| Material | Epoxy resin |
| Weight (kg) | 38 |
| Operating conditions | |
| Operating temperature | -40°C to +60°C |
| Daily average temp | <+40°C |
| Storage temperature | -50°C to +70°C |
| Altitude | <1000 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
| Model | Rated voltage radio(V) | Accuracy class and Accuracy class combination rated secondary output(VA) | Limited output (VA) | Rated insulation level(KV) | Surface creepage distance (mm) | Once fuse (A) | Wt (KG) |
|---|---|---|---|---|---|---|---|
| JDZW-3 | 3000/100 | 0.2---40 0.5---80 1---200 3---300 | 1000 | 3.6/23/40 | 740 | 0.5 | 38 |
| JDZW-6 | 6000/100 | 7.2/32/60 | |||||
| JDZW-10 | 10000/100 | 12/42/75 | 0.2 | ||||
| 10000/220 | 0.2---40 0.5---80 1---200 3---600 | ||||||
| 10000/100/100 | 0.2/0.2---2S/2S 0.2/0.5---2S/2S 0.5/0.5---40/40 | 500/500 | |||||
| 10000/100/200 | 0.2/3---40/300 0.2/3---80/300 | 500/800 | |||||
| JDZXW-3G | 3000/√3 100/√3 100/√3 | 0.2/6P(3P)---20/100 0.5/6P(3P)---50/100 1/6P(3P)---150/100 3/6P(3P)---250/100 | 600 | 3.6/23/40 | 0.5 | ||
| JDZXW-6G | 6000/√3 100/√3 100/√3 | 7.2/32/60 | |||||
| JDZXW-10G | 10000/√3 100/√3 100/√3 | 12/42/75 | 0.2 | ||||
| 10000/√3 100/√3 100/√3 100/√3 | 0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/15/100 0.5/0.5/6P(3P)---40/40/100 | 300/300 | |||||
| JDZW2-3 | 3000/100 | 0.2---20 0.5---50 1---80 3---150 | 400 | 3.6/23/40 | 820 | 0.5 | 33 |
| JDZW2-6 | 6000/100 | 7.2/32/60 | |||||
| JDZW2-10 | 10000/100 | 12/42/75 | 0.2 | ||||
| 10000/220 | |||||||
| 10000/100/100 | 0.2/0.2---10/10 0.2/0.5---10/15 0.5/0.5---25/25 | 200/200 | |||||
| 10000/100/220 | 0.2/3---20/150 0.5/3---50/150 1/3---80/150 | 200/350 | |||||
|
