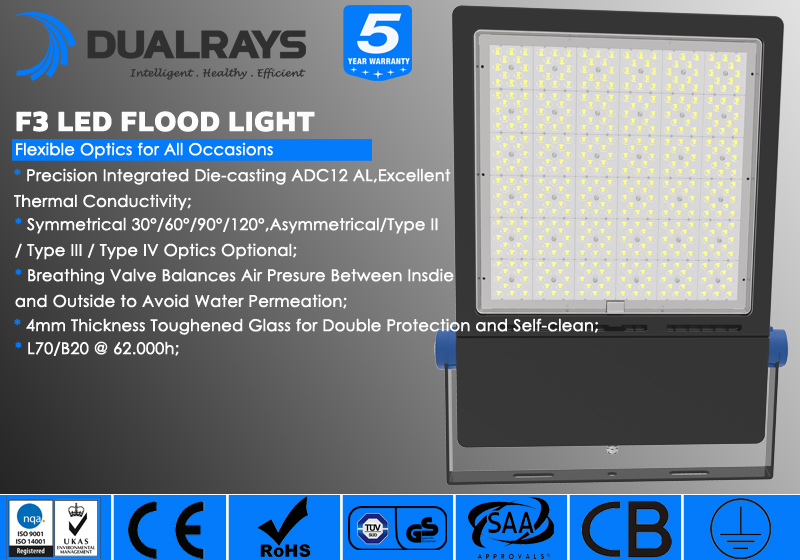

5 Years Warranty LED Flood Light With PIR Motion Sensor

5 Years Warranty LED Flood Light With PIR Motion Sensor

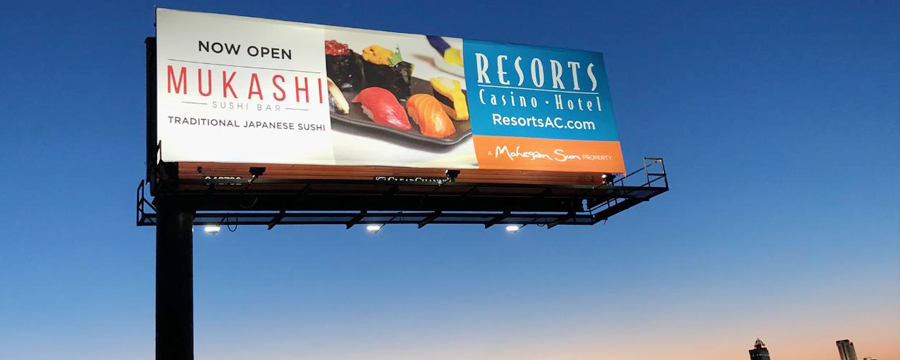

> 50W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

Model No.	DR-FL050-CGX	DR-FL100-CGX	DR-FL150-CGX	DR-FL200-CGX	DR-FL300-CGX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	6.800±5%	13.500±5%	20.000±5%	27.000±5%	33.200±5%
Efficiency/ lm/w	135LM/W
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	3000K/4000K/5000K/5700K/6500K
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.95
THD	<10%

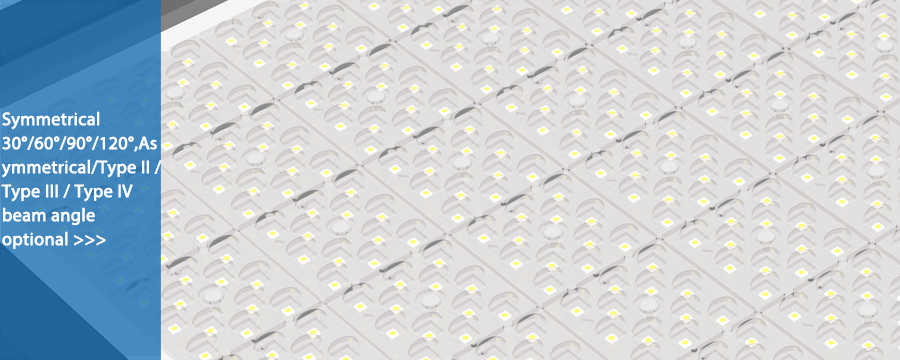

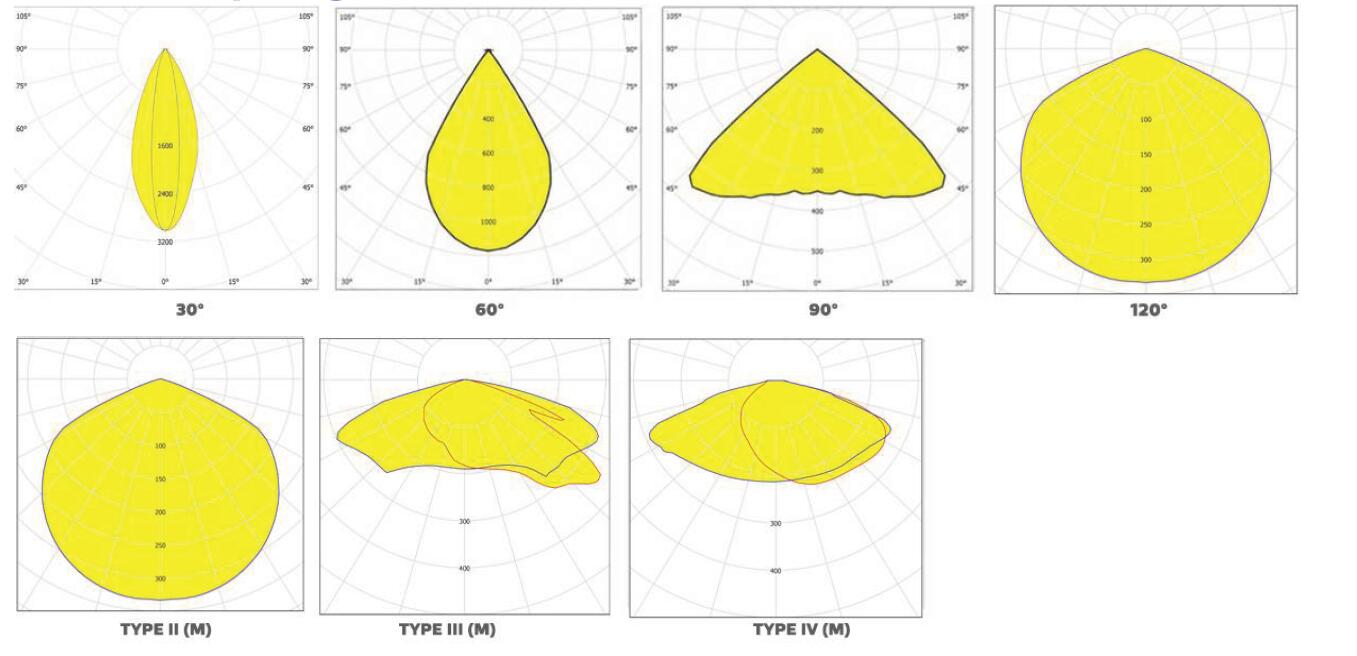

Beam Angle(Optional)	30° / 60° / 90° / 120°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver	Sosen, Meanwell ELG/ HLG
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Emergency(Optional)	Available
Protection Class	ClassⅠ
Material	Aluminum+PC
Lifespan/hrs	>62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)

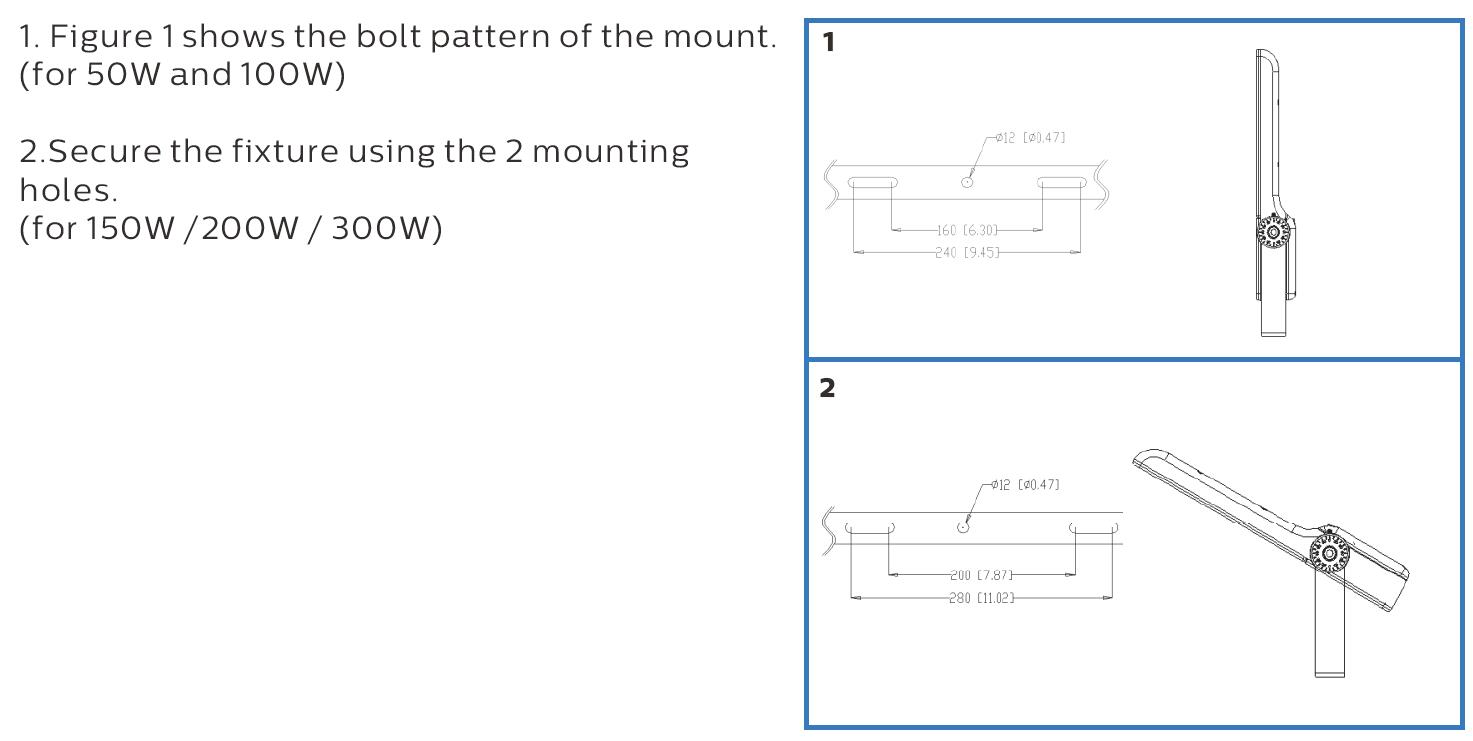

Installation(Optional)	Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate	CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
　

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

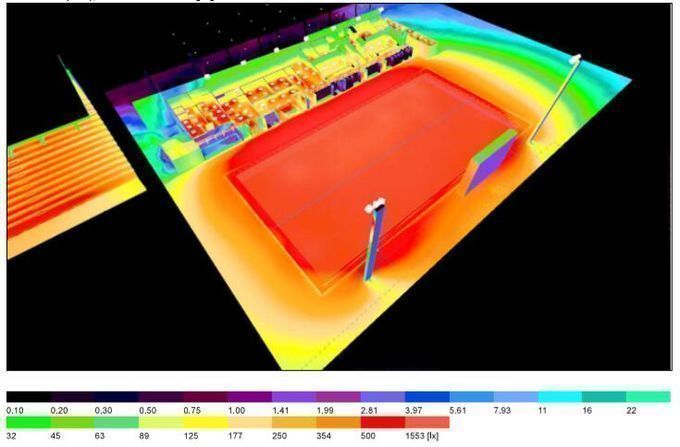

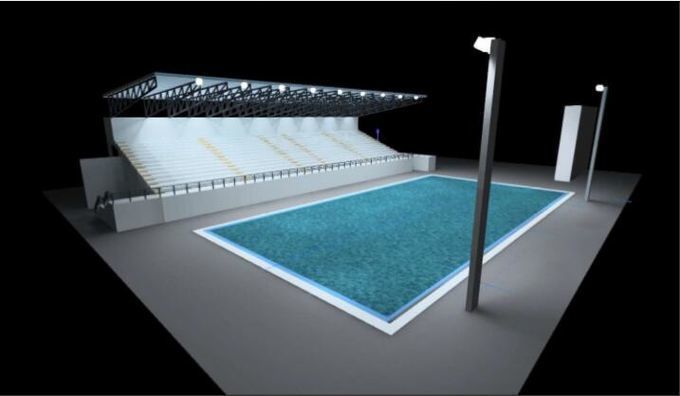

(DIALUX Simulation)

    As a specialist in modern, efficient ,advanced LED lighting for industrial and sport applications,DUALRAYS LIGHTING Co.,LTD. is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent, healthy and efficient industrial and sport LED luminaires.

    Our main products includes LED Triproof Light, LED High Bay, LED Flood Light, LED Sport Light,LED Street Light,Solar LED Street Light etc.

    We have strong R&D team which work closely to Marketing and Sales Department,and strict quality control system and facilities to ensure the quality, and we have built strategic partnership with the international top brands,such as CREE, LUMILEDS,NICHIA,MEANWELL, ect, we have set up our own engineering laboratory for safety test,such as the Photometric testing, EMI testing, EMC testing, Surge Testing, ESD testing, IES file etc.

    All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed,we focus on Western Europe and Oceania market , the LED luminaires have been completely proven to be independent innovations and intellectual property.

    We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

   In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

   DUALRAYS adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.

   DUALRAYS is practicing the enterprise management principle “Perfect or Nothing”.

   Technology Light Up Civilization!
