Bi Directional Half Height Turnstiles Stainless Steel 304 SUS Smart Card Intelligent

Categories Speed Gate Turnstile
Brand Name: Koten
Model Number: KT401
Certification: CE
Place of Origin: China
MOQ: Negotiable
Price: Negotiable
Payment Terms: by T/T, Western Union, Money Gram, and Paypal, 30% made in advance the balance paid before shipment
Supply Ability: 200units per month
Delivery Time: 3-45days depends on order quantity
Packaging Details: Packed in wooden cases, inner packed in carton
Material of housing: 304 SUS
Material of door: plexiglass
Dimension: 1400*300*1000mm
Open/close time: 1-2s
Power supply: AC110/220, 50/60Hz
Communication: RS485
Interface: electric level, impulse, dry contact signals
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

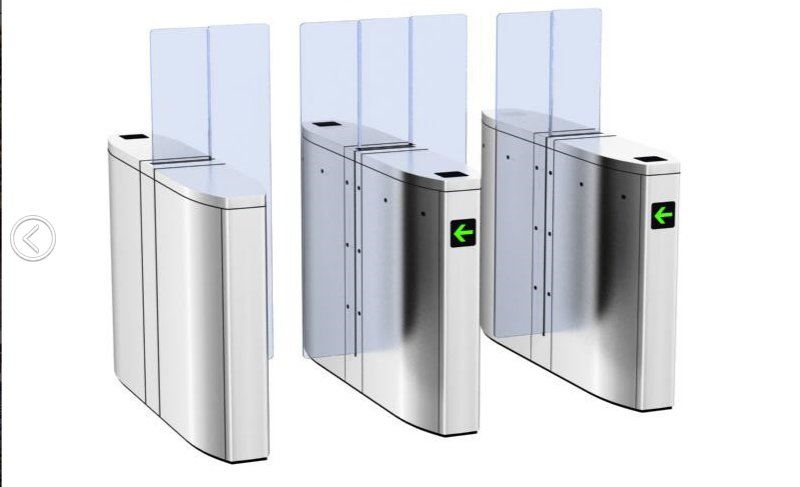

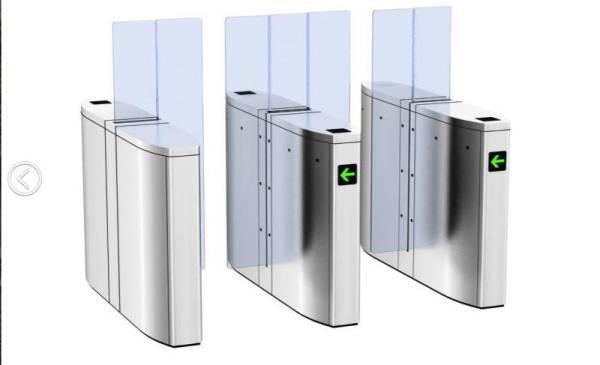

Bi Directional Half Height Turnstiles Stainless Steel 304 SUS Smart Card Intelligent

Bi Directional Half Height Turnstiles Stainless Steel 304 SUS Smart Card Intelligent


Summary

Intelligent Speed Gate provides a secure bi-directional entry control, while blending beautifully with high end environments. Some of the benefits of using Intelligent Speed Gate increased facility security; more organized entry/exit process; and a reduction in staff required to monitor guest/employee access.

All models can be integrated with nearly any access control system and provide quiet, highly-reliable operation and rapid throughput. A combination of integrated sensors and motorized barriers control access, block unauthorized entry attempts and detect "tailgating" on allowed entries. Sounds and lights alert when an unauthorized passage is attempted. Center cabinet designs allow for space-saving, multilane configurations.


Main Features

Self check and alarm function for convenient maintenance and use.

It is programmable through a built-in mini keyboard on the control panel.

Auto stop feature when blocked, prevent users from being nipped or hurt.

Sophisticated sensor prohibits un-authorized entry.

Gates automatically locked until opening signal is received.

Gates synchronization is adjustable.

Un-authorized/force entry triggers internal alarm system.

Auto reset function, automatic lock if the pedestrian hasn’t pass through. Passing time is adjustable.

Normally open/close optional

Fail safe open when powered off.

Ready for integration for various access controller such as card reader biometric, ticket access etc.

Single or bi-direction optional

Direct controlled and managed by a remote computer.

Length of cabinet optional


Technical parameters
Housing material304 stainless steel
DimensionL1400*W300*H1000mm
Width of glass gate285mm
Height of glass gate780mm
Standard passage width550mm
Net weight90Kg
Power24V DC
VoltageAC85-240V
Frequency50/60Hz
Communication interfaceRS485, distance<=1200M
Input interfaceDry contact signal/12V level signal/DC 12V pulse signal
Normal life-span3 million times
Transit speed40 persons/min
Opening/closing time1-2secs
Auto reset time10secs
Working environmentIndoor/outdoor
Working temperature-10 to 50Cels
Relative humidity≤90% no condensation
