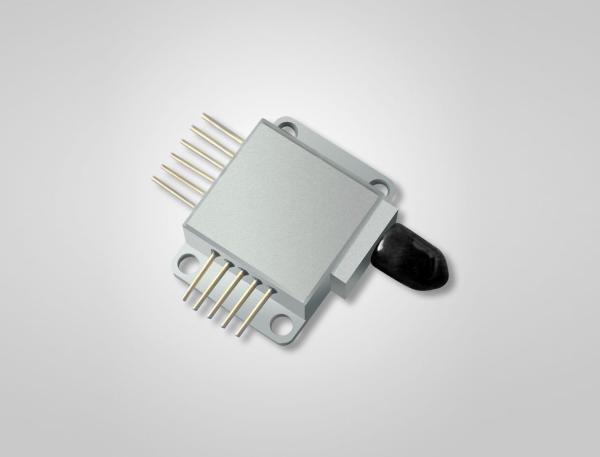

4W/808nm Diode Laser Module

Contact Now

Add to Cart

Company Info.

BWT Beijing Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Features:

4W output power

808nm wavelength

Standard fiber coupling for 200μm/ 0.22NA

Customer options:

Aiming beam

Power PD

Thermistor

Reflective fiber detection sensor

Applications:

Medical use

Material processing

Specifications(25℃)		Symbol	Unit	K808F11CA-4.00W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	4	-	-
	Threshold current	Ith	A	-	0.8
	Operating current	Iop	A	-	-	5.2
	Operating voltage	Vop	V	-	-	2.2
	Reverse Voltage	Vre	V	-	2.5	-
	Slope Efficiency	η	W/A	-	0.85	-
	Electrical-to-Optical Efficiency	PE	%	40	-	-
	Center wavelength	ʎc	nm	798	-	818
	Spectral width(FWHM)	δλ	nm	-	6	-
	Wavelength Shift with Temperature	-	nm/℃	-	0.3	-
Fiber Data	Buffer diameter	Dbuf	µm	-	400	-
	Cladding diameter	Dclad	µm	-	220	-
	Core diameter	Dcore	µm	-	200	-
	Numeric aperture	NA	-	-	0.22	-
Others	ESD	Vesd	V		-	500
	Storage Temperature	Tstg	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
PD Data	Current	Imo	μA	50	-	500
Thermistor	-	Rt	(K Ω)/β(25℃)	-	10±3%/3477	-
Aiming Beam Data	Output Power	Pa	mW	-	2	-
	Wavelength	la	nm	640	-	660
	Voltage	Va	V	-	2.2	-
	Current	la	mA	-	18	23

Product Tags:

808nm diode laser
