Home > Punching Machines >

Fully Automatic Metal Punch Die Air Conditioner Fin Press Machine

Categories Metal Punch Die
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
MOQ: 1 Set
Price: Negotiable
Model Number: WDL-7.5KW
Condition: New
CNC or Not: CNC
Power Source: Mechanical
Voltage: Customized
Power(W): 7.5KW
Weight: 5Ton
Dimension(L*W*H): Machine Size
machine name: Air-conditioner Fin Press Line
fin use: HVAC system; air conditioner fin
fin type: press fin
working principle: fin pressing system
voltage: according to buyer's requirement
color: according to buyer's requirement
fin material: copper or aluminum
package: nude package or plywood package
automation level: fully-automatic
fin mold blade material: SKD11
After-sales Service Provided: Overseas service center available
Warranty: 1 Year
Selling Units: Single item
Single package size : 190X160X300 cm
Single gross weight: 5500.0 kg
Package Type: steel box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fully Automatic Metal Punch Die Air Conditioner Fin Press Machine

Fully Automatic Metal Punch Die Air Conditioner Fin Press Machine


Product Description


Fully-automatic Air-conditioner Fin Press Machine
The fin press line is an automatic fin production line based on the latest Taiwan technology.
The fin press line consists of aluminum foil decoiling mechanism (photo-electric automatic decoiling), aluminum foil protection device, aluminum foil oiling device,
single and double jump latest lownoise high speed precision press machine, high speed
precision fin mold, latest guide bar type fin stacking device, waste material collection device,
and electrical control system with HMI.

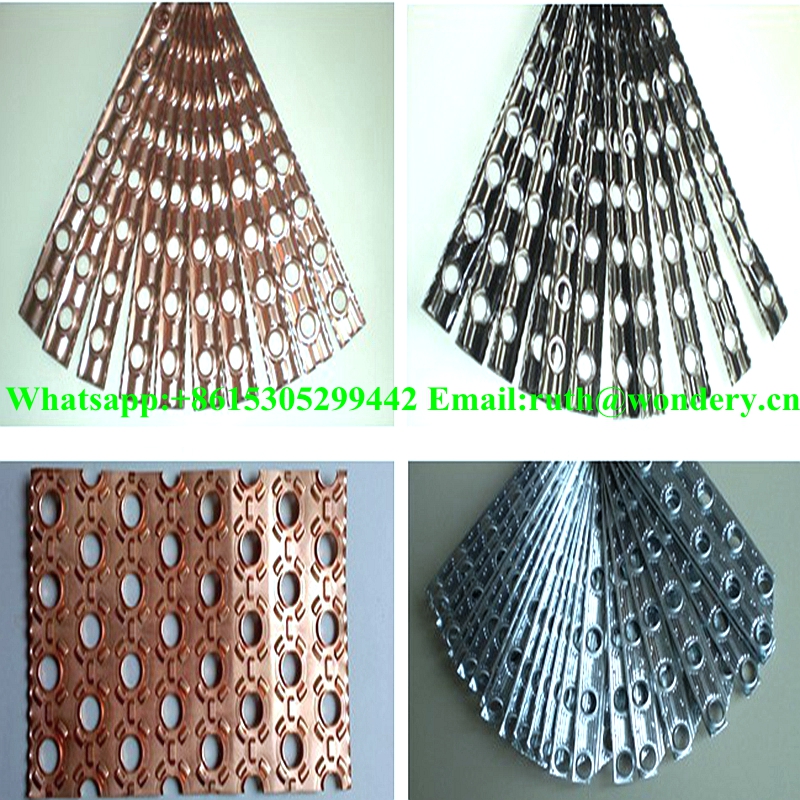

The fin press line can be used to produce the following fins:
Φ5*19.5*11.2*(6-24)R.
Φ7*21.0*12.7 or 20.5*12.7(12-24)R.
Φ7.94*22.0*19.05*(12-18)R.
Φ9.52*25.4*22.0or25.0*21.65*(12-18)R.
Φ10.2*20.0*15.5*(12-24)R.
Φ12.7*31.75*27.5*(6-12)R.
Φ15.88*38.0*32.91 or 38.1*22.2(6-12)R.
Φ19.4*50.8*38.1(4-8)R.
Φ20*34.0*29.5*(6-12)R.Φ25*(4-6)R.
