Categories | Stretched LCD Display |
---|---|
Brand Name: | BOE |
Model Number: | DV240FBM-NB0 |
Certification: | Rohs,CE,FCC |
Place of Origin: | China |
MOQ: | 10pcs |
Price: | Negotiation |
Payment Terms: | T/T,W, Western Union, MoneyGram |
Supply Ability: | 3000pcs per week |
Delivery Time: | 4-5 working day |
Packaging Details: | Industrial packing |
Quality: | Brand new Original |
Package: | Original industrial packing |
material: | glass led |
color: | 16.7M |
model: | WLED,LCD |
style: | bar lcd display |
resolution: | 1920*360 |
brightness: | 300CCD/M2 |
connector: | 30Pin |
working life: | 30k hours |
contrast ratio: | 1200:1 |
Company Info. |
FOCUS VISION TECHNOLOGY LIMITED |
Verified Supplier |
View Contact Details |
Product List |

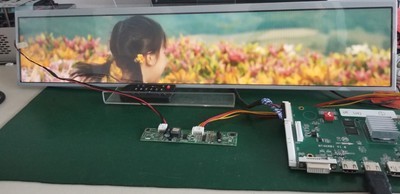

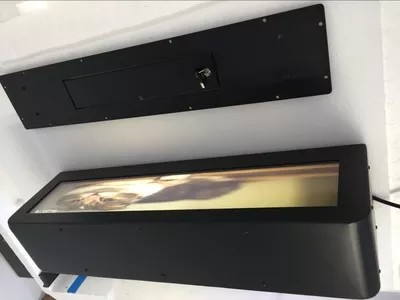

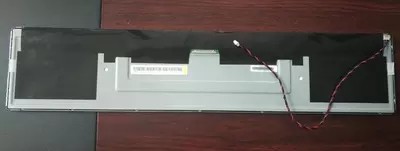

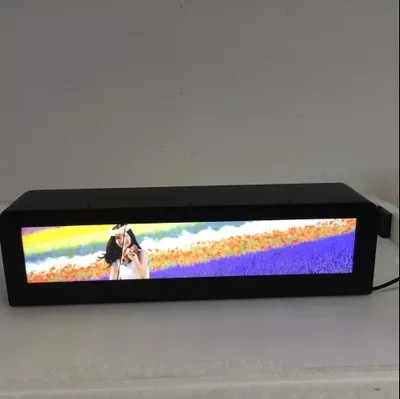

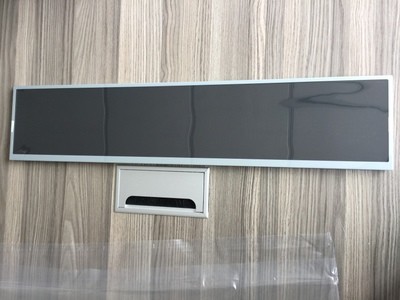

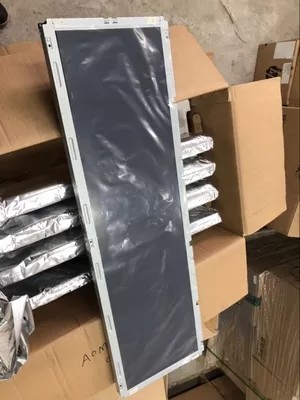

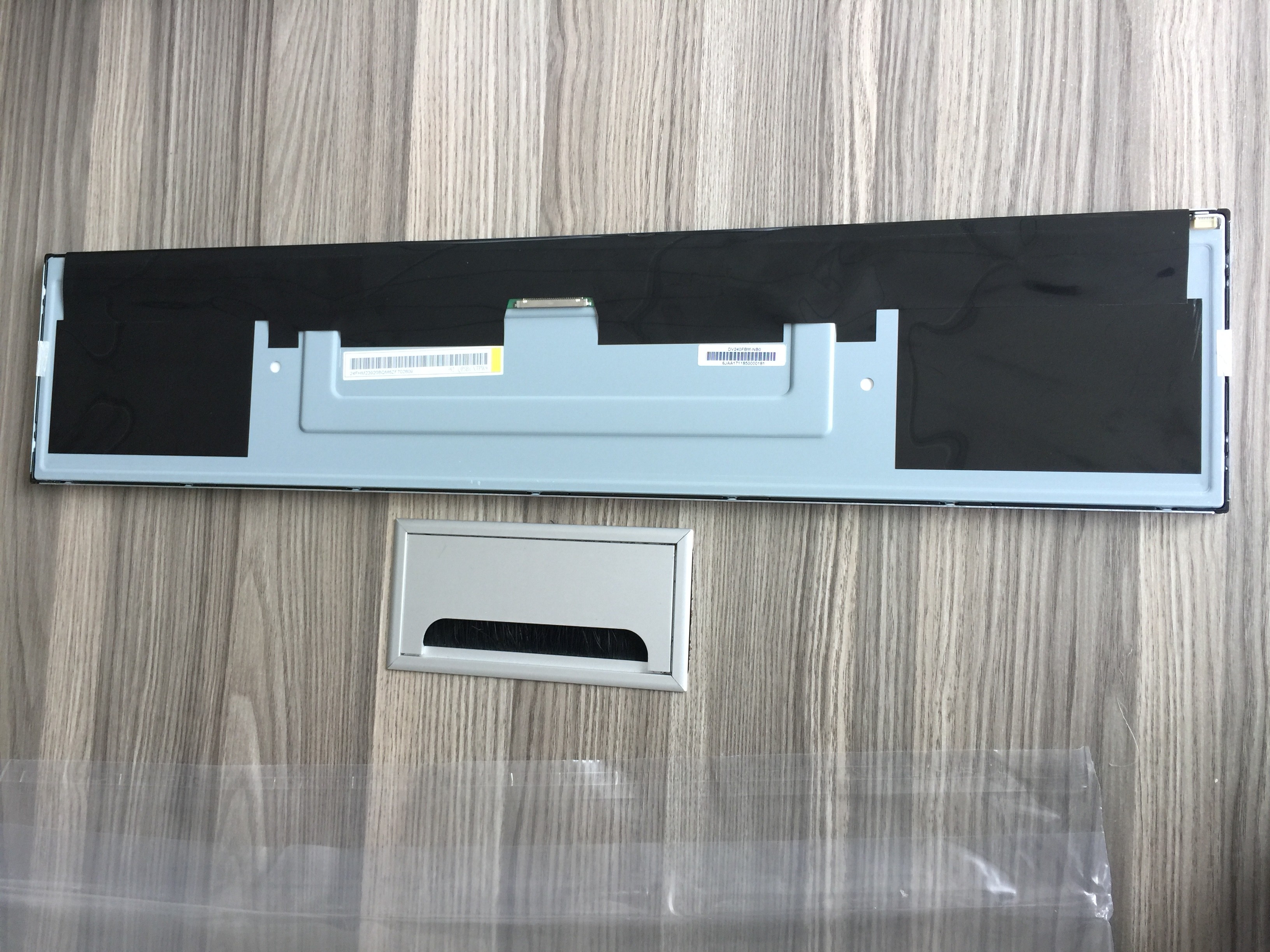

BOE stretch lcd screen 24" DV240FBM-NB0 stretched bar lcd 300CCD/M2 1920*360ixels for advisement player 16.7M colors
Manufacturer
BOE
Model Name
DV240FBM-NB0
Screen Size
24.0 inch (1/3 cut of 27.0")
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1920(RGB)×360
Arrangement
RGB Vertical Stripe
Active Area(mm)
597.888 × 112.104 (H×V)
Outline(mm)
612.7 × 132.1 (H×V×D)
Bezel Area(mm)
-
Treatment
Antiglare (Haze 25%)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1200 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
30 (Typ.)(Tr+Td) ms
Good View at
Symmetry
Work Mode
ADS, Normally Black, Transmissive
Color Depth
16.7M 72% (CIE1931)
Backlight
WLED , 30K hours , No Driver
Mass
1.21Kgs (Typ.)
Used for
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , Connector , 30 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
All our LCD LED screen monitor module panel products will be full test one by one before sending .
![]() |
