| Categories | Inductive Proximity Sensor |
|---|---|
| Brand Name: | F&C |
| Model Number: | F3L-08KN04-P/D |
| Certification: | CE RoHS |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000pcs per month |
| Delivery Time: | 10days after deposit |
| Packaging Details: | Standard export Package |
| Sensing distance: | 8mm |
| Power Voltage: | 12-24VDC |
| Load current: | 100mA at 24VDC |
| Sensing object: | Iron , stainless steel |
| Frequenty: | 800HZ |
| Material: | SUS304 |
| Waterproof: | IP67 |
| Wiring: | M12 4pin connector |

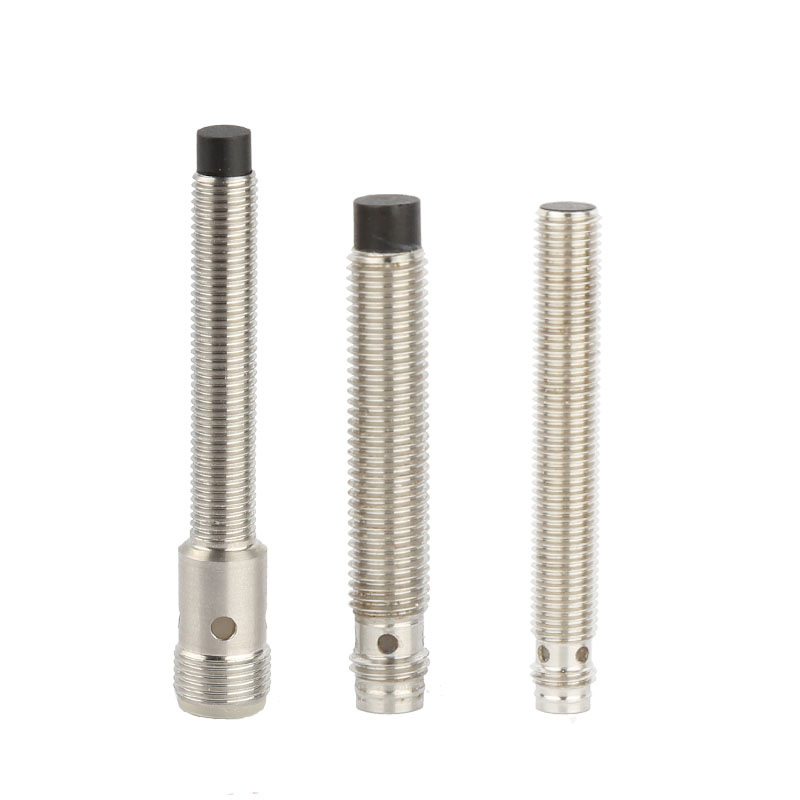

M8 Connector Inductive Sensor M8 4mm Non-flush PNP NO 3 Wires Proximity Switch
Product Description
Feature
*Diameter:8mm proximity sensor,
*DC 3-wires(12-24VDC+/-10%) ,customize 5VDC model
*PNP or NPN
*Detection distance:2mm,4mm(F3L series)
*Standard; Sensing Object: iron 8*8mm
*With 360 degree view Red indicator.
*Circuit Protection: polarity reverse and Short-Circuit protection
*Protection Grade: IP67

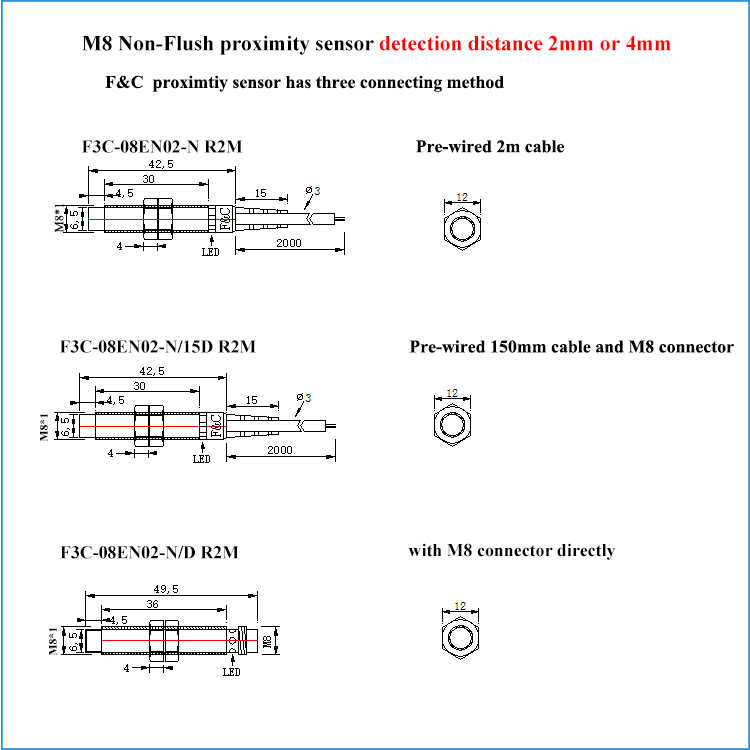

*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8
connector
Type | Standard Head | |||
Mounting Method | Non-Flush | |||
Length | Standard Body | Standard Body | Short Body | Short Body |
Sensing Distance | 2mm | 4mm | 2mm | 4mm |
NPN NO | F3C-08KN02-N | F3L-08KN04-N/D | F3C-08EN02-N/D | F3L-08EN04-N/D |
NPN NC | F3C-08KN02-N2/D | F3L-08KN04-N2/D | F3C-08EN02-N/D | F3L-08EN04-N2/D |
PNP NO | F3C-08KN02-P /D | F3L-08KN04-P/D | F3C-08EN02-P/D | F3L-08EN04-P/D |
PNP NC | F3C-08KN02-P2/D | F3L-08KN04-P2/D | F3C-08EN02-P2/D | F3L-08EN04-P2/D |
Sensing Object | 8×8×1(iron,metal) | 12×12×1(iron,metal) | 8×8×1(iron,metal) | 12×12×1(iron,metal) |
Response Frequency | 1000HZ | |||
Hysteresis | within 10% of sensing distance | |||
Operating Voltage | 12~24V DC | |||
Operating Temperature | -25~70℃ | |||
Material | PBT and SUS304 | |||
Connection | M8 Connector | |||
Certificate | CE | |||
Protection Class | IP67 | |||
Circuit Protection | Polarity reverse protection and Short -Circuit Protection. | |||
FAQ
Q:Are you sensors manufacturer?
A:Yes,over 30 years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
Q:Can I get samples for test?
A:Yes,we;support free test samples and shipping cost at your side.
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.;We will pull in the production schedule if your demand is urgently.
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
Q:How do you arrange the shipment ?
A:We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount. We also can accept other ship method if there is an need.
|
