XWW-1KN Tensile Testing Equipment / Computer Servo Control Universal Tensile Tester

Categories Electronic Universal Testing Machine
Brand Name: JINHAIHU
Model Number: XWW-1KN
Certification: ISO 9001
Place of Origin: China
MOQ: one set
Supply Ability: 15 sets per month
Delivery Time: 10 work days
Packaging Details: standard wooden case
Product name: Computer Servo Control Universal Tensile Testing Machine Price
Type: single screw table modle
Max. Load: 1000N
Accuracy Grade: 0.5%
Crossbeam Speed Range: 0.01-500mm/min
PC System: Equipped with brand computer and color inkjet printer
Standards: ISO7500-1, ISO5893, ASTM D638\695\790, ASTM D 6614-2000, ASTM D3107-2007, ASTM D5344
Weight: 100Kg
Packing size: 600mm*420mm*1700mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XWW-1KN Tensile Testing Equipment / Computer Servo Control Universal Tensile Tester

Computer Servo Control Universal Tensile Testing Machine Price

HS CODE:9024.101000


Computer Servo Control Universal Tensile Testing Machine Price is mainly used in tension, compression, bending, sheer,tear, peel, tensile strength, yield strength, elongation, modulus of elasticity, compression and bending testing of mechanical properties of metal, non-metallic and composite material. The above test parameters after the end of the test, according to the conditions of the test parameters set in the beginning of the test,software automatic analysis and processing of test results, and automatically save.And each test parameters after the end of the test can be inquired and printed, the software has flexible control method, also the test software upgrades for free.

ModelXWW-1KN
Typesingle screw table modle
Max. Load1000N
Accuracy Grade0.5%
Force-measuring Range0.4%~100%FS
Force-measuring Accuracy≤±1%
Crossbeam Displacement Resolution0.001mm
Crossbeam Speed Range0.01-500mm/min
Displacement Speed Accuracy≤ 0.5%
Total Crossbeam Travel600mm
ClampsTensile Jig
PC SystemEquipped with brand computer and color inkjet printer
Power SupplyAC220V;400w
StandardsISO7500-1, ISO5893, ASTM D638695790, ASTM D 6614-2000, ASTM D3107-2007, ASTM D5344
Weight100Kg
Packing size600mm*420mm*1700mm

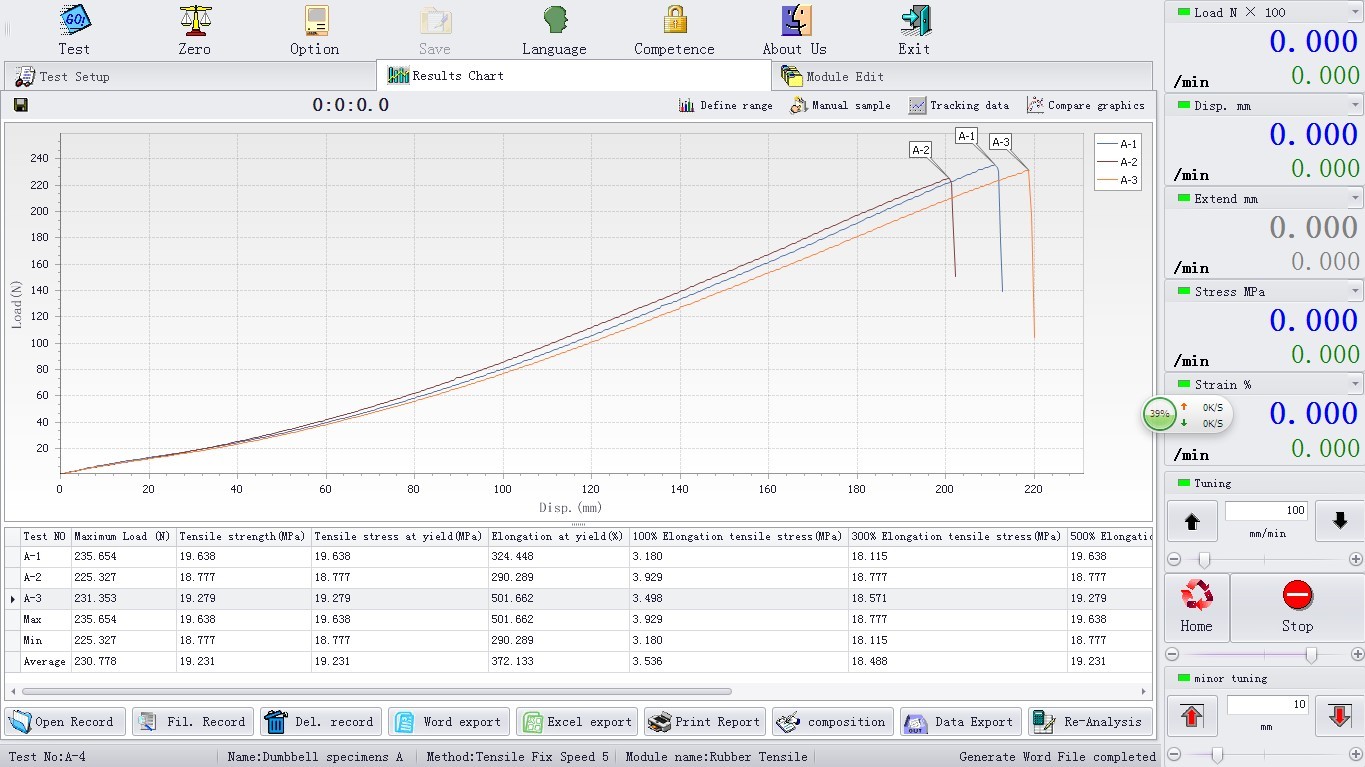

Introduction of the UTM software:

Universal Testing Machine Software (more than the following)

· This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.

· Based on Windows, simple operation and easy to learn.

· Languages switch between Simplified Chinese, traditional Chinese and English.

· Ten user accounts and passwords can be created.

· It has the protection function of overloading: overloading value can be set by user.

· The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.

· Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.

· Force value dual-correction system: auto set and zero, auto identification and import of correction data.

· It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.

· Compare among the test curves in the same group though piling them up.

· Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.

System configuration

1 Machine main unit

1.1 AC servo motor, driver 1 set

1.2 Speed reduce system 1set

1.3 Load cell 1000N 1pc

1.4 Precision precision ball screw 1sets

1.5 Control board 1set

2 Servo control system 1set

3 Notebook Computer 1set

4 Inkjet color printer 1set

5 Tensile test accessories 1set

6 Software installation CD 1set

7Technical documents 1set

8 Tool kit 1 set

including : Instruction Manual

Manual of the Software

Certificate
