12V Plastic Detection M18 Capacitive Proximity Sensor 3 Wire PNP Sensor Switch

Categories Capacitive Proximity Sensor
Brand Name: F&C
Model Number: FKC1810-P
Certification: CE, RoHS
Place of Origin: China
MOQ: negotiable
Price: negotiable
Payment Terms: Western Union, T/T
Supply Ability: 10000Pcs Per Month
Delivery Time: 10days after depsite
Packaging Details: Standard Export Package
Output Method: PNP NO
Detection Distance: 8mm
Operating Voltage: 12~24VDC
Standard Detection Object: 24*24*1
Response Frequency: 600HZ
Operating Temperature: -25~70℃
Waterproof Grade: IP66
Material: ABS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12V Plastic Detection M18 Capacitive Proximity Sensor 3 Wire PNP Sensor Switch

12V Plastic Detection M18 Capacitive Proximity Sensor 3 Wire PNP 10mm Sensor Switch


1.Small size,5mm,10mm.30mm detection distance for your option.

2.Visible light LED display.Easy to see the state of operation.

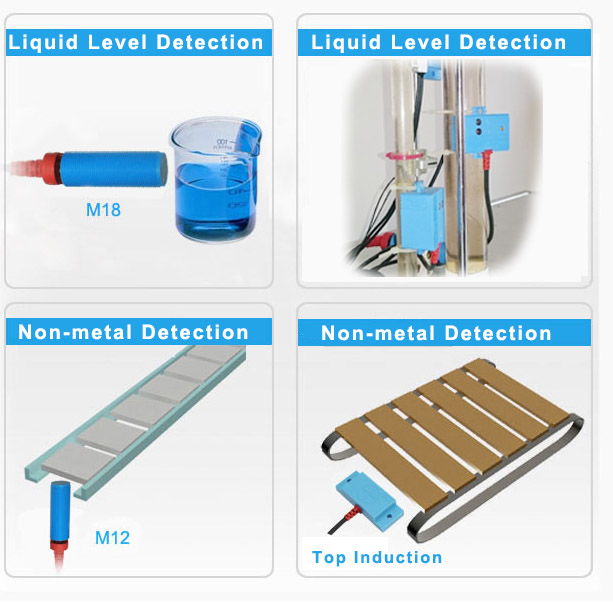

3.Liquid level detection,Non-metal object detection

4.M18 capacitive proximity sensor can customize anti-copper and aluminum scrap material.


Specification for capacitive proximity sensor


NPN NOFKC1810-NFKC1205-N
NPN NCFKC1810-N2FKC1205-N2
PNP NOFKC1810-PFKC1205-P
PNP NCFKC1810-P2FKC1205-P2
Detecting distance10mm5mm
Recommand distance2-10mm1-5mm
Standard sensing objectNon-metal
Response frequency600Hz
Hysteresis≤10% detection distance
Operating voltage12~24V DC
Current consumption<10mA no-load
Load current24V 100mA Max
Leakage current<0.01mA no-load
Residual voltage<1.0VDC
Operating Temperature-25°C-+70°C
Waterproof degreeIP66
MaterialABS or PBT
Wiring methodφ4.0×2M/3-wires

Product display

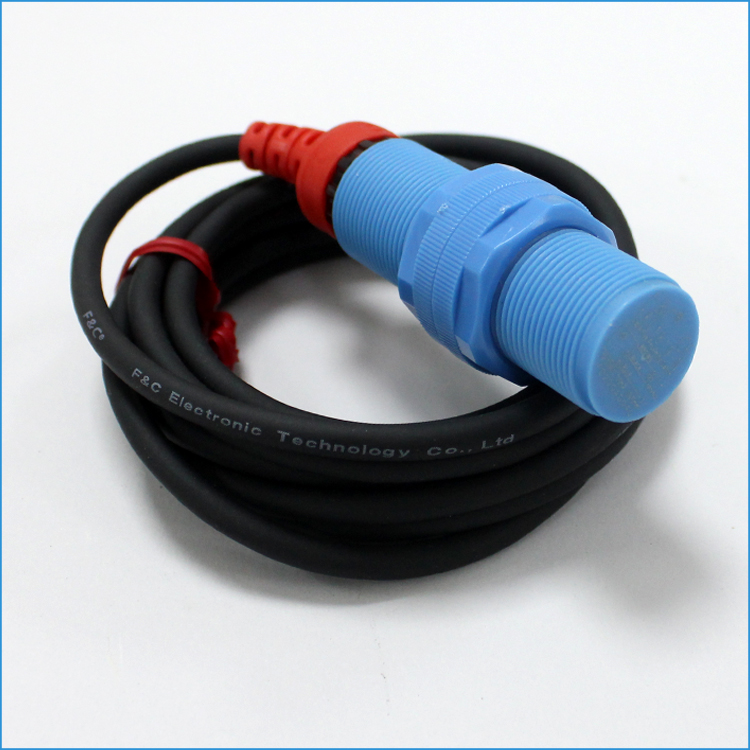

M18 cylinder PNP NO 3 wires 10mm capacitive level sensor .jpg


M18 cylinder PNP NO 3 wires 10mm capacitive level sensor .jpg

M18 cylinder PNP NO 3 wires 10mm capacitive level sensor .jpg

12V Plastic Detection M18 Capacitive Proximity Sensor 3 Wire PNP 10mm Sensor Switch
