| Categories | Fiber Optic Patch Cord |
|---|---|
| Brand Name: | TTI |
| Model Number: | SC-SC-SM-SX |
| Certification: | ISO, SGS, ROHS |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, PayPal |
| Supply Ability: | 8000 pcs/day |
| Delivery Time: | 2-3 days |
| Packaging Details: | PE bag |
| Connector Type: | SC and SC |
| Fiber Type: | Singlemode |
| Cable Type: | Simplex |
| Cable OD: | 3.0mm |
| Cable Jacket: | PVC outer jacket |
| Cable Color: | Yellow or customized |
SM MM Sc Apc Patch Cord Single Mode Multimode Simplex Duplex
Description:
The LC fiber connectors used in fiber optic patch cords are
designed to LC standards with high quality zirconia ferrules and
non-optical disconnect performance.
They are fully compatible with existing LC hardware.In addition to
basic testing, some mechanical and environmental tests per IEC or
Telcordia are also performed periodically to guarantee the best
quality.
Features:
Push-pull latching mechanism
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, PVC, LSZH fiber cables available
Application:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
Specification:
Fiber Connector Performance Specification:
| Connector Type | FC, SC, LC, ST, MU, MTRJ | |||
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤ 0.1dB(1000 times) | |||
| Durability | > 1000 times | |||
| Operating Temperature | -40°C ~ +85°C | |||
Fiber Cable Performance Specification:
| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km | 850/1300nm 3.0/1.0dB/km | |
| 50/125 10Gig Optimized | 850/1300nm 2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm 3.0/1.0dB/km |
| 9/125 | 1310/1550nm Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm 0.4/0.3dB/km |
Order Information:
| LC/UPC-FC/UPC-SM-SX-3.0mm-1M | ||||||||||||||||
| LC | / | UPC | — | FC | / | UPC | / | SM | — | SX | / | 2.0 | — | 3M | ||
| 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
| 1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
| 2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
| 3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
| 4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
| 5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
| 6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
| 7 | Cable Length: 3m(Length in meter) | |||||||||||||||

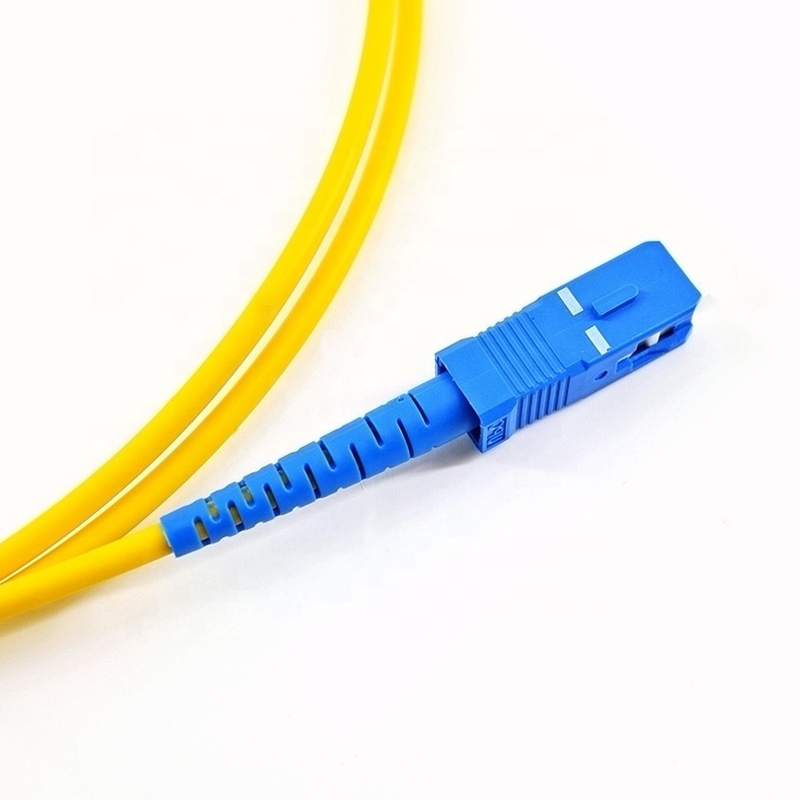

Product Picture:
|
