| Categories | Ultrasonic Flaw Detector |
|---|---|
| Brand Name: | LEEB |
| Model Number: | Uee950 |
| Certification: | CE, ISO |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Based on quantity |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 1000pcs per month |
| Delivery Time: | 7 work days |
| Packaging Details: | Equipment box |
| Product Name: | UT Smart Flaw Detector |
| Operating Frequency: | 0.5MHz～10MHz |
| Velocity Range: | 1000～9999m/s |
| Scan Range: | 0-1000mm + 5000mm ( Longitudinal wave in Steel ) |
| Storage: | 1000 |
| Optional Probes: | Single,Thru,Dual |
| Dimension: | 162×105×40mm |
| Weight: | 0.68kg (include Li-ion battery) |
10MHz Portable Ultrasonic Flaw Detector With Large Scan Range Storage
UT Smart Mini-Size Ultrasonic Flaw Detector With Large Scan Range And Storage
Functions & Features:
● Ultra mini size & weight: design for Field work, Aerial work
● Probe automatic calibration
● Automatically form DAC, AVG (DGS) curves by using standard test block
● Display the echo parameters (depth D, level P, the distance S, the amplitude H)
● Peak memory: Search the highest wave of defects; Record the max. value of defects
● Defect location: display of the defect's horizontal, depth (vertical), and sound path position
● Defect qualitation : Echo envelope, convenient for manual judge
● Weld diagram: directly display the defect location, the bevel form and sound velocity direction
● Built-in Standards: Freely set flaw detection standards of various industries
● Working mode: straight probe, Angle probe, dual crystal probe, penetrating flaw detection
● Storage: 1000 pieces of A-scan images and data

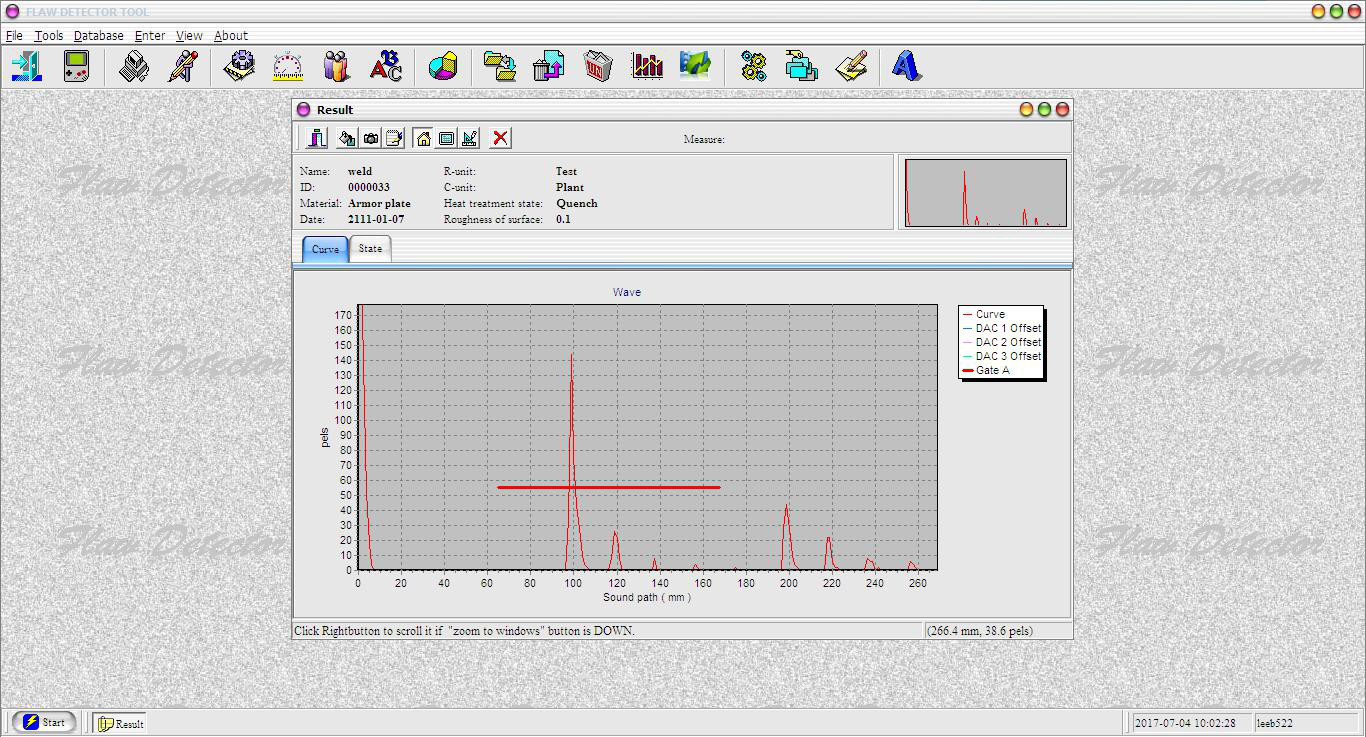

● PC software is available for data analysis, management and reports printing
Application:
● Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks, and etc.
● Widely used in Steel Structure Industry, electric power, petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and etc.
Technical Parameters:
| Model | Uee950 |
| Operating Frequency | 0.5MHz～10MHz |
| Scan Range(mm) | 0-1000mm + 5000mm ( Longitudinal wave in Steel ) |
| Velocity Range(m/s) | 1000～9999 |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1% |
| Dynamic Range | ≥36dB |
| Testing sensitivity | ≥50dB (Depth 200mm, Φ2 flat bottom hole) |
| Measuring channel | 16 |
| Storage | 1000 |
| PC Connection | ● |
| Gain Range(dB) | 0~110 (adjustable: 0.1dB,2dB,6dB,12dB) |
| Standard Probes | Straight probe: 2.5MHz, diameter 20mm, cable Lemo (C5-Q9) Angle probe: 4MHz, 60 degree, 8*9 mm, cable Lemo (C5 -Q9) |
| Working mode | Straight probe, Angle probe, Dual crystal probe, Penetrating flaw detection |
| Dimension | 162mm*105mm*40mm |
| Weight | 0.68kg |
| Optional Accessories | Probes (Single,Thru,Dual , Straight,Angle), Cables, Calibration blocks, Coupling agent |
Standard Configuration:
| Name | Quantity | Name | Quantity |
| Main unit | 1 | PC software | 1 |
| Straight probe | 1 | USB | 1 |
| Angle probe | 1 | Manual | 1 |
| Power adapter | 1 | Certificate | 1 |
| Cables | 2 | Warranty card | 1 |

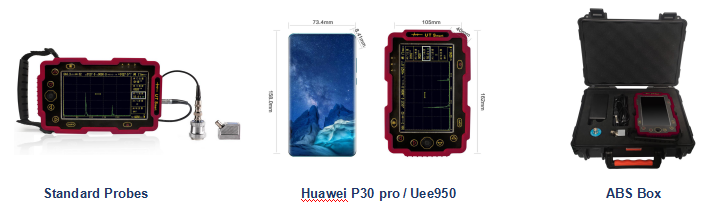

Pictures:
|
