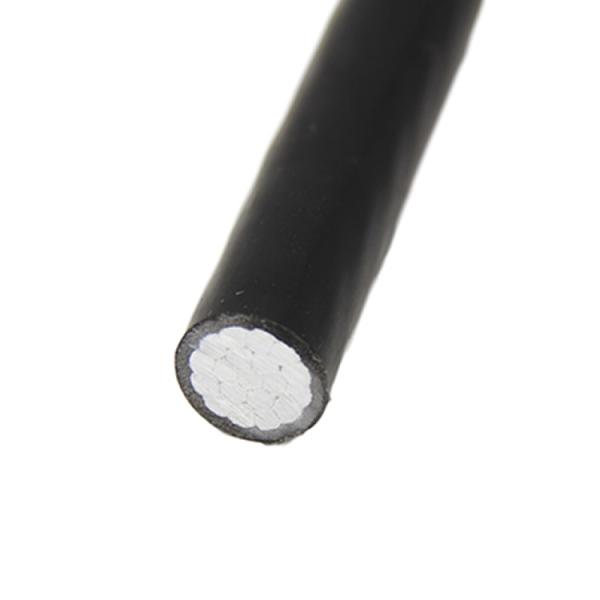

PVC XLPE Insulated AAC Conductor Spaced ABC Aerial Twisted Bundle Cable
Product Description
1.Application
The cable is used for overhead power transmission and distribution
lines up to 33 KV It can be used in Areas with trees , Areas with
right-of-way concerns, Alley construction,Areas with ice
storms,Areas of high winds,Contaminated areas, etc.
2.Applicable Standard
ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2
3.Cable Structure:
AAC Conductor , XLPE/ Insulation , PE Outer Jacket
4.Packing Material
Wooden Reel, Iron-wooden Reel, Steel Reel
20KV SPACER CABLE
| Cable Size | Conductor Construction | Conductor shield thickness | Insulation thickness | Outer Jacket thickness | Cable dia. | Conductor Resistance | |
| Stranding No. | Overall dia. | ||||||
| mm2 | mm | mm | mm | mm | mm | mm | Ω/km |
| 50 | ≥6 | 7.7-8.6 | 0.4 | 3.2 | 3.2 | 21.8 | 0.641 |
| 70 | ≥12 | 9.3-10.2 | 0.4 | 3.2 | 3.2 | 23.5 | 0.443 |
| 95 | ≥15 | 11.0-12.0 | 0.4 | 3.2 | 3.2 | 25.2 | 0.32 |
| 120 | ≥15 | 12.3-13.5 | 0.4 | 3.2 | 3.2 | 26.6 | 0.253 |
| 150 | ≥18 | 13.7-15.0 | 0.4 | 3.2 | 3.2 | 28 | 0.206 |
| 185 | ≥30 | 15.3-16.8 | 0.4 | 3.2 | 3.2 | 29.8 | 0.164 |
33KV SPACER CABLE
| Cable Size | Conductor Construction | Conductor shield thickness | Insulation thickness | Outer Jacket thickness | Cable dia. | Conductor Resistance | |
| Stranding No. | Overall dia. | ||||||
| mm2 | mm | mm | mm | mm | mm | mm | Ω/km |
| 50 | ≥6 | 7.7-8.6 | 0.4 | 4.5 | 3.2 | 24.4 | 0.641 |
| 70 | ≥12 | 9.3-10.2 | 0.4 | 4.5 | 3.2 | 26.1 | 0.443 |
| 95 | ≥15 | 11.0-12.0 | 0.4 | 4.5 | 3.2 | 27.8 | 0.32 |
| 120 | ≥15 | 12.3-13.5 | 0.4 | 4.5 | 3.2 | 29.2 | 0.253 |
| 150 | ≥18 | 13.7-15.0 | 0.4 | 4.5 | 3.2 | 30.6 | 0.206 |
| 185 | ≥30 | 15.3-16.8 | 0.4 | 4.5 | 3.2 | 32.4 | 0.164 |

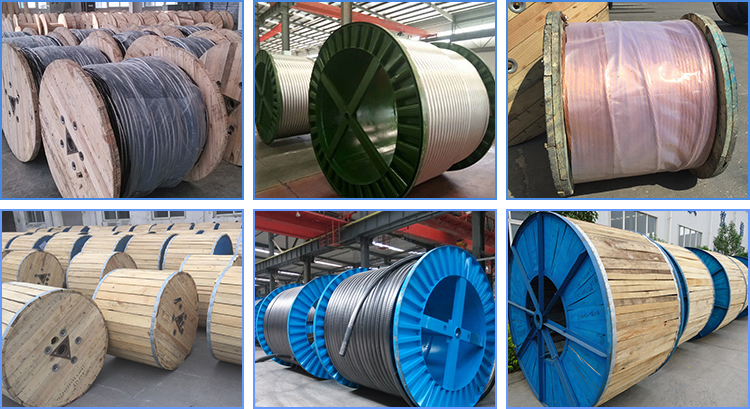

Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
|
