Categories | UFO LED High Bay Light |
---|---|
Brand Name: | DUALRAYS |
Model Number: | DR-HB200-EG2 |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Place of Origin: | Shenzhen,China |
MOQ: | 2PCS |
Price: | Negotiated |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000PCS/Month |
Delivery Time: | 5-15 Bussiness Day |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Power: | 100W,150W,200W,240W,300W |
LED light source: | LUMILEDS |
CIR: | >80Ra |
Material: | Die-cast aluminum |
CCT: | 3000K,4000K,5000K,5700K |
PF: | >0.95 |
Warranty: | 5 years |
Beam angle: | 60°/90°/110° for option |
Company Info. |
DUALRAYS LIGHTING Co.,LTD. |
View Contact Details |
Product List |
Workshop Lighting LED High Bay Flood Lights LUMILEDS LED Source 5 Years Warranty
UFO LED High Bay Features:
* Air-flow heat sink allows for fast air movement as the perfect cooling system to ensure the performance and longevity;
* CE,RoHS listed,5 years warranty;
* Adopting LUMILEDS SMD LEDs light source;
* High anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
* D-Mark tested for the use in paper production, wood processing etc;

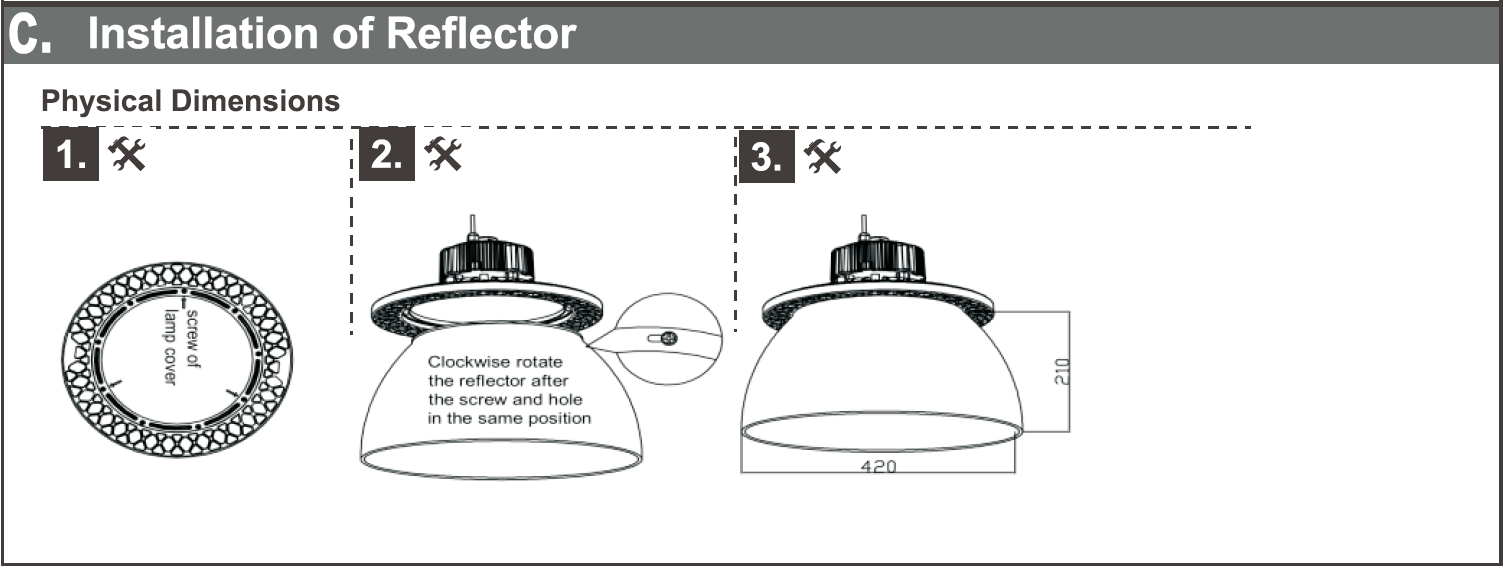

* Reflector : PC reflector with / without cover.pipe mounting;

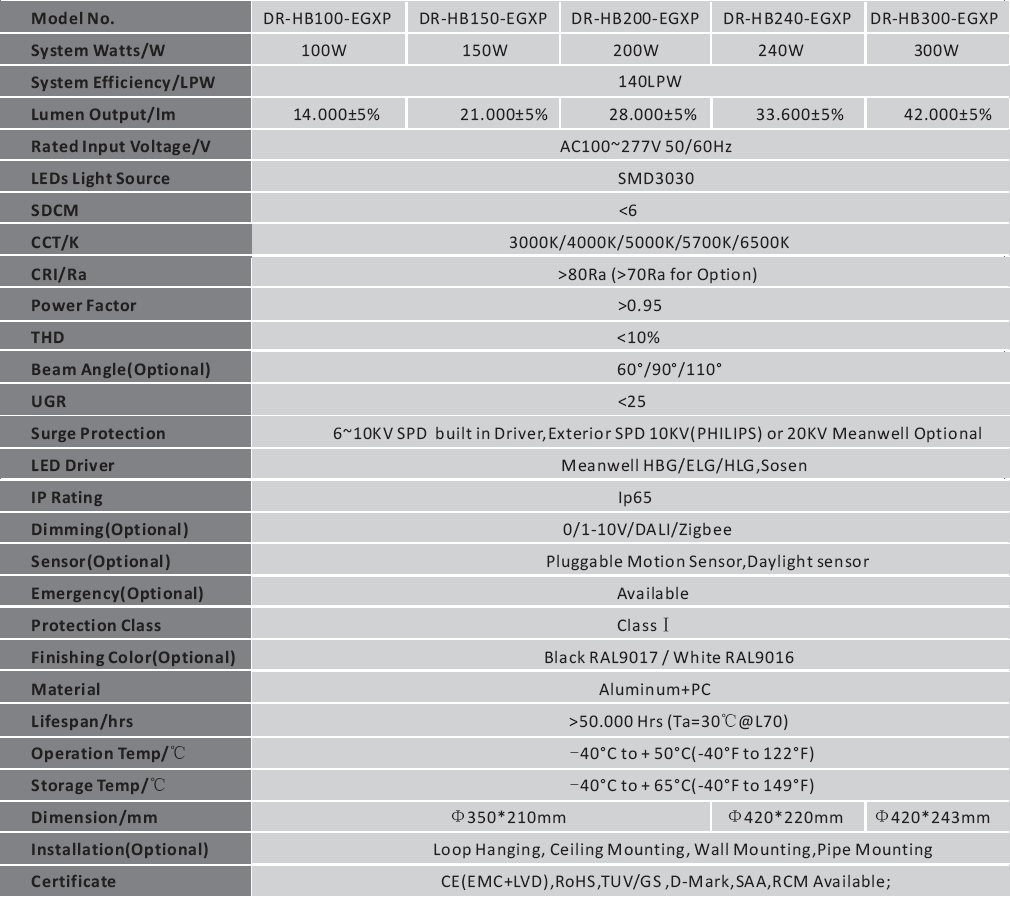

Item | Description |
System Efficiency/LPW | 140LPW |
Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
CRI/Ra | >80Ra (>70Ra for Option) |
LED Driver | Meanwell HBG/ELG/HLG,Sosen |
LED Chips | SMD3030 LUMILEDS LEDs |

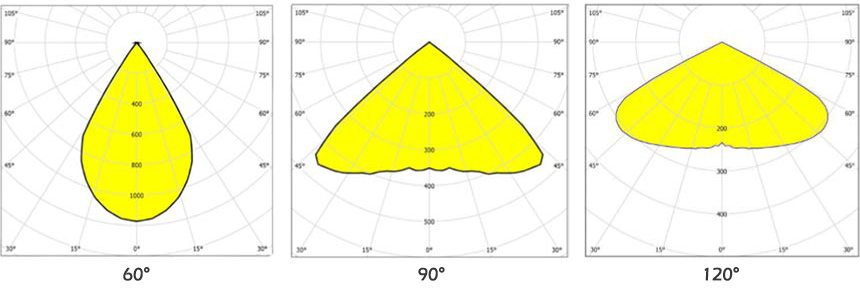

Optic Lens | 60°/90°/110° |
Rated Input Voltage/V | AC100~277V 50/60Hz |

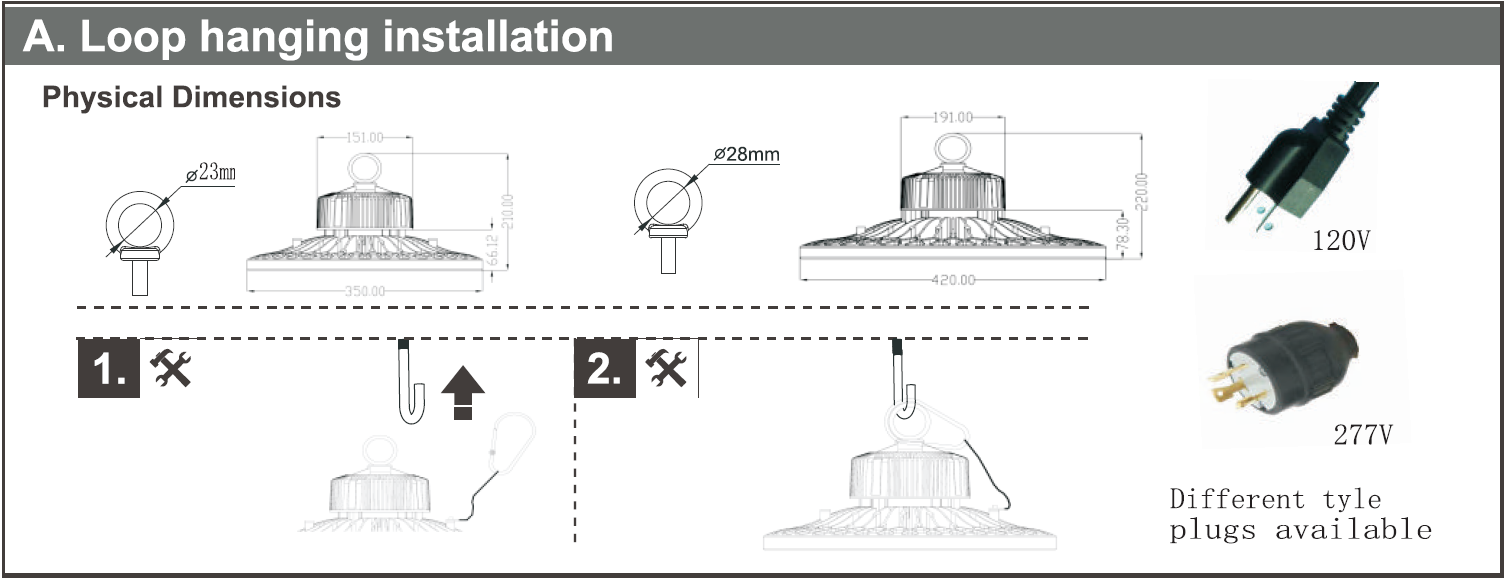

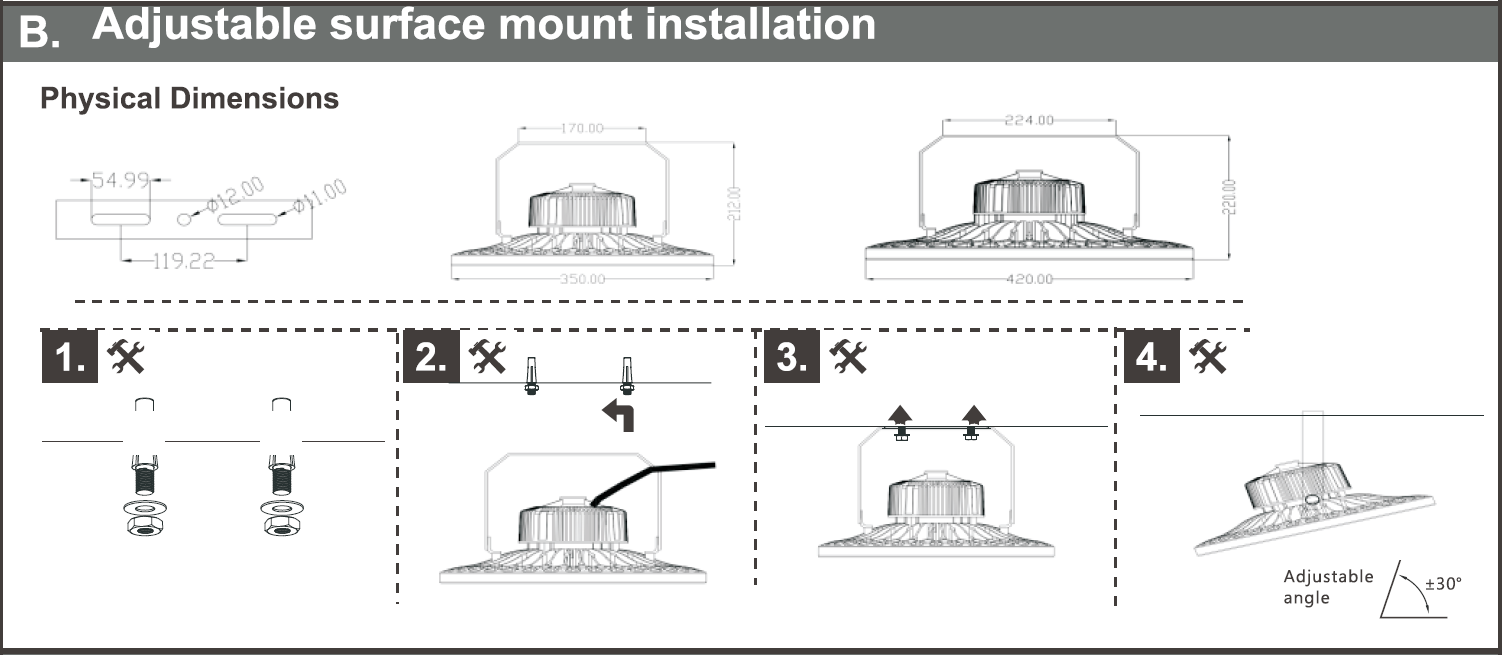

Installaion | Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;

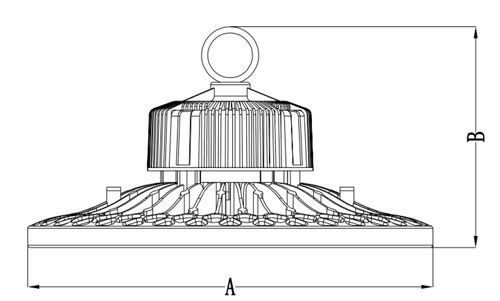

Character/Power | 100W | 150W | 200W | 240W | ![]() |
A | Ø350mm | Ø350mm | Ø420mm | Ø420mm | |
B | 210mm | 210mm | 220mm | 220mm |
Q1: What is the lead time?
RE: Normally 3-5 business days for samples, 10-20 business days for bulk orders.
Q2: Finished color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.
Q3.Could i tell you what’s LED driver ?
RE: An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage fluctuations ,overvoltages, and voltage spikes.
Q4.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
Q5. What are the certificates you have currently?
RE: All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed
Q6. How many engineers of your R&D team?
RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry
