50KW-100KW Lithium Ion Battery Energy Storage Systems For Domestic Industrial

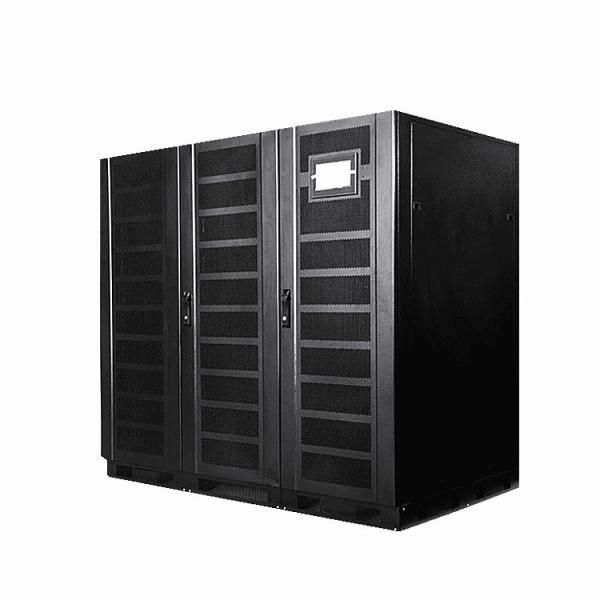

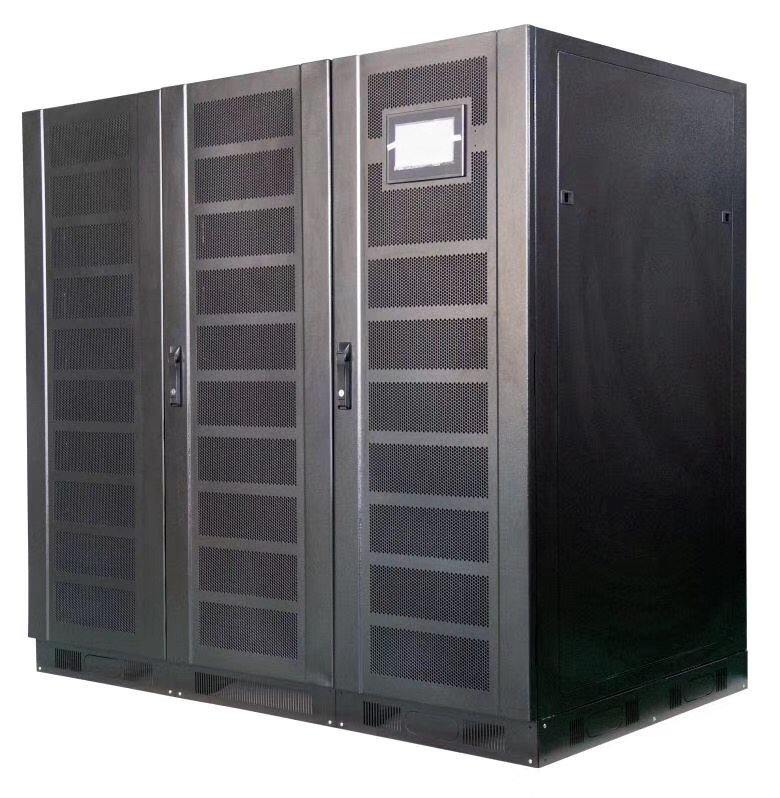

50KW-100KW Lithium Motor Cabinet Solar Energy Storage System For Domestic Industrial Use

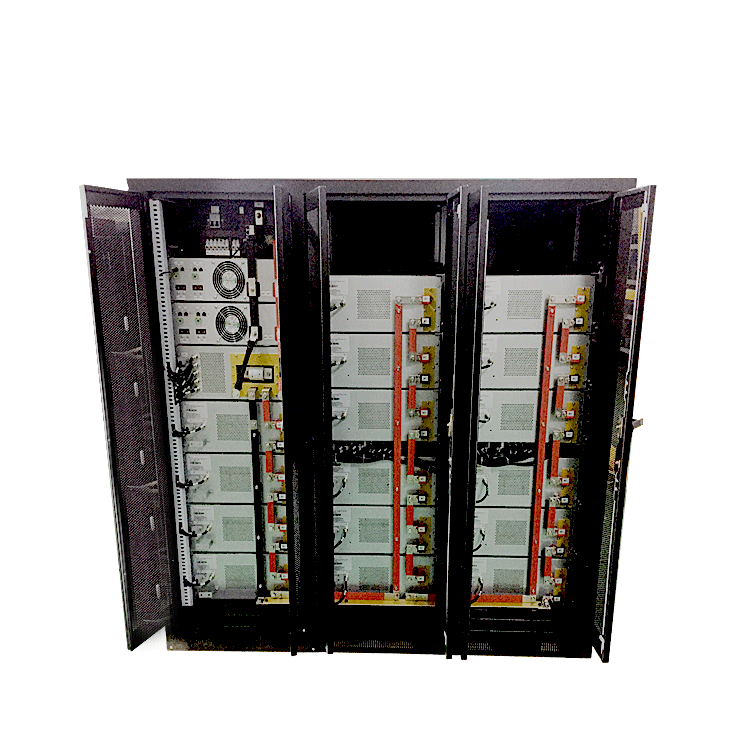

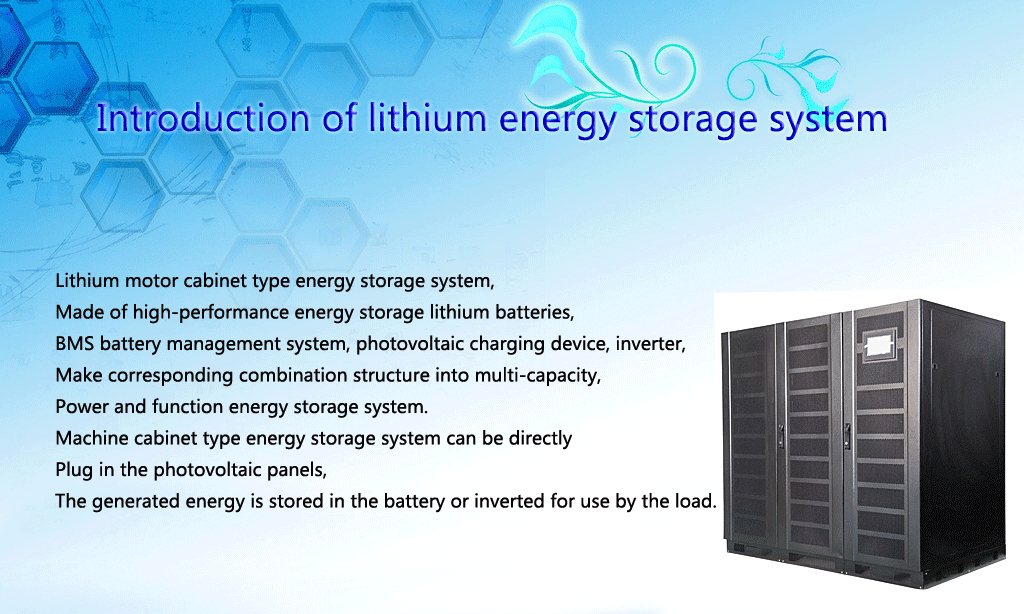

The lithium motor cabinet energy storage system consists of high-performance lithium battery, BMS battery management system, photovoltaic charging device, inverter device, and corresponding combination to form a multi-capacity, power, functional energy storage system.

The cabinet type energy storage system can be directly connected to the photovoltaic solar panels, and the generated energy can be stored in the battery, or inverted for load use.

At night or when the sunshine is not so strong, the ESS will provide power for loading equipment automatically.

As a control and energy center, a micro-grid will be established in power-free areas to provide reliable and sustained electricity for users.

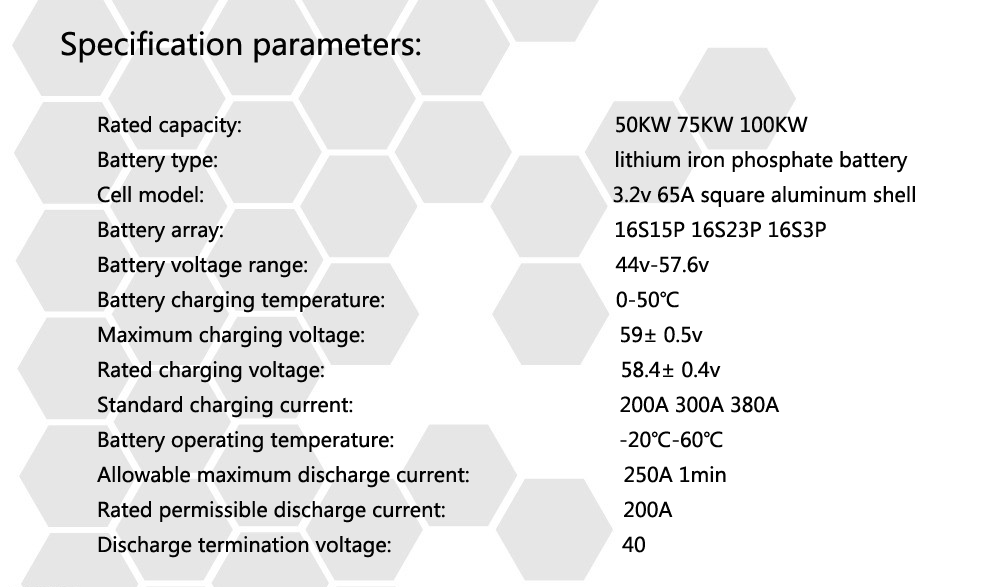

Battery cell
Rated capacity (Battery side)	50kW(1000AH)	75kW(1600AH)	100kW(2100AH)
Battery type	LiFePO4 battery
Model of cell	3.2V 65A Square aluminum shell
Battery group array	16S15P	16S23P	16S30P
Voltage range of battery group	44V～57.6V
Cycle life	4000 cycles at 80% DOD
Protection	Short Circuit Protection, Over Charge Protection, Over Discharge Protection, Reverse Polarity Protection, Cell Over Voltage, Cell Under Voltage and Over Temperature
Charge
Battery charge temperature	0～50℃
Maximum charge voltage	59±0.5V
Rated charge voltage	58.4±0.4V
Nominal charge current	200A	300A	380A
Discharge
Battery working temperature	-20℃～60℃
Allowable maximum discharge current	250A 1min	250A 1min	250A 1min
Rated allowable maximum discharge current	200A
Discharge termination voltage	40
Self Discharge Rate	Less than 3% per month(nominal temperature)
Inverter
Type	Stand-alone Inverter (Off Grid Inverter) Single phase output transformer or galvanic isolation
Rated power	5.0kW7.5kW10kW Remark: AC output power continuously 5.0KW/7.5KW/10kW at electrical load type : Unity power factor (pf=1)
Nominal Input Voltage	48VDC
Output voltage	110V-220VAC
Output voltage regulation	Less than 5% at steady state load
Total harmonic distortion (THDv)	Less than 4% when the electrical load is 0.8 lagging power factor
Maximum surge power	200% of nominal power
Maximum running current	75
Overload ability(10min)	110%
AC input frequency	50HZ/60HZ(automatic tracking)
Output frequency range	50HZ/60HZ±0.3HZ
Output efficiency	≥85%
Wave form	Pure sine wave form
Protection	Over Load, Short Circuit, Over Input Voltage, DC Reverse Polarity, Battery Low Voltage Cut Off (automatic reconnect) and Over Temperature
Communication	RS232/RS485 with data logger
Solar panel
Rated power	22.0kW	30.0kW	38.0kW
Maximum stable operating power	22.0kW	30.0kW	38.0kW
DC start voltage(Vdc)	70V	70V	70V
Minimum DC start voltage (Vdc)	70V	70V	70V
Maximum DC voltage(Vdc)	145V	145V	145V
Charge current	180A	250A	350A
Solar Charge Controller
Max PV input power at STC (Standard Test Condition)	5KW	7.5KW	10KW
Output voltage charger to battery	48VDC	48VDC	48VDC
MPPT (Maximum power point tracking) charger at STC	5KW	7.5KW	10KW
Charge and Discharge controller as SOC (Stage of Charge)

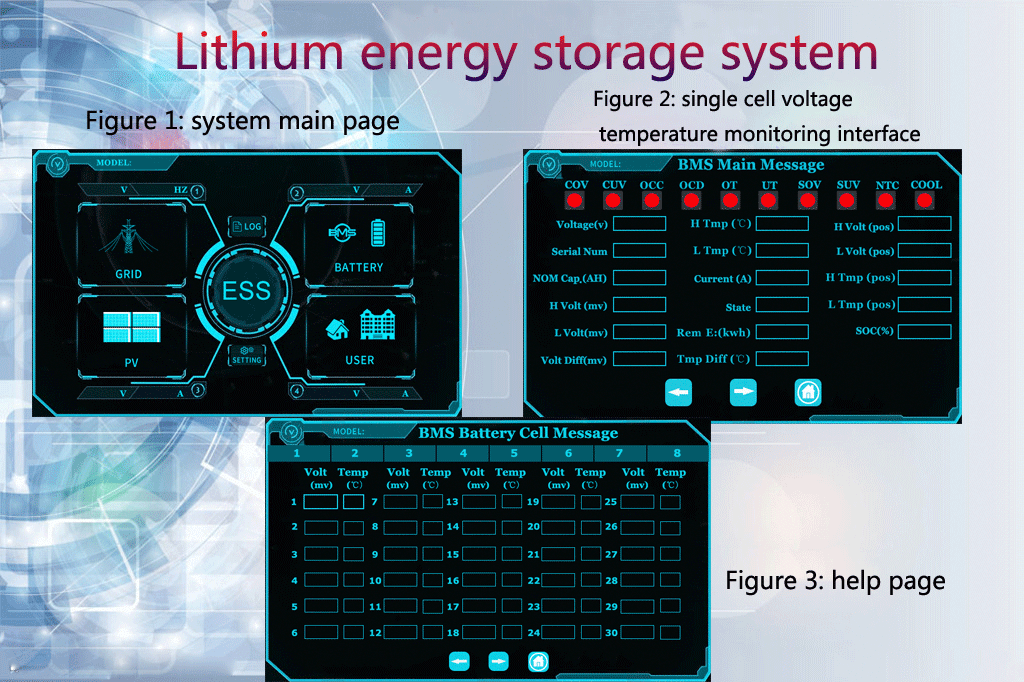

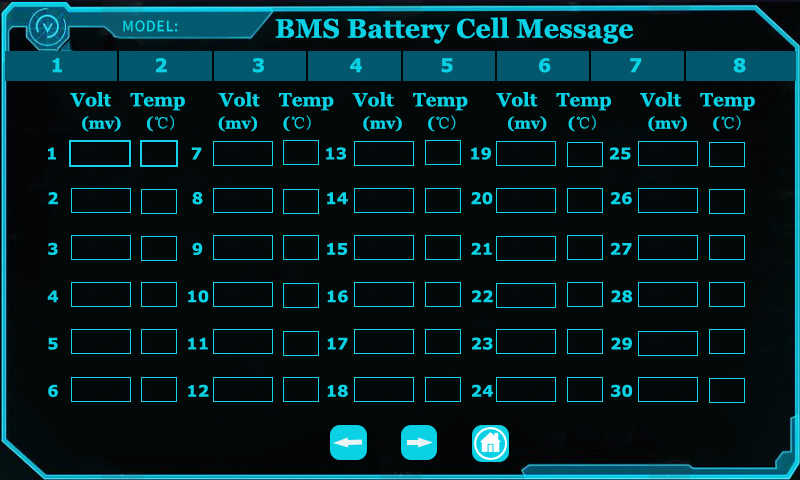

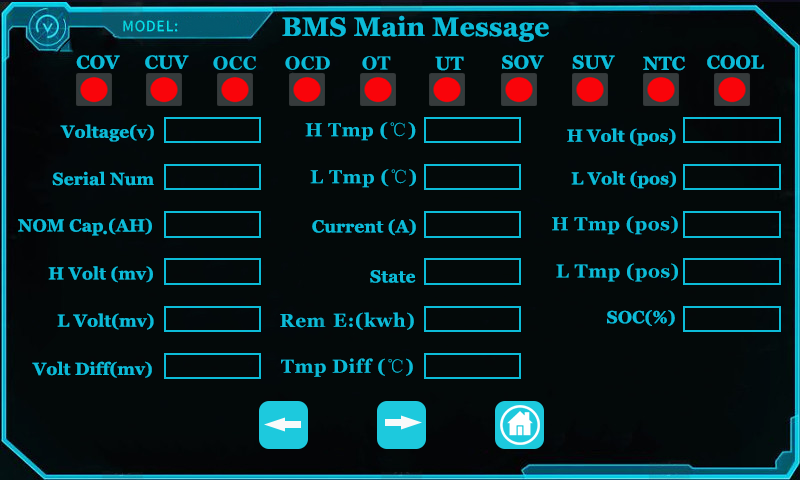

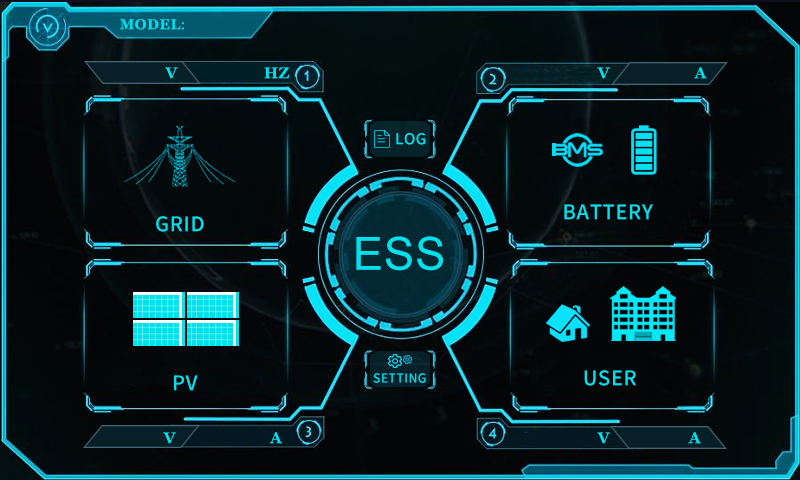

Charge Controller can communicate with BMS of all LFP battery module and can control, setting, display data to LCD display
Battery Reverse Polarity Protection
Loading
Loading power	Backup time 10 hours with loading 5KW	Backup time 10 hours with loading 7.5KW	Backup time 10 hours with loading 10KW
