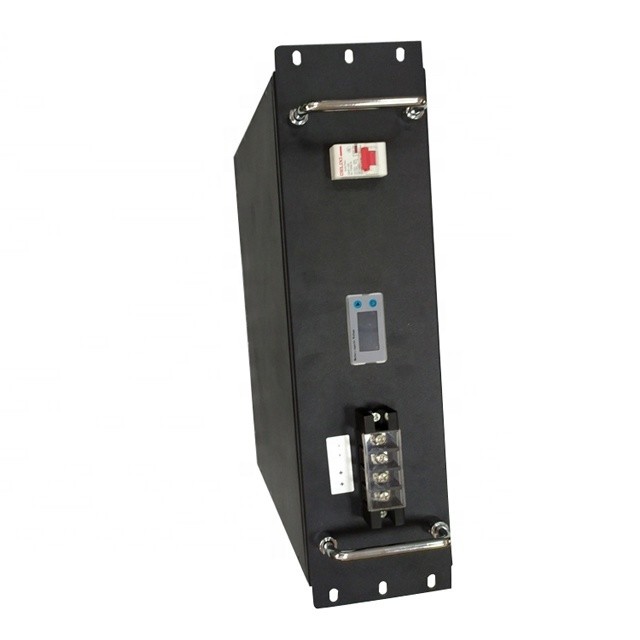

UN38.3 48V 100AH LiFePO4 Battery Pack For Solar Power Storage

Categories	Rechargeable Battery Pack
Model Number:	LFP48V100
Certification:	UN38.3, MSDS, RoHS
Place of Origin:	China
MOQ:	2pieces
Payment Terms:	T/T
Supply Ability:	5000Pieces daily
Delivery Time:	within 20days
Packaging Details:	Carton box
Battery Type:	LiFePO4 battery pack
Voltage:	48V
Capacity:	100Ah
Cycle life:	2000 times
Application:	solar light batteries, power supply, e-boat
Weight:	27kg
Size:	522239217mm
Warranty:	3 years
Usage:	EV/CAR/MOTORCYCLE/UPS/ENERGY STORAGE
Type:	deep cycle battery
power energy storage battery 200ahKeyword:	China 12v deep cycle solar

Contact Now

Add to Cart

Company Info.

shenzhen gold power energy co.,ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Rechargeable Battery Pack 48V 100AH Custom Lithium Ion Battery Pack For Solar Power Storage

5kw solar system 48v LiFePO4 long life use 100ah lithium ionen akku battery
Item	Specification		Note
Battery Pack	Nominal Voltage:	48V	Any voltage can be customized
	Nominal Capacity:	100Ah	Any capacity can be customized
	Discharge Cut-Off:	40V
	Charge Cut-Off:	58.4V
	Charge Current:	100A	Free customization service
	Cont. Discharge:	200A	Free customization service
	Peak Discharge:	400A	Free customization service
	Impedance:	≤20mΩ
	Charge Temperature:	0℃ - 45℃
	Discharge Temperature:	-20℃ - 60℃
	Charge Method:	CC/CV
	Life Cycle:	2000+	80% DOD, Max. 95% DOD
	BMS:	With BMS
	Dimension:	LWH: 522239217mm	Any dimension can be customized
	Weight:	50KG
Battery Cell Used	Prismatic LiFePO4 Cell	3.2V 100Ah/50Ah/25Ah	16S1P/ 16S2P/ 16S4P
BMS	Over charge Protection	Single cell overcharge protection voltage	3.9±0.05V
		Single overcharge release voltage	3.6±0.05V
	Charge Protection	Rated charging current	≤200A
	Over discharge protection	Single cell over-discharge protection voltage	2.20±0.1V
		Single-substrate release voltage	2.7±0.1V
		Rated discharge current	≤200A
		Discharge protection current	500±100A (10mS)
	Short circuit protection	Short circuit protection	200-600 µs
	Communication Function	Support	Confirm with supplier
	Balance	Active cell balancing	Confirm with supplier
LED Indicator	Display content	Voltage/ Capacity%/ Working Temperature
Battery Case	ABS plastic case	With handle
	IP Grade	IP65

Solar backup power system Battery 100Ah rechargeable 48 volt Lifepo4 battery pack

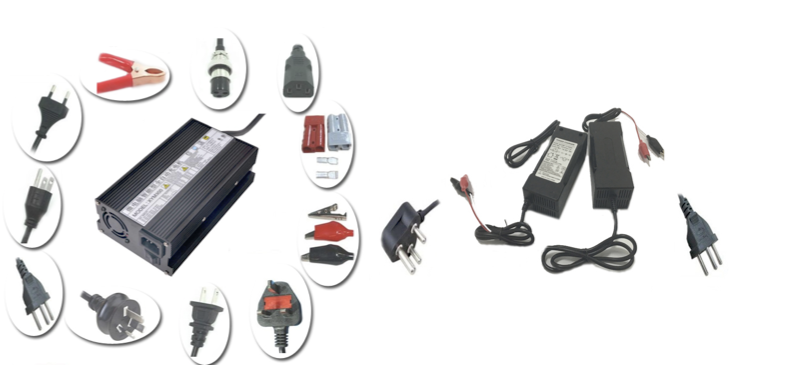

Related battery charger for 12 volt lifepo4 portable solar battery pack

Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:

Lead Acid Replacement LiFePO4 Battery Pack
Voltage	Typical Capacity	Charge	Discharge	Dimension (mm) with case	Weight(Kg)
12V	8AH	0.2C-2C	0.2C-2C	1509265	1.25

12V	10AH	0.2C-2C	0.2C-2C	1509265	1.6

12V	12AH	0.2C-2C	0.2C-2C	1519995	1.8

12V	50AH	0.2C-2C	0.2C-2C	195165175	9.5

12V	100AH	0.2C-2C	0.2C-2C	330175220	19

12V	200AH	0.2C-2C	0.2C-2C	525240215	30

24V	10AH	0.2C-2C	0.2C-2C	18177175	3

24V	30AH	0.2C-2C	0.2C-2C	195165175	12

24V	50AH	0.2C-2C	0.2C-2C	330175220	18

24V	100AH	0.2C-2C	0.2C-2C	485175240	32

48V	10AH	0.2C-2C	0.2C-2C	223106175	7.5

48V	50AH	0.2C-2C	0.2C-2C	522237215	33

48V	75AH	0.2C-2C	0.2C-2C	522237215	42

48V	100AH	0.2C-2C	0.2C-2C	350540160	52

Lifepo4 rechargeable battery packs for other applications.

Why Choose us:

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applie
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Quality Control

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.
