IPC Extender 250M POE Ethernet Switch 24 Port , POE Powered Unmanaged Switch

24 Port POE Switch IPC Extender 250M 24 10/100Mbps POE and 2 Gigabit Combo Ports

Technical Parameter

Product Overview

The 24 port POE switch is an unmanaged AI PoE switch independently. It has 24*10/100M PoE ports and 2*10/100/1000M combo ports . Port 1-24 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W. Port 1-24 can support the PoE watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through the network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, small and medium-sized enterprises form a cost-effective network.

Product Features

● Comply with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

● 24 10/100 POE adaptive RJ45, support automatic flip (Auto - MDI/MDIX)

● 2 gigabit SFP optical fiber ports

● 2 gigabit ethernet ports

● Support 8k MAC address

● IPC Extender 250m the distance from IP camera to switch

● All ports support IEEE 802.3x half duplex flow control and full-duplex mode of back pressure

● Non-blocking switching architecture, full speed forward and maximum throughput filtering data packets

● Support the MAC address learning and automatically adjust the transmission mode and the transmission rate;

● The LED indicates the power, the link and activity, provide the working state of the simple tips and troubleshooting;

● Built-in application power 100-240v AC

● 19 inch standard five diamond shell casing design

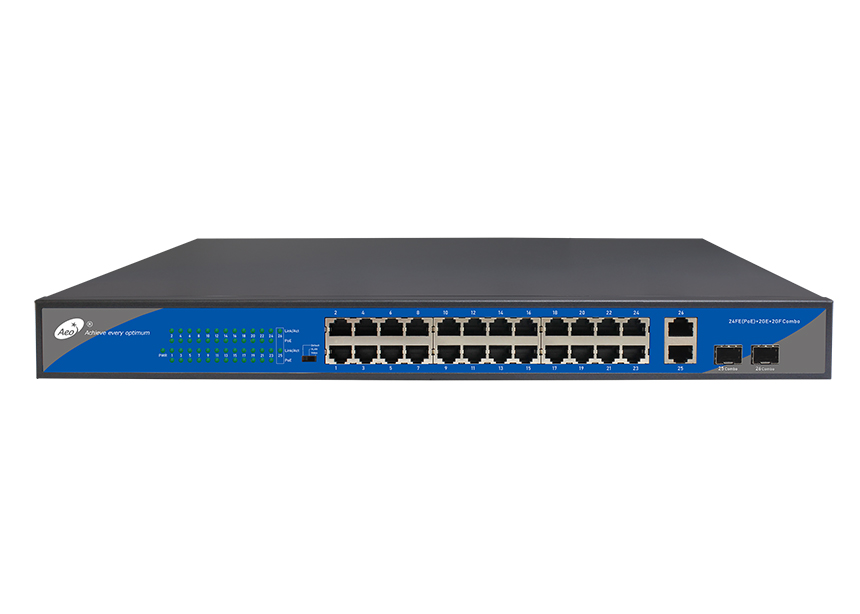

Product picture
