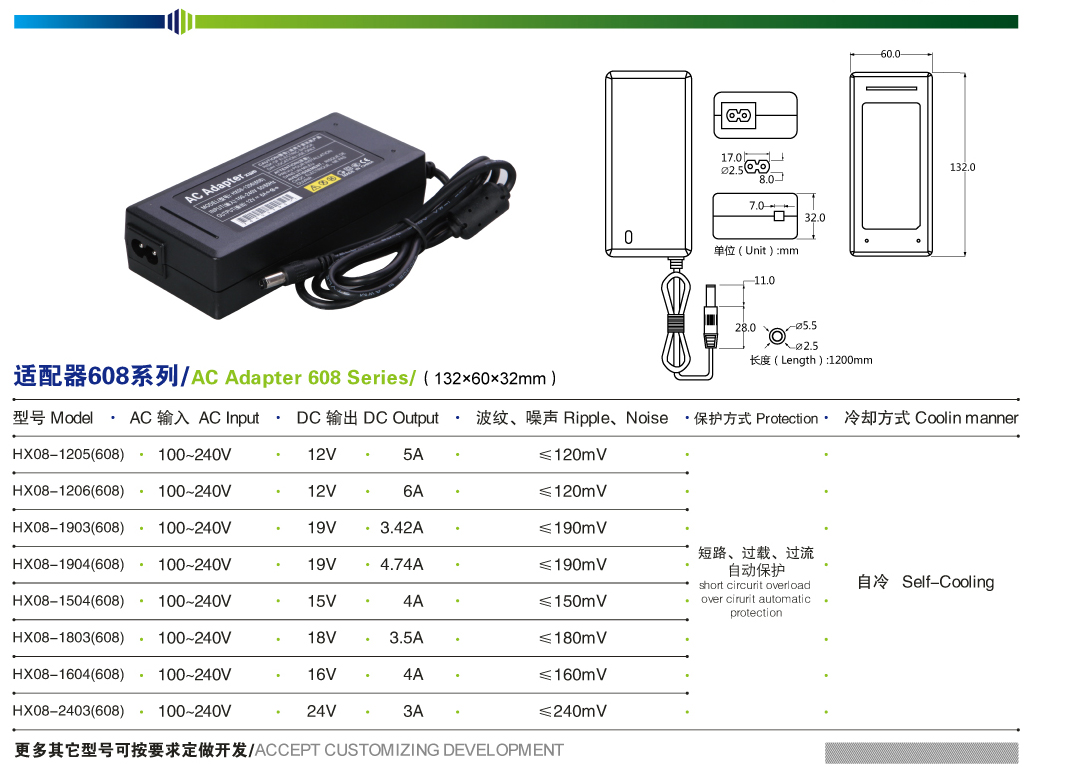

2 Pins 72W 6A universal 12V dC power adapter For LED strip lights

DC 12V5A 12V6A Customized Watts Universal AC DC Power Adapter 2pins

1. *Product Description*:

--Advantages:

1. IP20 indoor use, 100% OEM compatible, 2 years warranty.

2. AC cord available with plug type optional: US plug, EU plug, CN etc.

3. ISO9001:2008 Quality Management system, ensure <1% defectives within 2 years.

4. Constant voltage, single input and output design.

5. Workable from -20 degree to 40 degree.

6. Low output ripple&noise, Low cost, high stability.

7. Protection: over current protection, over load protection, over voltage, short circuit protection.

8. 100% full load burn-in test before delivery.

9. NO MOQ, regular stock, quick delivery.

10. Application: Laptop, Desktop, Computer, Camera, CCTV etc.

1. Output Characteristics:

1.1 Output Power

1.2 Line Regulation

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when

measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

1.4 Turn on delay time: 2 Seconds Max. at 220Vac input and output Max. load.

1.5 Rise time:400 mS Max. at 220Vac input and output Max. load.

1.6 Overshoot: 5% Max. When power supply at turn on or turn off.

2 Protection Functions:

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3 Test: Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

4 Safety Requirement:

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:

Primary to secondary:1200Vac/10mA/60S for type test.

Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5 EMI Requirement:

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003

2. *Related Products*:

--Whoosh Power Supply Ensures Stable Quality:

3. *Packaging & Shipping*:

--Regular packing: Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).

--Shipping:

4. *Company Information*:

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.

--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.
