RJ45 Connector PVC Jacket UTP FTP Indoor Cat5e Patch Cord , 10m Cat5e Ethernet Cable

Categories	Cat5e Patch Cord
Brand Name:	OEM/ ODM/ YUEXIANKE
Model Number:	UTP CAT6
Certification:	ETL/ CE/ UL/ ANATEL/ RoHS
Place of Origin:	Guangzhou,China
MOQ:	5000 Pcs
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:	6000 Boxes/Day
Delivery Time:	15-20 Work Day
Packaging Details:	400 pcs/box
Model Number::	CAT5E Patch Cord
Color::	9 colors available
Fire Rating::	CMX/ CMG/ CM/ CMR/ CMP
Connector::	Gold-Plated
Material::	7*0.12mm BC/CCA
Type:	Cat 5e
Length:	1m/2m/3m/5m/10m/15m/20m/30m/40m/50m
Jacket:	PVC/LSZH

Contact Now

Add to Cart

Company Info.

Guangdong Jingchang Cable Industry Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

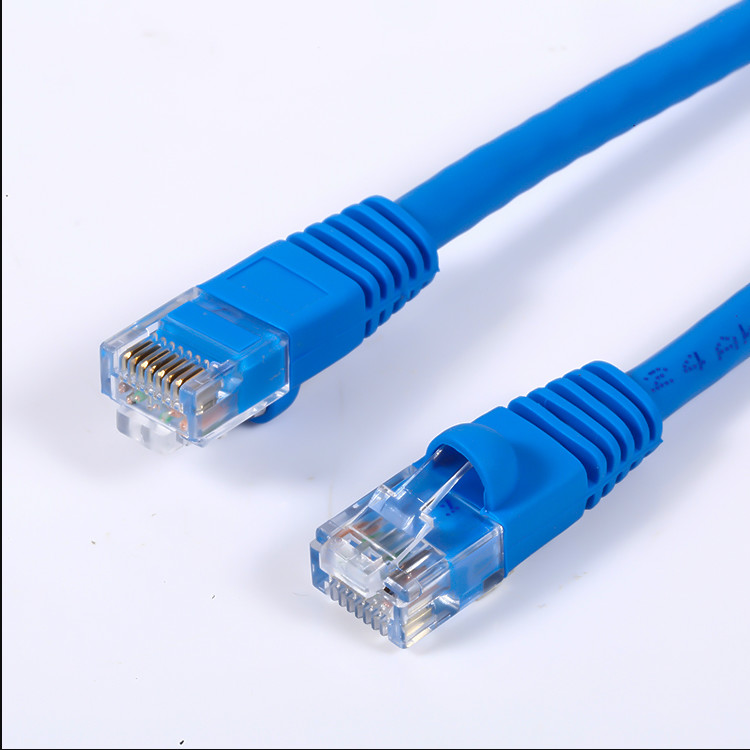

RJ45 Connector PVC Jacket UTP FTP Indoor Cat5e Patch Cord , 10m Cat5e Ethernet Cable

Computer Use RJ45 Connector PVC Jacket Copper Wire Cat 5e 6 Cat5e Cat6 UTP FTP Indoor Network Cable Patch Cord

Product Description

Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

Application:

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power

plant, householdelectrical applance,insurment and telecommunication equipment.

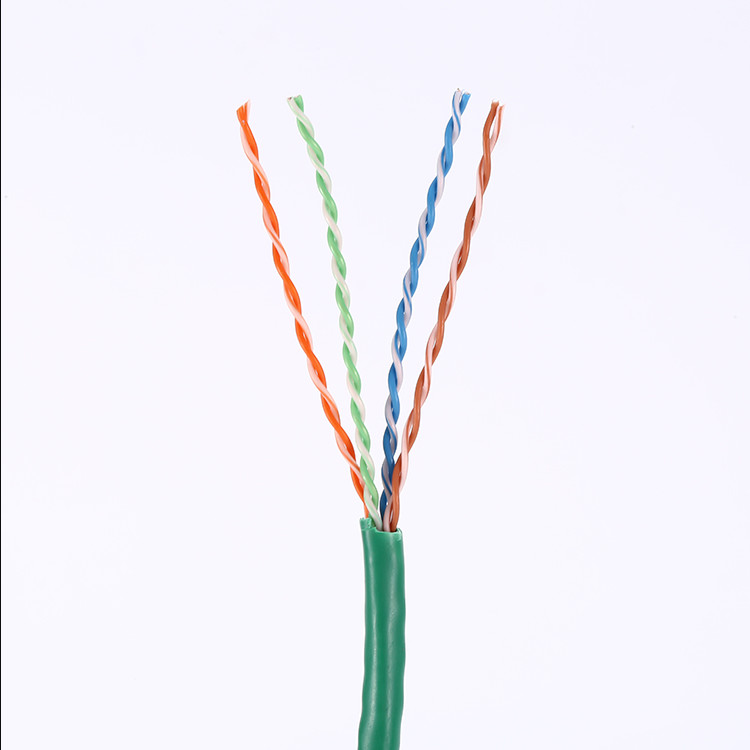

U/UTP Cat 6(lndoor)

Anti-Crosstalk Divider	LDPE:4.5*0.3
Cable Shield(Aluminum Foil)	Tick:0.060mm,Extent:25mm
ESD Drain Wire	O.5TC
Nilon Rip cord	150D
Max.capacitance unbalance(pF/100m)	≤330pF /100M(Per TIA/EIA-5688.2)
Max.capacitance unbalance(pF/100m)	≤60pF/100(Per IEC 61156)
Nominal Velocity of Propagation	72%
Max.Delay Skew(ns/100m)	≤45ns/100m
Max.Conductor DC Resistance 20Deg.C	9.38Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C	≤5% (per TIA/EIA-5688.2)
Max.DC Resistance unbalance 20 Deg.C	≤2% (per IEC 61156)
Characteristic lmpedance(O) 4~100MHz	100±15
Operating Temp.Range	-20~70 ℃
Max.Recommended Pulling Tension	110N
Min.Bend Radius(lnstall)	8XO.D.
Flame Test	CM

F/UTP Cat 6e(lndoor)

Anti-Crosstalk Divider	LDPE:4.5*0.3
cable Shield(Aluminum Foil)	Tick:0.060mm,Extent:25mm
ESD Drain Wire	0.5TC
Ni Ion Rip cord	150D
Max.capacitance unbalance(pF/100m)	≤330pF/100M(Per TIA/EIA-568B.2)
Max.capacitance unbalance(pF/100m)	≤60pF/100{Per IEC 61156}
Nominal Velocity of Propagation	69%
Max.Delay Skew(ns/100m}	≤45ns/100m
Max.Conductor DC Resistance20Deg.c	9.38Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C	≤5% (perTIA/EIA-568B.2)
Max.DC Resistance unbalance 20 Deg.C	≤2% (per IEC 61156)
Characteristic lmpedance(O) 4"1.00MHz	100±15
Operating Temp.Range	-20~70℃
Max.Recommended Pulling Tension	110N
Min.Bend Radius(lnstall)	8xO.D.
Flame Test	CM

FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well
.
