| Categories | Wire and Cable Products |
|---|---|
| Brand Name: | HH |
| Model Number: | ABC cable |
| Certification: | CCC,CE |
| Place of Origin: | GUANGDONG,CHINA |
| MOQ: | 1000 meters |
| Price: | 10 USD/meter |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15000 Kilometer/Kilometers per Month |
| Delivery Time: | 7-15 days |
| Packaging Details: | drum |
| application: | outdoor |
| Conductor Material: | Al, Al Alloy, ACSR, Alu & Alloy&ACSR |
| Jacket: | PVC/PE/XLPE |
| standard: | ASTM, AS, BS, DIN, IEC, NFC |
| voltage: | 0.6/1KV |
| Type: | low voltage |
| sample: | provided |
| Number of Cores: | 3/4/5/6 |
Overhead Electric Transmission Aerial Bundled Cable abc cable
1.Application
a.Overhead abc cables are mainly used for 600V overhead auxiliary power distribution lines.
b.It is not an electrically insulated conductor and is usually regarded as a bare conductor during installation.

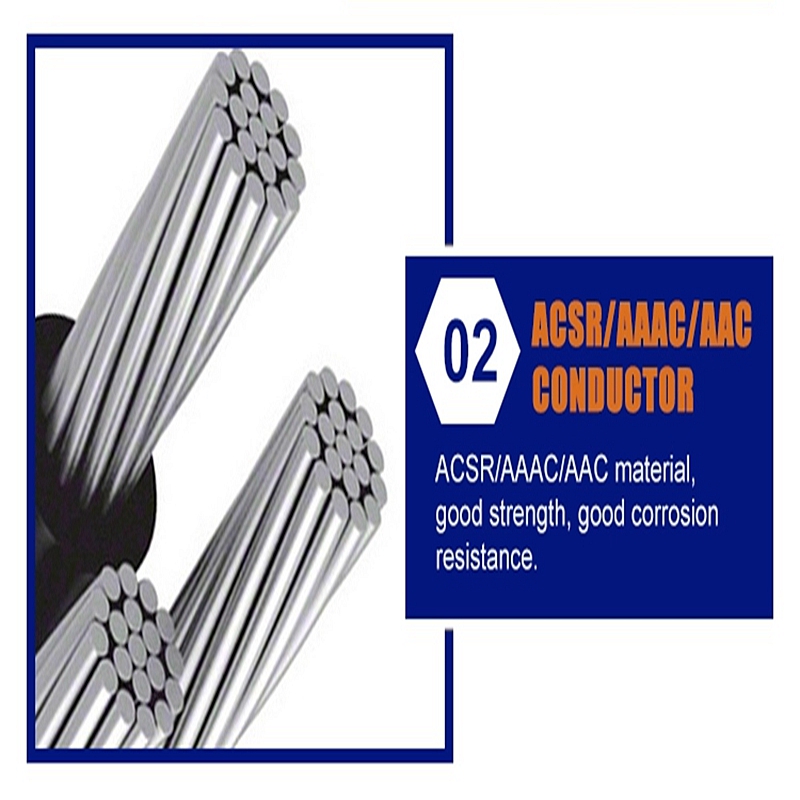

c.The conductor is 1350-H19 aluminum wire, 6201-T81 aluminum alloy or ACSR conductor, concentric stranded wire and polyethylene
d.high density polyethylene (HDPE) or cross-linked Covered with polyethylene (XLPE) to protect against wind and rain.
2.Product details

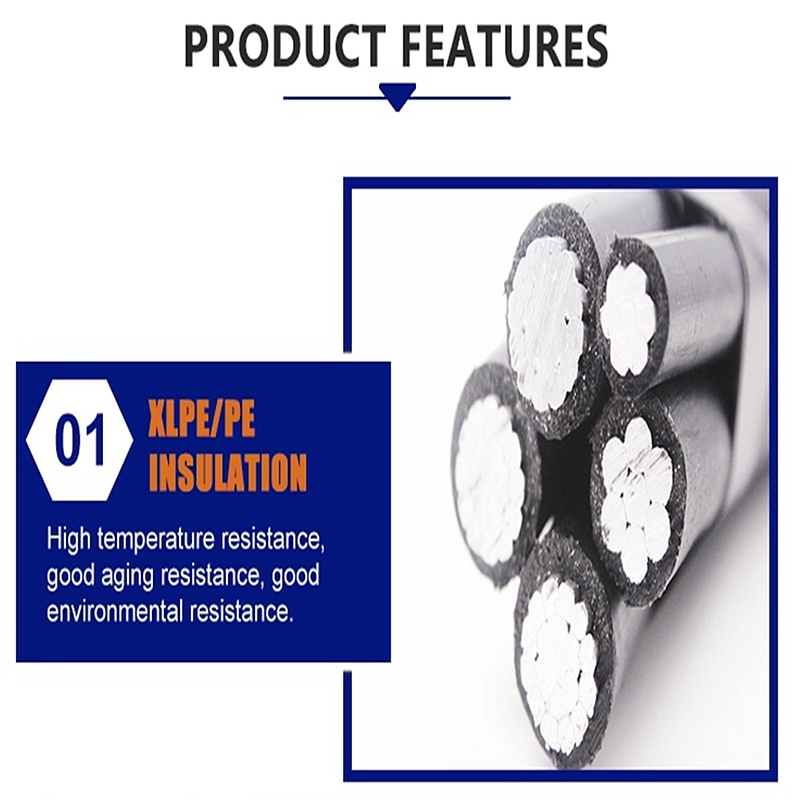

Insulation Material:PE /XLPE /PVC
Type:LOW VOLTAGE
Application:Power Transportation, Overhead Transmission
Conductor Material:Al, Al Alloy, ACSR, Alu & Alloy&ACSR
Jacket:N/A,XLPE/PE/PVC
key words:abc cable
Standard:ASTM, AS, BS, DIN, IEC, NFC,
Package:wooden and steel-wooden drum
Voltage:0.6/1kv
Number of Cores:6
3.Product Parameters
| Rated voltage | 0.6/1kv | Specification | ABC | ||||||
| Structure | |||||||||
| AWG or kcmi | Carrying wire core(acsr) | Phase conductor | insulation | ||||||
| Steel | Aluminium | Aluminium | xlpe | ||||||
| No. | Dia. | No. | Dia | Dia | No. | Dia | Dia | ||
| 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 |
| 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 1.55 | 1.14 |
| 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 |
| 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 |
| 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 |
| 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 |
| 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 |
| 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 |
| 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.4 | 1.52 |
| 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.9 | 2.03 |
| 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.9 | 2.03 |
4.Packaging Details
1. In roll
2. In wooden drum:700*300*600*700
1100*400*700*800
1100*400*1000*1100
1200*500*1000*1100
3 In steel wooden drum: 1800*900*950*1100
2000*1000*950*1100
2200*1100*950*1100
5.Lead Time:
| Quantity(Meters) | 1-50000 | >50000 |
| Est. Time(days) | 5 | To be negotiated |
6.What is important to us ?
1.Quality, our engineers work with service colleagues.We are
committed to enabling engineers to learn more about customer
feedback from the service team.
2.Customers' comfortable purchasing experience.We pay attention to
the actual needs of customers, and hope to bring customers
high-efficiency products and intimate service, our services cover
pre-sales and after-sales, committed to let customers save time and
cost, and reduce worries
3.Customers' success.We not only focus on the sales of products,
but also pay attention to the development of our customers. We
pursue growing together with customers by providing long-term
support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
|
