| Categories | TFT LCD Touch Screen |
|---|---|
| Brand Name: | SUNMEG |
| Model Number: | LX15430LX-30 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | China |
| MOQ: | 5 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 60K pcs/month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Standard export package |
| Product name: | LCD TFT Display |
| Interface: | Spi 4-Line |
| LCD Size: | 1.54 inch |
| HS Code: | 9013803010 |
| Resolution: | 128*128 |
| Brightness: | 350CD/M2 |
| Transport Package: | Foam Slot/Tray in Carton or Customized Package |
| Active Area(mm): | 25.5*26.5mm |
Our products are 100% Visual and Function test before shipments. Meanwhile, All
our products must pass necessary tests, Store and Operate in High and Low
Temperature & High Humidity Environment, ESD and anti-interference test ,
Drop and Vibration Test. Our experience and proficiency make the qualification
rate always being 99.7% or above.

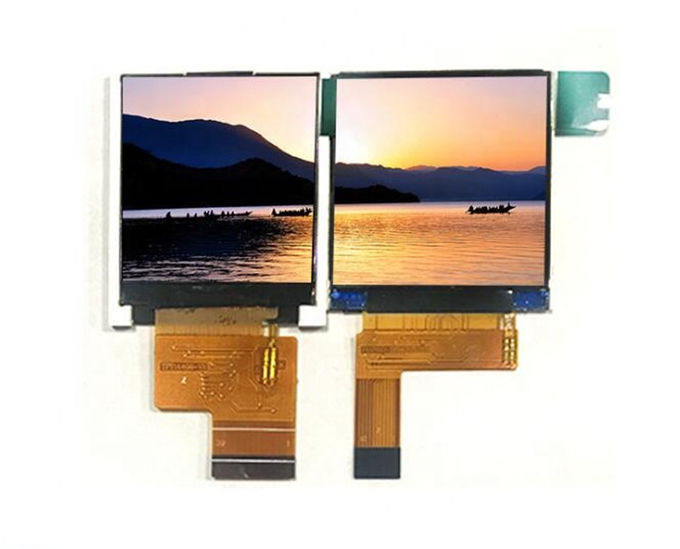

| Product name: | TFT Displays |
| Resolution: | 128*128 |
| Outline Dimension: | 31.52*33.72*1.73mm |
| LCD Active Area(mm): | 25.5*26.5mm |
| Interface: | SPI 4-line |
| Viewing Angle: | free viewing angle |
| Driving IC: | ST7789V2 |
| Pixel Pitch (mm): | 0.1992(W)×0.207(H) |
| Pixel Configuration: | R.G.B. Stripe |
| FPC type: | ZIP |
| Operating Temperature: | -20 to +70ºC |
| Storage Temperature: | -30 to +80ºC |
| Brightness: | 350Cd/m2 |
| Warranty: | 12 months |
FAQ:
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging,
small and medium size use knife card isolation packaging, large size screens are used
in aircraft box packaging, all packages are protected by outer box
and strapping to ensure the safety of material transportation.
Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the
minimum purchase quantity
constraint.Mold fee for all kinds of products are not the same, the
general principle is: LCD mold fee category: TN was low,STN was
high.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special
requirements, any Drawing or Specification---Our engineers
will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval
We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small
quantity of trial order (if required)---We do mass production.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
|
