100 watt 150 watt 200 watt high lumen smd integrated ip66 street led road lamp

LED street light or road lamp is an integrated light-emitting diode (LED) light fixture that is used for street lighting, These are considered integrated lights, and the led modules and the fixture are not separate parts. In manufacturing, the LED chips are sealed on a panel and then assembled to the LED panel with a heat sink to become an integrated lighting fixture.

Overview

Super High-Performance Price Ratio

Higher efficacy LED by Lumileds, Bridgelux, or San’an chip. China's famous driver brands SOSEN, INVENTRONICS, and ZHIHE. More convenient for installation and maintenance.

Multiple Configurations Optional

10KV SPD is optional. the Glass cover is optional.

Photocell, timer dimming, DALI, 0-10V dimming is optional.

Intelligent control system with 7 PIN NEMA interface is optional.

Wider Application

GY3614LD series LED street light will provide a better lumen output, better stability, and a very long lifetime. Provide 5 years warranty for the whole fixture. It can be applied to streets, roads, highways, squares, parks, and parking lots.

Product Features of GY3614LD LED Street Light

1.High pressure die-cast aluminum alloy housing from 30W to 280W.
2.Substantial friction-resistant powder spraying process surface treatment.
3.Adopt multi-chip package 5050 LEDs. Stable performance, flip chip technology, single unit’s damage won't affect others' normal work.
4.Smooth back, self-cleaning design tempered glass cover.
5.Optical lens design. Type II-M, III-M, IV-S optional. Uniform lighting distribution applies to different lighting projects.
6.Excellent operating temperature -40~50°C

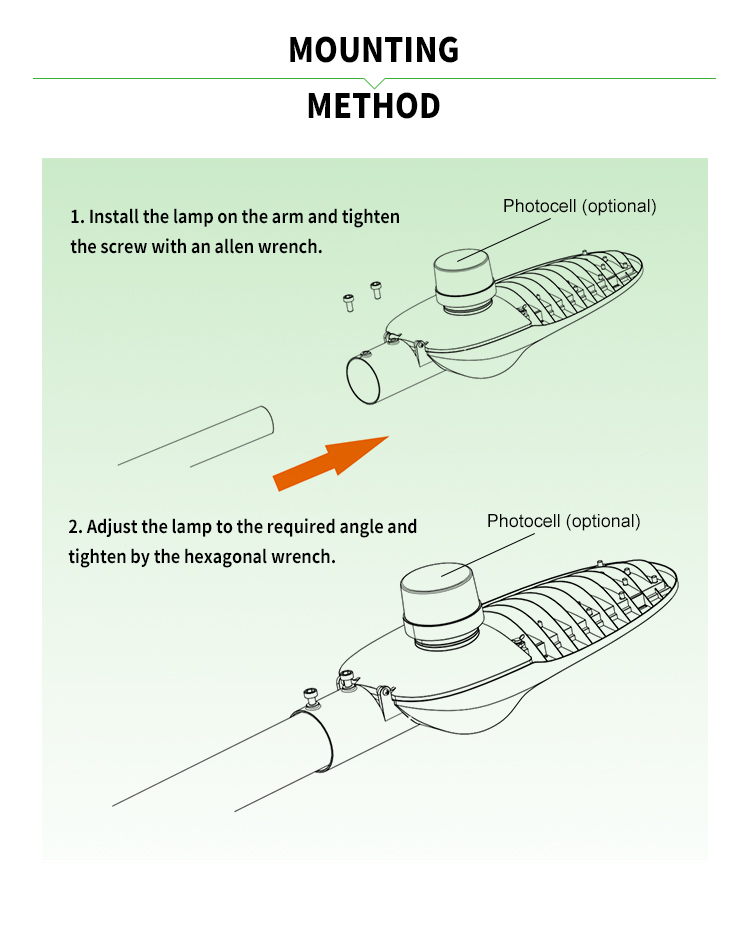

7.-15~15° adjustable bracket applicable different mounting arm.
8.With excellent housing design reaches IP66/IK08 rating.
9.Automatic cut-off design.10KV SPD.
10.Dimming and smart lighting system available upon request.
11.Long service life over 50,000 hours, 5 years warranty.

LED CHIPS
IP65, 3 years warranty or 5 years warranty
Lumileds led high luminous efficiency and long lifespan
Diffuser with 4.00mm/5.00mm super white toughened glass.
High brightness LEDs

CREE
OSRAM

BRIDGELUX

High thermal conductivity aluminum plate
High transmission Len UV Resistance

PC material lens
PC material lens has high transmittance and low light attenuation. Compared with a glass lens, it is not easy to damage.

Protection level IP65
Silica gel ring core sealing technology is used to achieve waterproof and dust-proof, which is suitable for outdoor harsh environment.

Fin Heat Dissipation Technology
Efficient aluminum fin heat dissipation technology, the surface using powder baking process, fashion appearance, excellent
corrosion resistance.

Light follows the heart
6 different scaffolds are available for flexible application in various scenarios. The bracket can be adjusted at 180°with a clear
scale, flexibly adjusting the angle according to different needs.

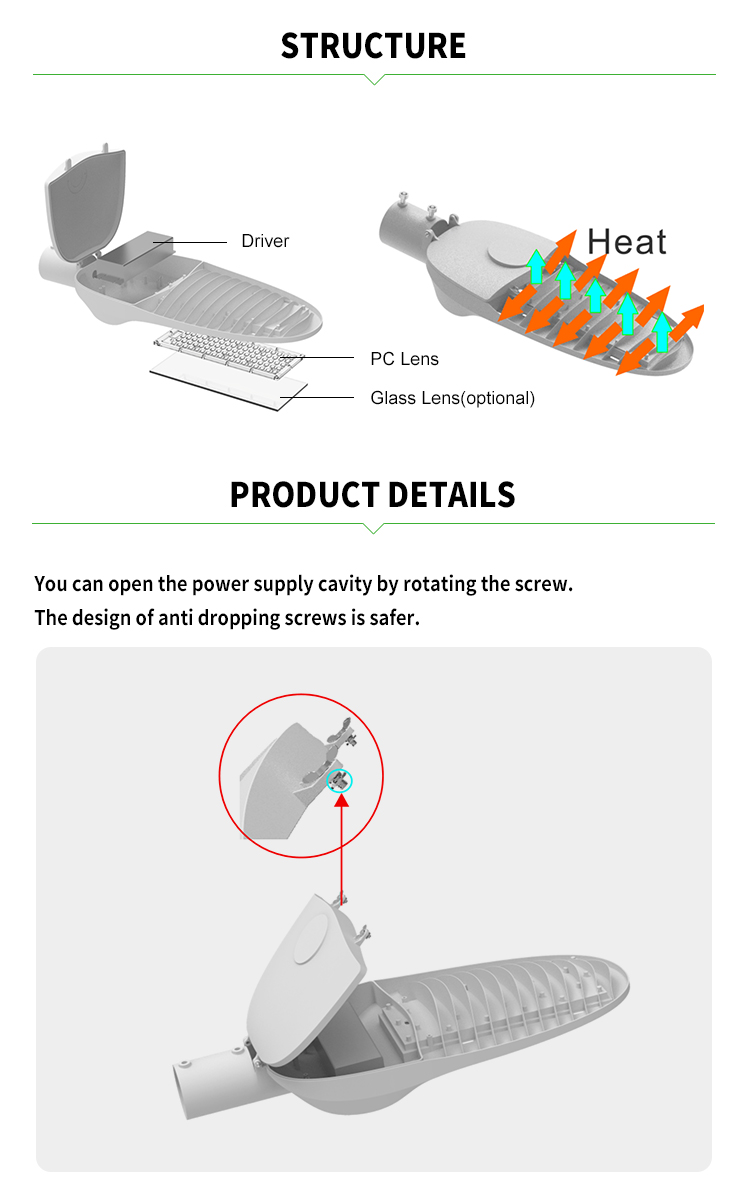

Housing
Die-casting aluminum body with powder coating and anti-corrosion treatment
Excellent heat radiation, optical and electrical ability
