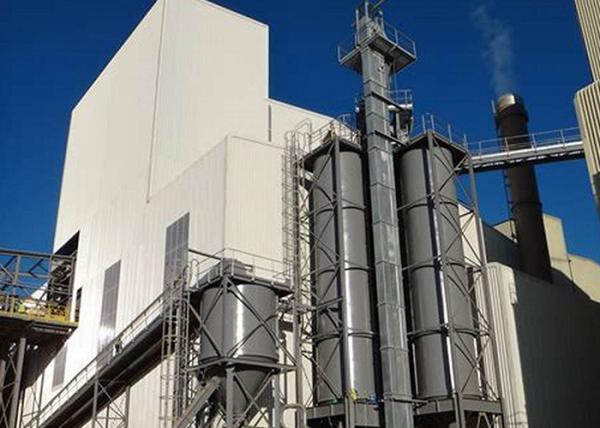

380V Glass Batch Plant

Full Automatic Control ,Glass Batch Plant, Material Mixing And Batching

1. Brief introduction

In order to improve the production efficiency, if the granularity composition of raw materials can not meet the physical-chemical properties and processing property of glass product, the raw materials will be required to be pretreated before batching.

Reasonable granularity composition of raw materials can reduce the chemical component fluctuation to the lowest limit and increase the mixing homogeneity of batched glass materials, which is beneficial to improve the melting rate of the materials and homogenizing speed of glass liquid.

The materials used for glass making are called glass raw materials. Based on the different quantities and functions, the materials are divided into main raw materials and auxiliary ones.

2. Main type of raw materials

3. Types of auxiliary materials

4. Arrangmment type of batch plant

• In-Line type

Silos arrange on one line.

The materials convey to mixer by belt conveyor after discharge from the scale hopper.

The mixing room is separatly arranged.

Material loading system is arranged on one line.

• Tower-type

Mixer, scales and silos are vertically arranged.

The scales are connected with the mixer directly.

The material loading system for big capacities of batch need to load the materials from various directions.

5. Material feeding device

• Hopper
• Pneumatic hammer
• Sensors
• Material discharging device
• Instrument and control system

6. Main equipment of batch plant

• Scrubbing machine

Simple structure

High crushing efficiency, energy saving and environment protecting.

It can crush medium hard and ultrahand materials, such as corundum, sintering bauxite.

• Hindered settler

Hindered settler is used for classifying silica sand or other mining coarse and fine particle, it adopts to classify the mineral with different gravity and replace the fine screen for force control.

There is a special device in the water tank under the cylinder bottom. When water outage, the water hole will close automatically, to avoid the materials in the cylinder blocking the hole and enter into the water tank.

• Desliming hopper

Desiliming hopper also calls circular cone, it is a simple classification, desliming and thickening device.

• Hydraulic classifier

Hydraulic classifier is a particle classifying unit and system equipment in mineral classifying professional area.

• Dust collector

Bag-type dust collector is a kind of high-efficiency special purification equipment, which is suitable for the top of power plant ash warehouse, powder warehouse, etc.

• No mechanical damage
• Large air volume
• High dust removal efficiency
• Long service life of the bag
• Stable long-term operation
• Beautiful appearance of the whole machine
• Easy installation and maintenance.

• Mixer

Mixer is a kind of mechanical equipment that could mix two or more types of materials homogeneous together.

• Bucket elevator

The bucket elevator consists of upper section, lower section, intermediate section, deriving section and operation section.
