XF: Apply to Tube, Bulb, Panel light, Down Light and ect. For SMD Mounting Machine

Categories SMD Mounting Machine
Brand Name: ETON
Model Number: HT-XF
Certification: CE CCC ISO
Place of Origin: China
MOQ: 1
Price: US $75,000-76,000 / Units
Payment Terms: T/T
Supply Ability: 50
Delivery Time: 15 days
Packaging Details: Standard export package(It also can be adjusted according to customer's requirement)
Dimension: 2700*1900*1530 mm
Total weight: 1300 KG
PCB Thickness: 0.5-5 mm
Mounting speed: 150000-170000 CPH
Feeding way: Electronic feeder
Power: 220 AC 50HZ
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XF: Apply to Tube, Bulb, Panel light, Down Light and ect. For SMD Mounting Machine

Company Information

Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.

Quality Principle:

Quality First, Client-oriented,

Continuous Improvement!

Product Description


1.Features

Double module professional high speed mounter

Apply to the 0.6M,0.9M,1.2M LED hard board 0.5M, 1M LED soft lamp strip 17 nozzles for each mounting part, part A of B can be mounted separately of synchronously.

Correction automatically, high precision, available for RGB

Global first technology patent: counterfeiting not allowed

IPC 9850 Capacity:150000-170000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0


Technical Data

DimensionLength2700MM
Width1900MM
Height1530MM
Total Weight1300kg
PCBPCB length widthMax:330*1200 mm Min:80*120 mm
PCB thickness0.5~5mm
PCB ClampingAdjustable pressure pneumatic.
Mounting ModeGroup to pick and group to mount
O.S.systemWindows7
softwareR&D independently
DisplayLED Monitor
Input DeviceKeyboard, Mouse
Feeding systemNo. of feeders34PCS
Feeder typeElectronic feeder
Vision SystemNo. of Camera5 sets of imported camera
Vision for the flight identification + MARK correction
Mounting Precision±0.02mm chip
Mounting Height<15mm
Mounting Speed150000-170000CPH(optimum)
ComponentsLED 3017/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space0.2mm
Power220AC 50HZ
Power Consumption5 kw
Operating Environment23℃±3
Conveyor TransmissionMax Length:1200 mm
Transmission Speed>500mm/sec
Transmission DirectionSingle(left→right or right→left)
Transmission ModeOnline drive
Air pressure>5.0kg/cm2
Air consumption<100 L/min
Electrical controlIndependent research and development by ETON
Motion control card module 2 setsIndependent research and development by ETON
X,Y Axies DrivingServo motor control for X, Y, Z axies.

Packaging & Shipping


We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.

Our Services


Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.

Buyer Feedback

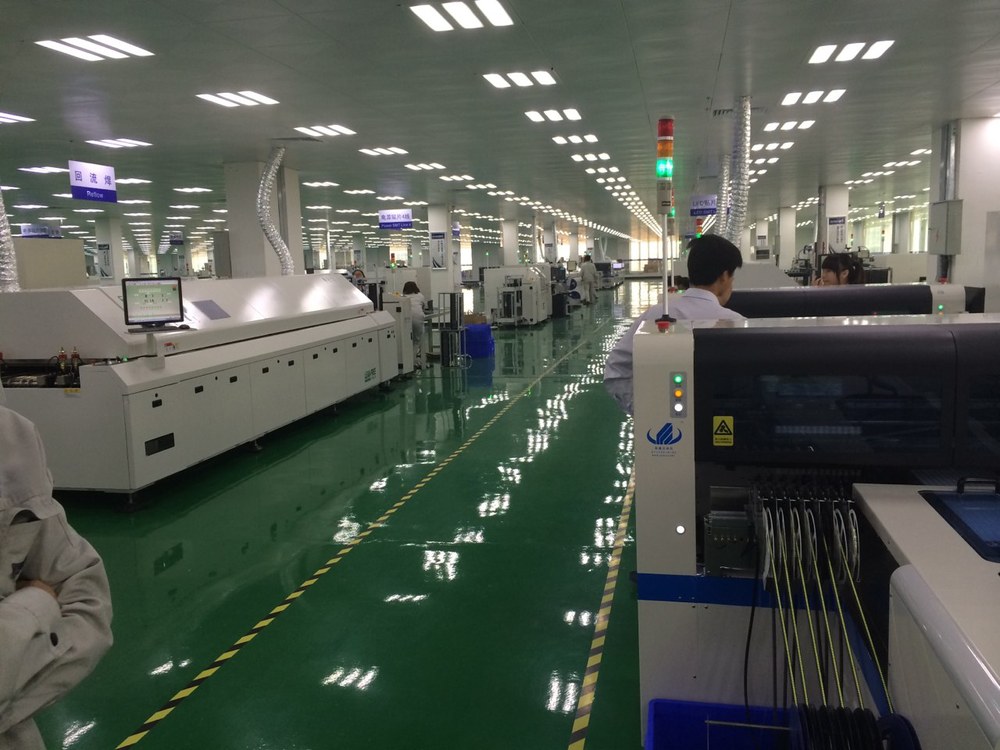

Many high speed mounter—one reflow oven.


FAQ

Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.
