40W Mechanical Solenoid Lock Full Height Turnstile with 30person/min Speed for Secure Access Control

40W Mechanical Solenoid Lock Full Height Turnstile - 30 Person/Min Capacity
Stainless Steel Automatic Security Access Control Turnstile
The full height turnstile features a robust mechanical design with solenoid locking to provide reliable, unsupervised access control for offices and buildings. This intelligent pedestrian management system ensures secure entry while preventing unauthorized access to restricted areas.
Product Overview
Users gain authorized passage by presenting valid credentials to the access control system. Upon verification, the turnstile unlocks and permits directional passage. Compatible with card readers, push buttons, fingerprint scanners, and facial recognition systems.
Constructed from tailored stainless steel for elegant appearance, durability, and corrosion resistance. Built-in standard electrical interfaces support integration with magnetic cards, barcodes, and RFID systems for organized access management.
Emergency fire safety interface ensures free entry/exit operation during power outages or fire emergencies.
Key Features
  • Low-noise mechanism with exceptional cost-performance ratio
  • Precision sensing positioning reduces mechanical impact for extended lifespan
  • High operating efficiency with 1-2 second open/close cycles
  • Ultra-quiet operation under 30dB in all modes
  • Self-diagnostic system with maintenance alarm warnings
  • Automatic reset cancels authorization if passage is delayed
  • Anti-following technology prevents unauthorized tailgating
  • Anti-pinch safety feature stops wings upon obstruction
  • Automatic wing locking when no open signal is received
  • Multiple passage configurations for diverse application requirements
  • Programmable control for passage timing, speed, and parameters
  • Remote computer management capabilities
  • Customizable options: LED displays, voice guidance, warning lamps, indicator lights, audible/visible alarms
Technical Specifications
Basic Parameters
Dimensions2300 * 1370 * 2300 mm
Cabinet Material38mm round tube, 1.2mm Mild steel or SS304/316 stainless steel
Channel Width600mm
Ambient Temperature-20°C to 60°C
Working EnvironmentIndoor and outdoor (with canopy)
Technical Parameters
Input Voltage100V-240V
Driving Voltage24V
Equipment Power40W
Response Time0.2 seconds
Passing Speed30 people per minute
Communication InterfaceRS485
Communication DistanceLess than 1200m
Open Brake Signal InputDry contact
Switching Door TimeLess than 1 second
Product Images

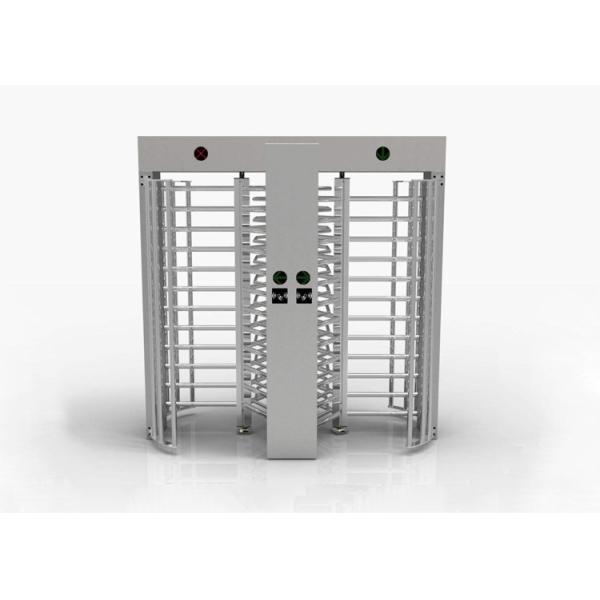

Full height turnstile installation showing complete unit with stainless steel construction Close-up view of mechanical solenoid lock mechanism and turnstile wings
Optional Control Systems & Interfaces
  • Card readers for various credential types
  • Integrated metal detection systems
  • Electronic and LCD people counters
  • Fail-open or fail-secure locking configurations
  • Push-button controls and wireless remote operation
  • Manual key override in both directions
  • Custom indicator lights and status displays
