64 Inch Computerized Multi Needle Quilting Machine For Clothing

1200rpm Computerized Multi Needle Quilter 64 Inch For Clothing

Description

D series computerized lock stitch multi needle quilter (quilting) machine is the upgrade model based on model C series. It has below upgraded place.

Exterior: Machine body and beam are reinforced.

Parts: core bearings adopt imported bearings, conveyor belts to replace triangle belt, encoders replace optocoupler.

Motors: adopt Japan famous brand big power servo motor.

Software: use new upgraded software.

Function: speed higher, compatible to embroidery designs, automatic oil refueling.

Parameter

Features

1. Fuselage and beam and foot are reinforced, which help machine works more stably with high speed..

2. Needle bar running with needle bar frame,no need to add extra lube, avoiding the materials be soiled by lube.

3. Firm and durable needle bar frame structure , so that it can reduce the cost of maintenance.

4. X and Y axis are driven by servo equipment. Principal axis adopts the frequency conversion device

5. The automatic oil refueling function can extend the machine lifetime.

6. Adjust speed by computer 500r-1200r/min, set different stitch length(2mm-8mm) from computer .

7. New computer system, compatible to embroidery designs. Multi-span independent pattern (360°and 180° patterns are available).

8. When work with thick material, compensation function can solve the problem for looping pattern.

9. Auto stop sensor detect thread condition, when thread broken, machine automatically stop.

10. When hand block the infrared system , machine will auto stop, which makes your operation safer.

11. Easy to draw new desig by mouse and it can connect usb disk to copy new design.

12. Ringing notice and infrared system, which can make the operation safer.

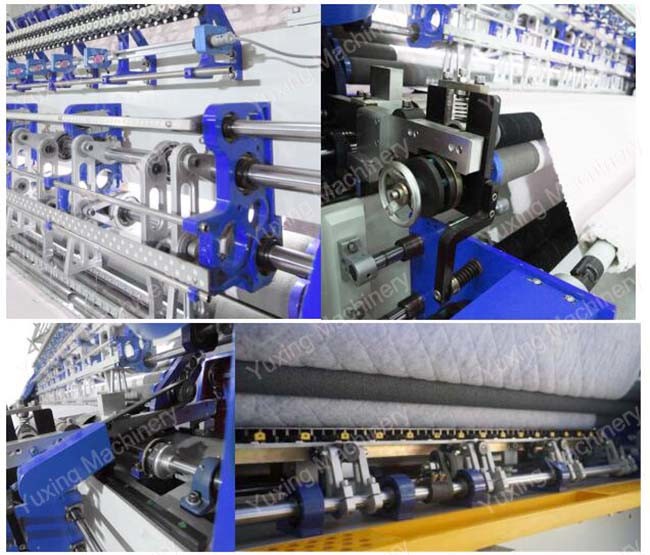

Detailed picture

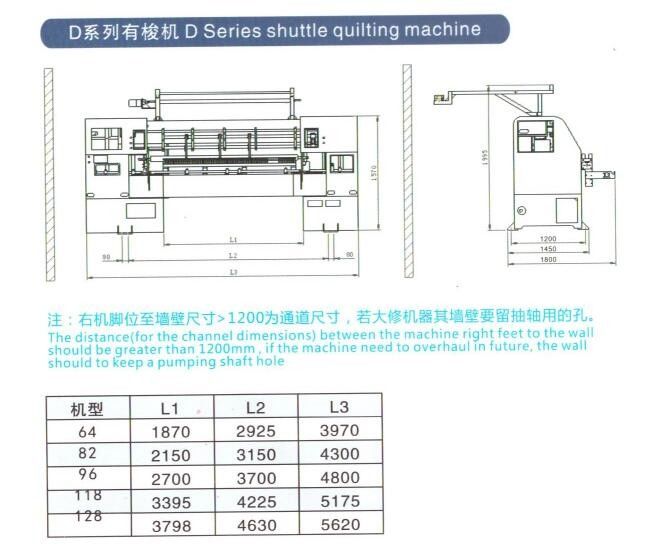

Installation layout

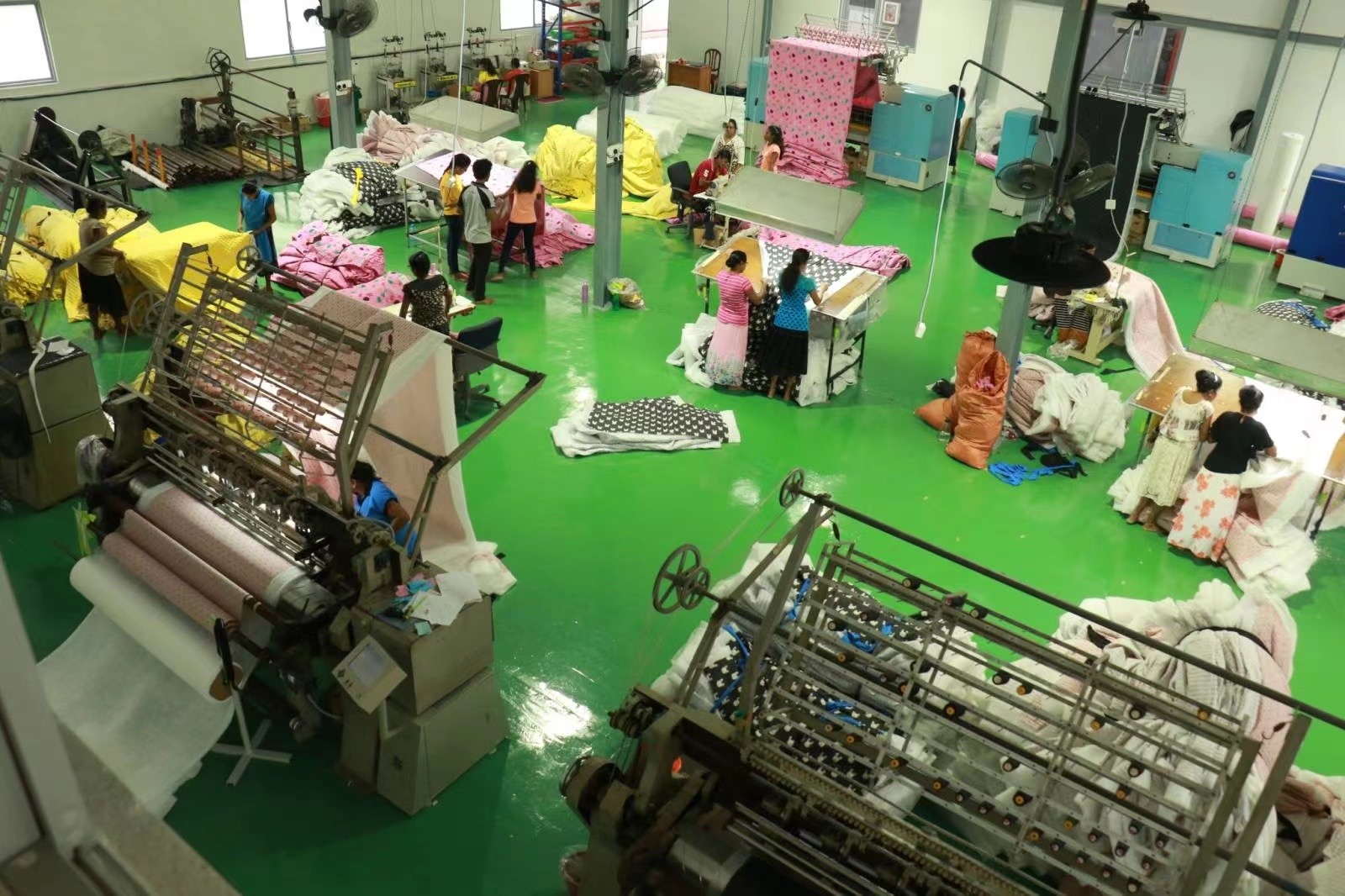

Customer's factory

Yuxing group is one of the leading manufacturer of China in the field of quilting machine industry. Our company produces: computerized shuttle multi-needle quilting machine, computerized non-shuttle multi-needle quilting machine, computer single needle quilting machine, computerized quilting embeoidery machine, cutting machine, bobbin winder, with more than 10 kinds of products. It’s a collection of scientific research and development, processing and manufacturing, sales operations, after-sales service as one of the professional quilted embroidery equipment production and precision parts processing enterprises.

Dongguan Yuxing: Head quater of Yuxing group.

Hunan Yuxing: New factory. Located in Hunan province.

Shenzhen Yuxing: mainly produce parts
