Microcomputer Control Edge Crush Tester Machine

Microcomputer Edge Crush Resistance Tester Paper Testing Equipments

Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test.

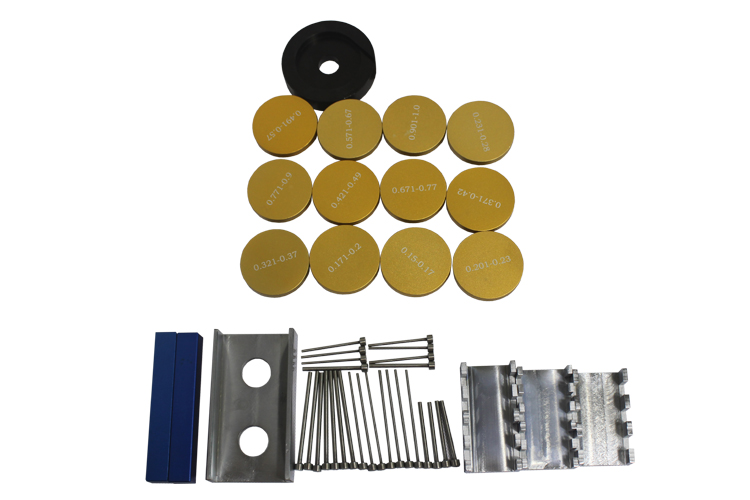

We also have the accessories for its each test.

Standards:

ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011

Feature:

1. Microprocessor control, automatically carry the test according to testing requests.

2. Protect press sensor through the protection switch for over- loading.

3. Analyzing the group of testing data and to show the maximum, minimum, average,

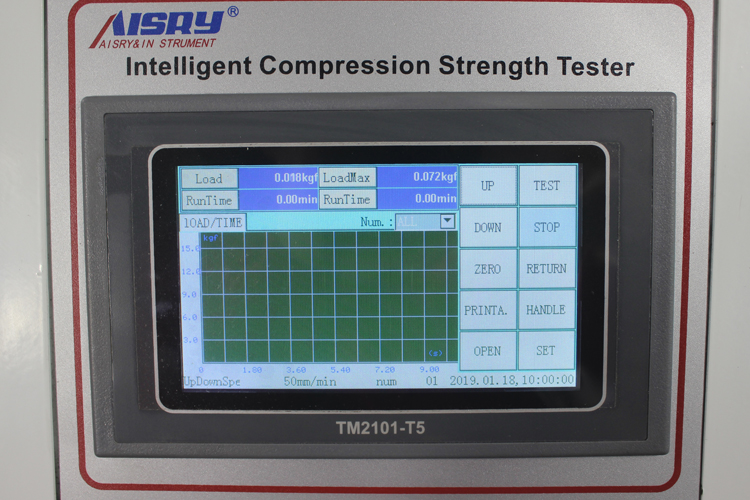

4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data.

Technical Specifications:

Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test

The technical parameters of the edge pressure test sampler:

The maximum thickness of sample:18mm

Standard length of sample: 100(80)mm±0.5 mm

Standard width of sample: (25±0.5)mm

Outline dimension: 390mm(length)×350mm(width)

Product net weight: ≤9.0kg

Product gross weight: ≤13.0kg

Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.

The main technical parameters of the ring pressure test sampler:

The sampling size: 152mmX12.7 mm

The sampling thickness: (0.1~1.0)mm

Outline dimensions (length X width X height),mm:380*120*250

Weight: about 10kg

Feature: Punching sampling, high sampling accuracy
